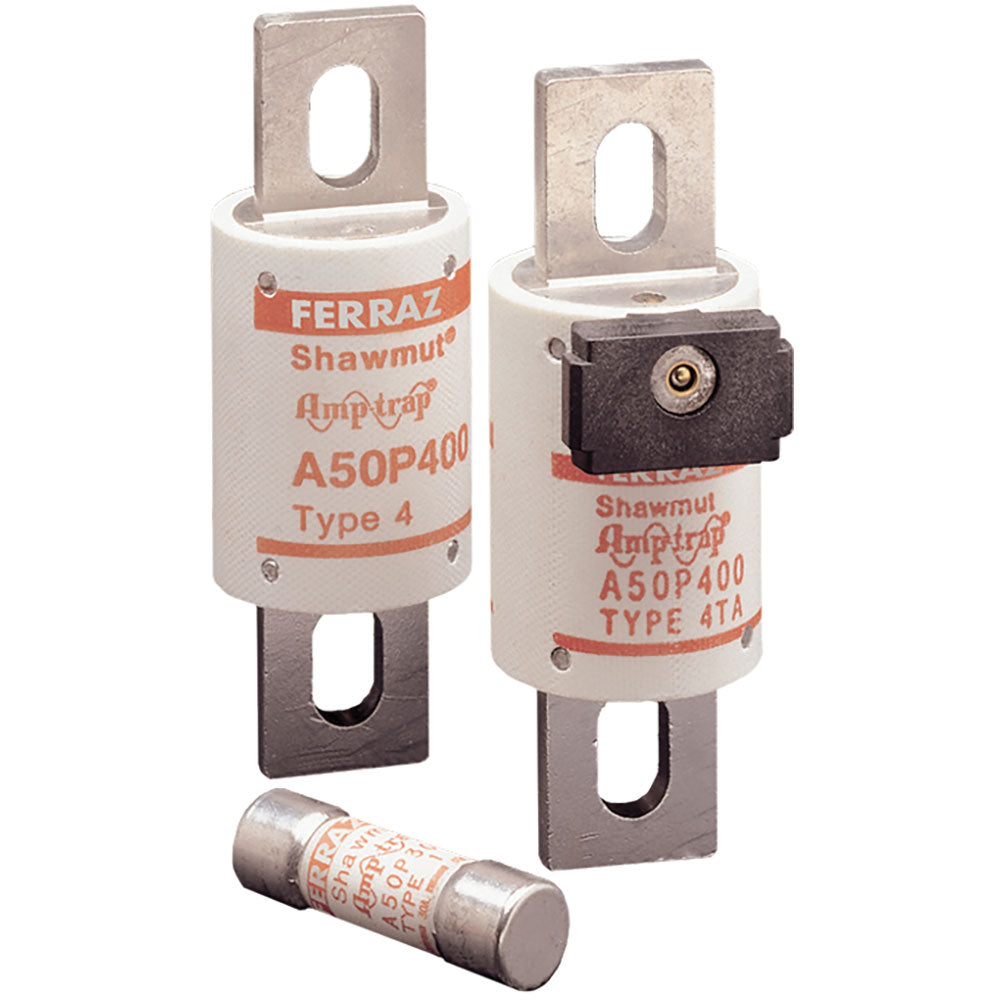

Cutler Hammer A50P1000-4TA - Amp-Trap Fuse 1000A (100kA@500V AIC)

Cutler Hammer A50P1000-4TA is a low voltage current-limiting fuse from the Amp-Trap family designed to provide reliable overcurrent and short-circuit protection in industrial electrical systems. It features a 1000A current rating and 500V voltage rating with a high 100kA interrupting capacity at 500V for robust fault protection. The fuse construction utilizes a single-barrel design with bolt-in blade connection and measures 3 inches in diameter with a 4 lb weight for secure installation. This component is UL certified to meet industry safety standards for electrical protection devices. Typical applications include motor control centers, industrial control panels, and power distribution equipment where high-current circuit protection is required.

Key Features & Specifications

• Type: Amp-Trap A50P current-limiting fuse with single-barrel construction
• Voltage Rating: 500V AC
• Current Rating: 1000A
• Dimensions: 3" diameter
• Standards: UL Certified
• Applications: Motor control centers, industrial control panels, power distribution systems
• AIC rating: 100kA@500V
• Connection: Bolt-In Blade
• Barrels: 1
• Weight: 4 lb
• Fuse Class: A50P

Product Identification

• UPC: 78200114060
• GTIN: 00782001140601
