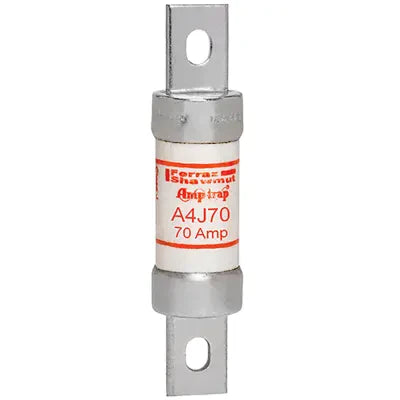

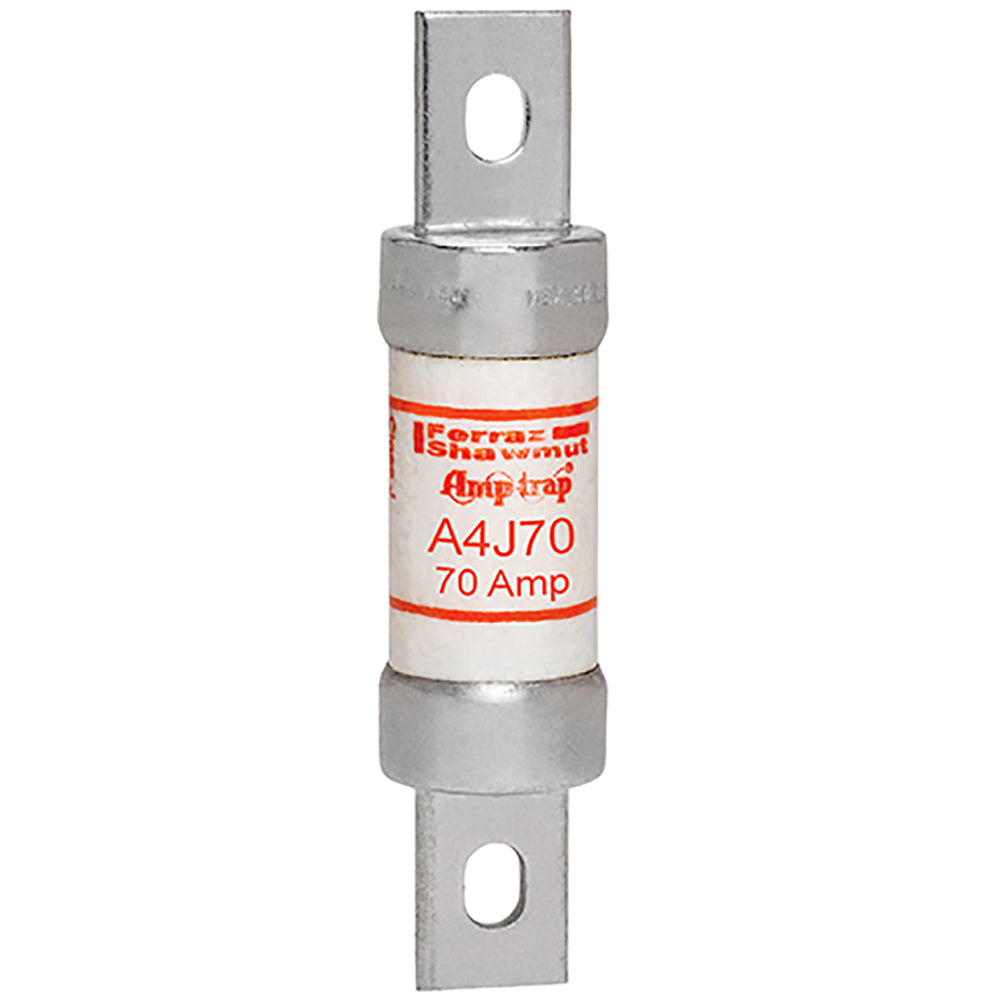

Mersen A4J70 - Class J Fuse 70A (200kA@600V Interrupt Rating)

Mersen A4J70 is a low-voltage current-limiting fuse designed for circuit protection in industrial electrical systems. This 600VAC/DC-rated fuse features a 70A current rating with a 200kA interrupting capacity at 600V, housed in a compact cylindrical design measuring 1.13" diameter x 4.63" length with a single-barrel construction. Compliant with Class J standards, the Amp-Trap series fuse utilizes current-limiting technology to protect equipment from short circuits and overloads in motor control centers, industrial panels, and power distribution systems.

Key Features & Specifications

• Type: Class J current-limiting fuse, single barrel construction
• Voltage Rating: 600V AC/DC
• Current Rating: 70A
• Dimensions: 1.13" diameter x 4.63" length
• Weight: 0.24 lb
• Standards: Class J (UL/CSA)
• AIC Rating: 200kA@600V
• Applications: Motor protection, industrial control panels, power distribution

Product Identification

• UPC: 782001960285
• GTIN: 00782001960285
