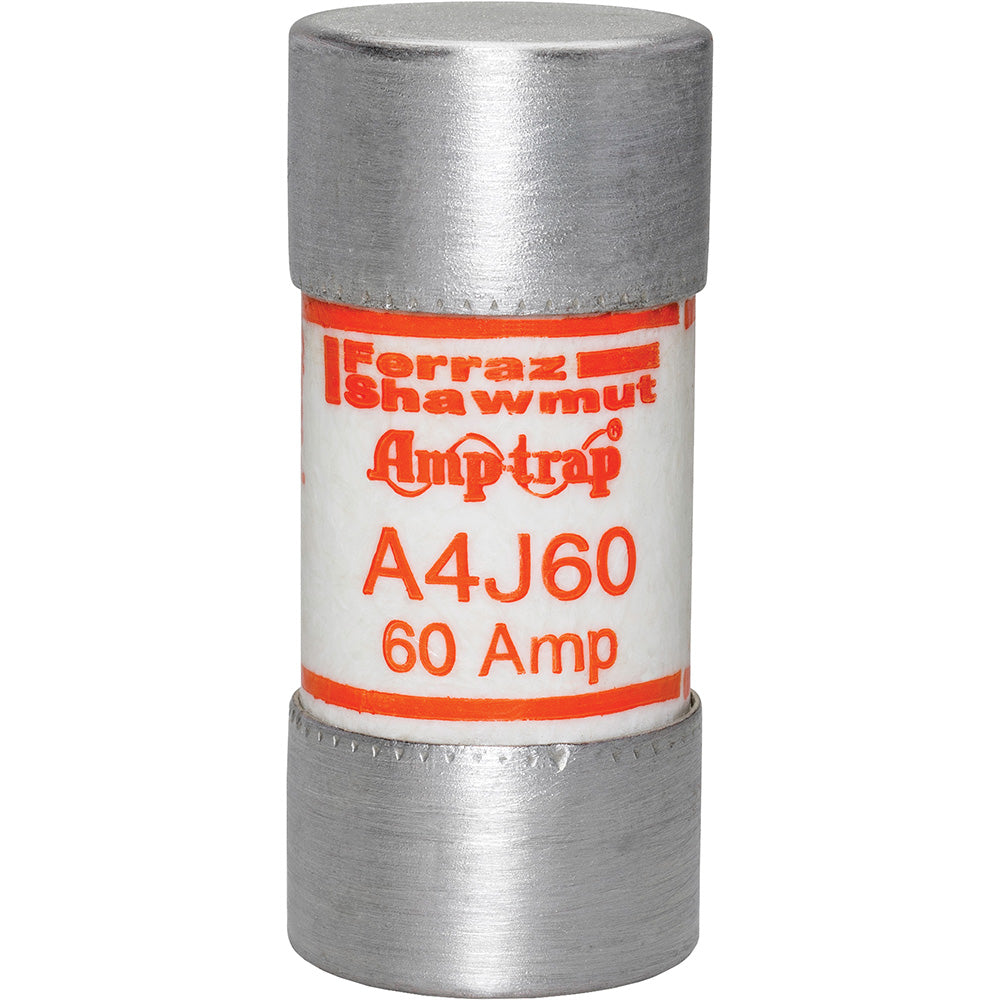

Mersen A4J60 - Class J Fuse 60A (200kA AIC @600V)

Mersen A4J60 is a low-voltage current-limiting fuse designed for circuit protection in industrial electrical systems. Rated for 600V AC/DC applications with a 60A current capacity, it features a ferrule connection and single-barrel construction with a compact 2.38-inch length and 1.06-inch diameter. Compliant with Class J standards, this Amp-Trap series fuse delivers 200kA interrupting capacity at 600V for reliable short-circuit protection. Typical applications include motor control centers, panelboards, and industrial machinery requiring robust overcurrent protection.

Key Features & Specifications

• Type: Class J current-limiting fuse with ferrule terminals
• Voltage Rating: 600V AC/DC
• Current Rating: 60A
• Dimensions: 2.38 in length x 1.06 in diameter
• Weight: 0.17 lb
• Standards: Class J (200kA AIC @600V)
• Applications: Motor controls, panelboards, industrial equipment
• Connection: Ferrule
• Barrels: 1
• AIC rating: 200kA@600V

Product Identification

• UPC: 782001960261
• GTIN: 00782001960261
