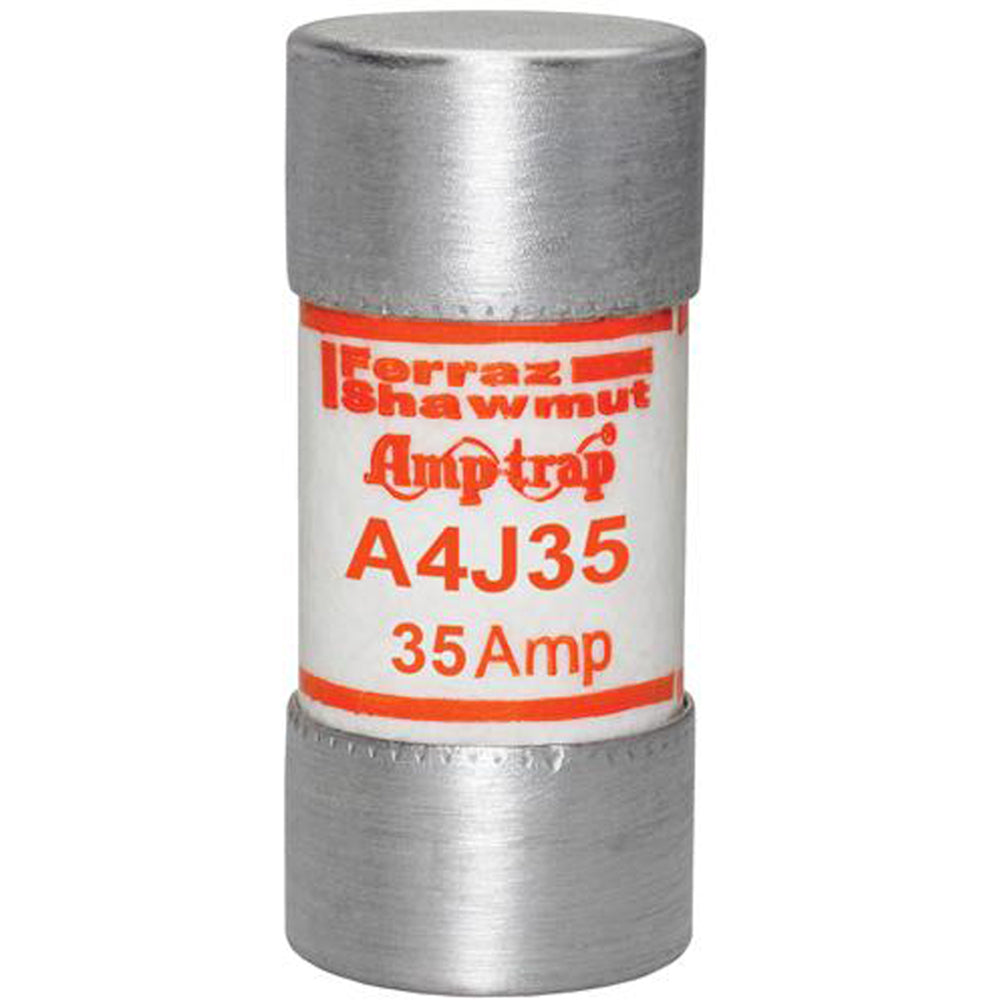

Mersen A4J35 - Class J Fuse 35A 600V (200kA AIC)

Mersen A4J35 is a Class J low-voltage current-limiting fuse designed for circuit protection in industrial electrical systems. This 600VAC-rated fuse features a 35A current rating with a 200kA interrupting capacity at rated voltage, housed in a compact ferrule-style design measuring 2.38 inches in length and 1.06 inches in diameter. Constructed as part of the Amp-Trap series, the fuse meets stringent industry standards for overcurrent protection in demanding environments. Typical applications include motor branch circuits, transformer protection, and industrial control panels where high fault current interruption is critical.

Key Features & Specifications

• Type: Class J current-limiting fuse, ferrule connection
• Voltage Rating: 600VAC
• Current Rating: 35A
• Dimensions: 2.38 in length x 1.06 in diameter
• Weight: 0.17 lb
• AIC Rating: 200kA@600V
• Standards: UL/CSA certified
• Applications: Motor circuits, transformers, industrial controls
• Construction: Single-barrel design
• Country of Origin: Mexico

Product Identification

• UPC: 782001960216
• GTIN: 00782001960216
