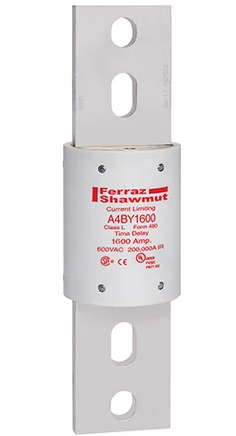

Mersen A4BY1600-BG - Amp-Trap Low Voltage Fuse 1600A (200kA@600V Interrupting Capacity)

Mersen A4BY1600-BG is a low-voltage current-limiting fuse designed for high-interrupting capacity circuit protection in industrial power systems. This Amp-Trap series fuse features a 600V AC rating with a 1600A current capacity and 200kA interrupting rating at 600V, housed in a compact 5 lb bolt-on design for secure mounting. It complies with UL/CSA standards for reliable short-circuit protection in demanding environments. Typical applications include motor control centers, switchgear, and transformer protection where high fault currents are present.

Key Features & Specifications

• Type: A4BY bolt-on current-limiting fuse with silver-element construction
• Voltage Rating: 600V AC
• Current Rating: 1600A
• AIC Rating: 200kA@600V
• Standards: UL 248-12, CSA C22.2 No. 248.12
• Applications: Industrial switchgear, MCCs, transformer protection
• Weight: 5 lb
• Family: Amp-Trap

Product Identification

• UPC: 78200193839
• GTIN: 00782001938390
