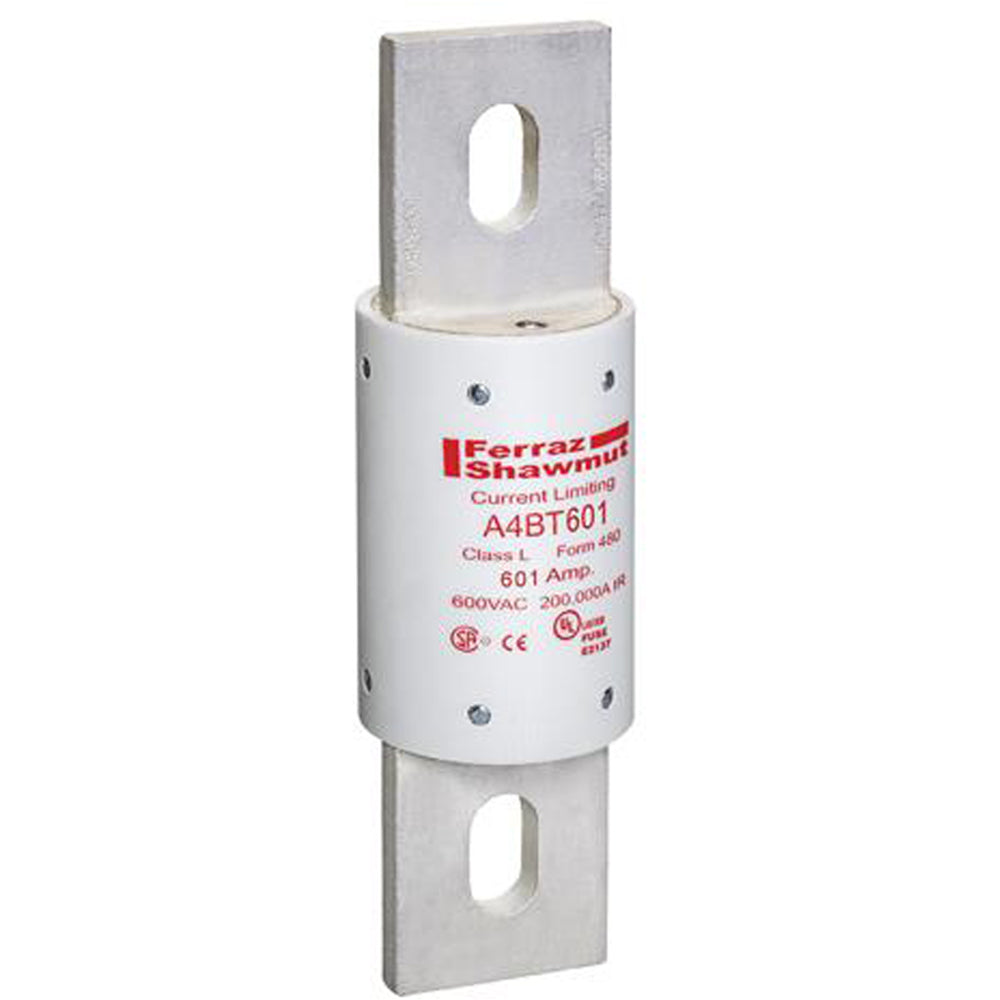

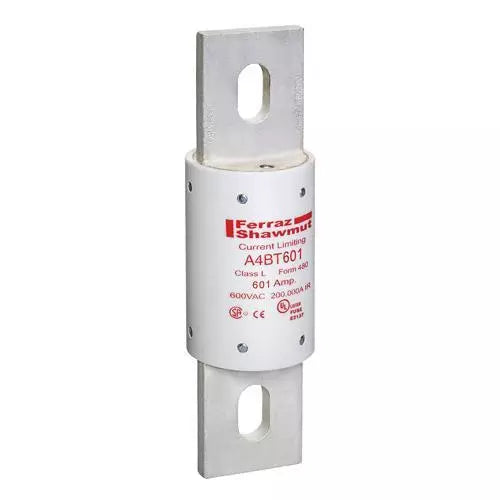

Mersen A4BT601 - Class L Current-Limiting Fuse 600V/601A (200kA AIC)

Mersen A4BT601 is a low-voltage current-limiting fuse designed for high-interrupting capacity circuit protection in industrial power systems. This UL/CSA/CE-certified Class L fuse features a 600V AC rating with a 200kA interrupting capacity at 600V and a 601A current rating, housed in a robust 2.5-inch diameter single-barrel construction. The Amp-Trap series fuse utilizes advanced current-limiting technology to protect electrical distribution equipment while meeting stringent international safety standards. Typical applications include motor control centers, switchgear, and industrial power distribution systems requiring reliable short-circuit protection.

Key Features & Specifications

• Type: Class L current-limiting fuse, single barrel
• Voltage: 600V AC
• Current: 601A
• Dimensions: 2.5" diameter
• Standards: UL, CSA, CE
• Applications: Industrial power distribution, motor control centers
• AIC rating: 200kA@600V
• Weight: 3 lb
• Class Rating: L

Product Identification

• UPC: 782001939991
• GTIN: 00782001939991
