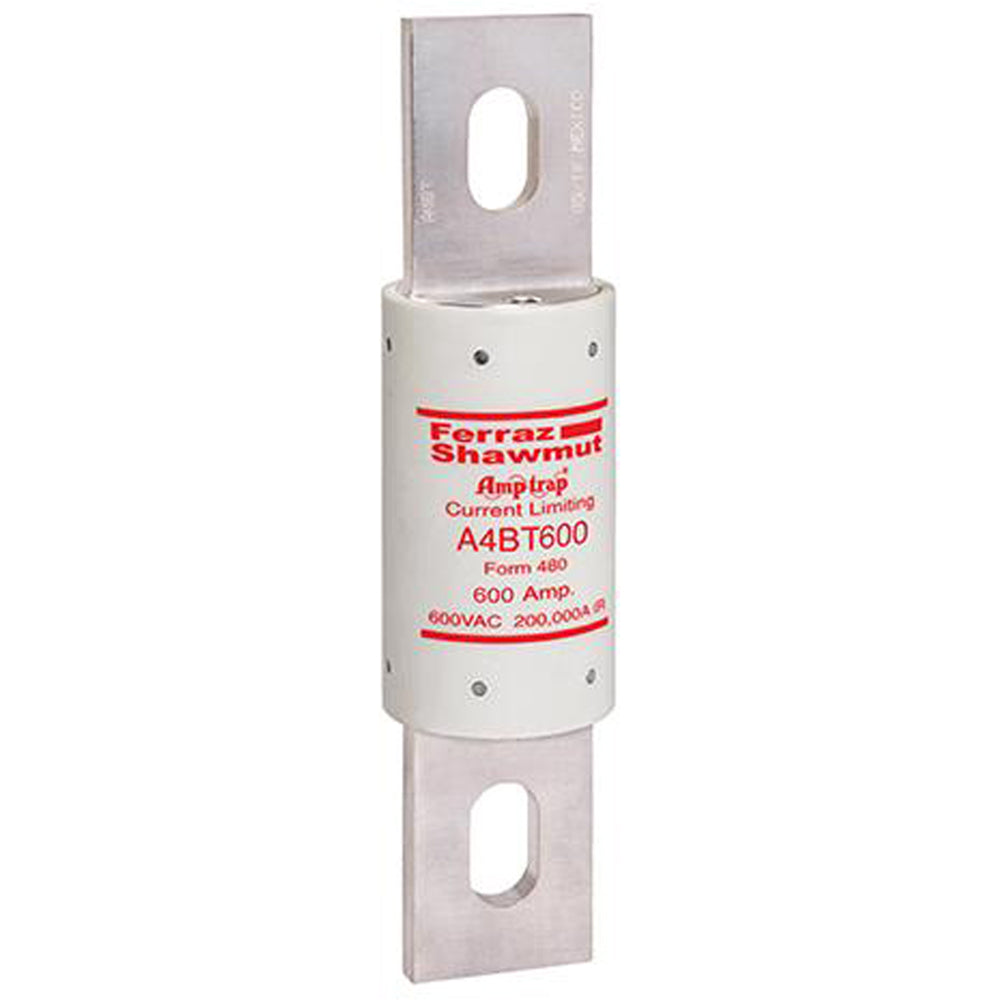

Mersen A4BT600 - Class L Fuse 600A (200kA AIC @600V)

Mersen A4BT600 is a Class L low-voltage current-limiting fuse designed for high-interrupting capacity circuit protection in industrial power distribution systems. Rated for 600V AC/DC applications with a 600A current rating, this single-barrel fuse features a compact 2-inch diameter design with UL, CSA, and CE certifications for compliance with international safety standards. Its 200kA interrupting capacity at 600V makes it suitable for protecting transformers, motor control centers, and service entrance equipment where high fault currents may occur.

Key Features & Specifications

• Type: Class L Amp-Trap current-limiting fuse with silver-sand construction
• Voltage Rating: 600V AC/DC
• Current Rating: 600A
• Dimensions: 2" diameter
• Standards: UL 248-8, CSA C22.2 No. 248.8, CE
• Applications: Industrial power distribution, transformers, MCCs
• AIC rating: 200kA@600V
• Class Rating: L
• Barrels: 1
• Weight: 2 lb

Product Identification

• UPC: 782001939861
• GTIN: 00782001939861
