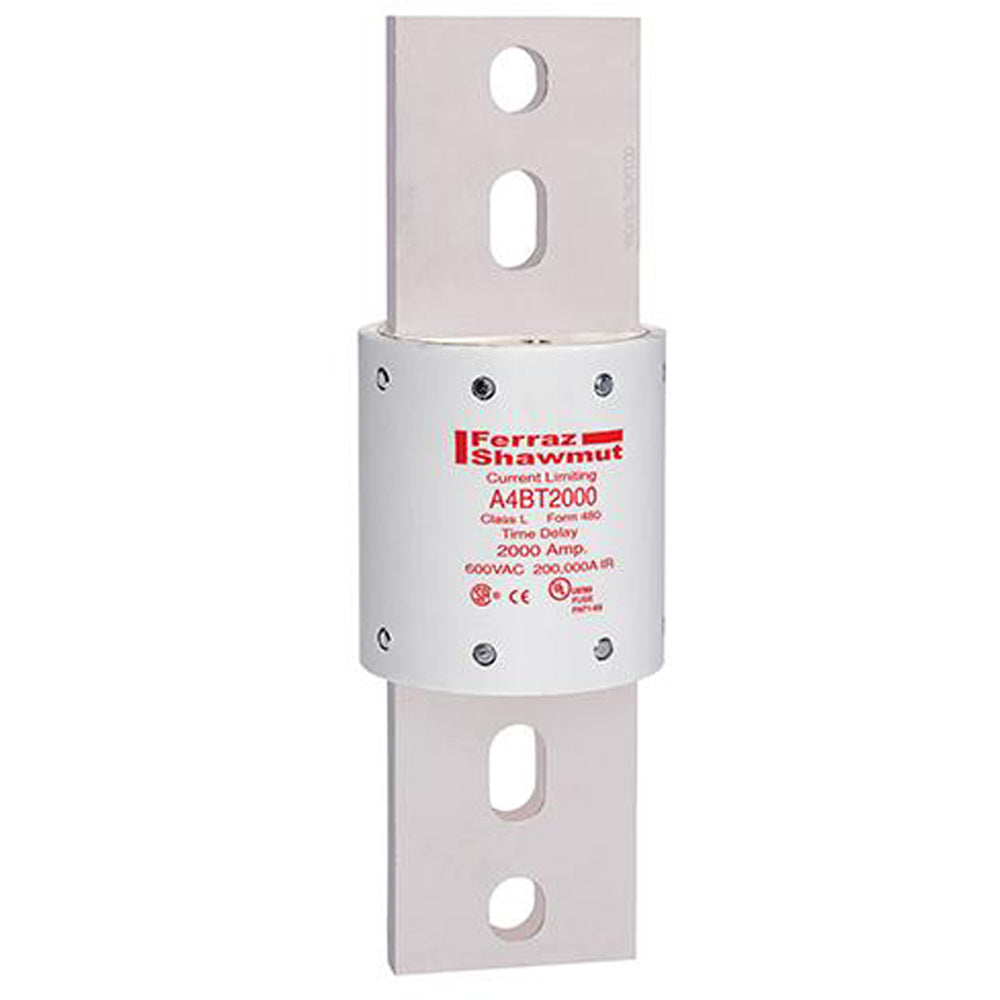

Mersen A4BT2000 - Class L Fuse 2000A (200kA@600V Interrupting Capacity)
Regular price
$921.05
$921.05
Regular price
$1,996.90
$1,996.90
Sale price
$921.05
$921.05
Save $1,075.85
/
- Low stock - 6 items left
- Backordered, shipping soon
Mersen A4BT2000 is a low-voltage current-limiting fuse from the Amp-Trap family, engineered for high-interrupting capacity circuit protection in industrial power distribution systems. This 600VAC/VDC rated fuse delivers 2000A continuous current protection with a 200kA interrupting rating at 600V, housed in a compact 3.5-inch diameter Class L design with single-barrel construction. The UL/CSA/CE certified fuse features current-limiting technology to protect against short circuits and overloads in demanding environments. Typical applications include switchgear, motor control centers, and industrial power distribution panels requiring reliable fault current interruption.
Key Features & Specifications
Key Features & Specifications
- Type: Class L current-limiting fuse, single barrel design
- Voltage Rating: 600V AC/DC
- Current Rating: 2000A
- Dimensions: 3.5" diameter
- Standards: UL 248-12, CSA C22.2 No. 248.12, CE
- Applications: Industrial power distribution, switchgear, MCCs
- AIC rating: 200kA @ 600V
- Class Rating: L
- Barrels: 1
- Weight: 8 lb
- UPC: 782001939984
- GTIN: 00782001939984
