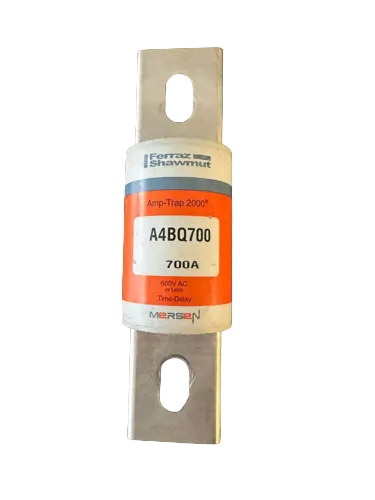

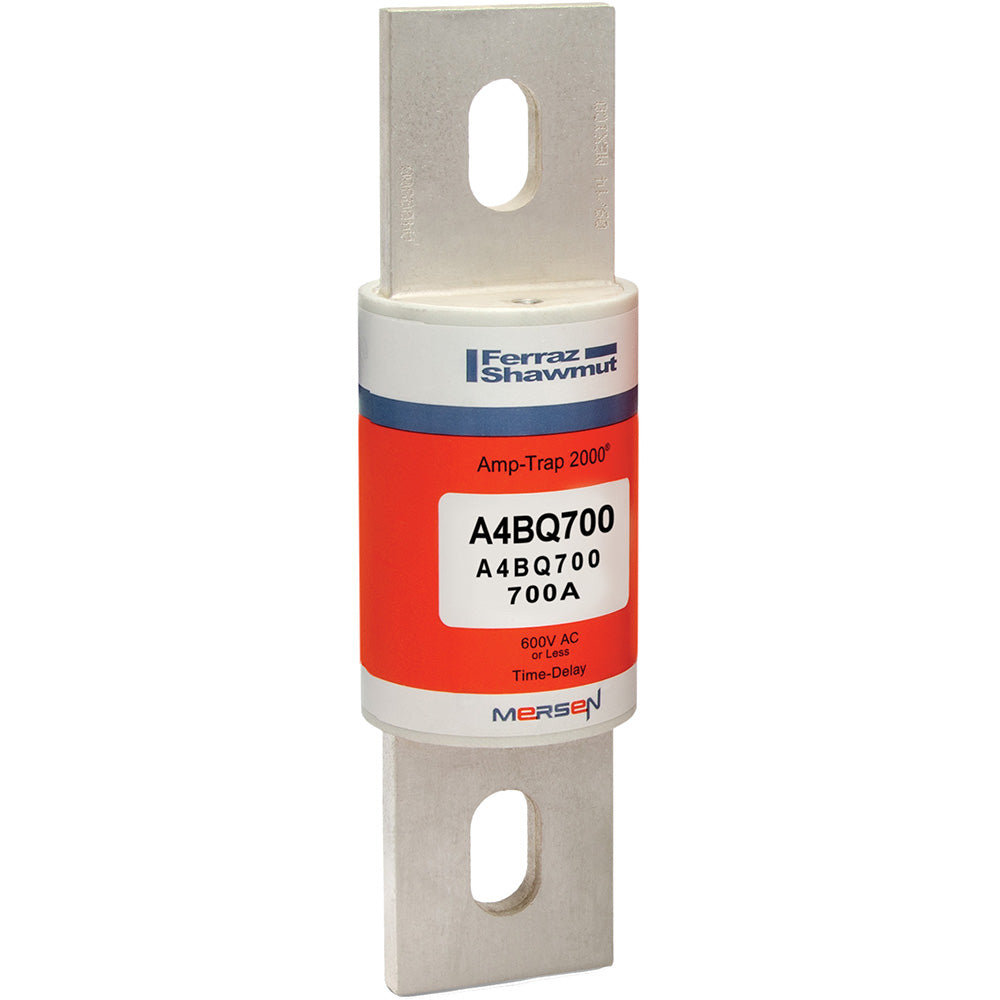

Ferraz Shawmut A4BQ700 - Class L Current-Limiting Fuse 700A (200kA@600V Interrupting Capacity)

Ferraz Shawmut A4BQ700 is a low-voltage current-limiting fuse from the Amp-Trap 2000 family, designed for high-interrupting capacity circuit protection in industrial power distribution systems. This Class L fuse features a 600V AC rating with a 700A current capacity and exceptional 200kA interrupting rating at 600V for reliable short-circuit protection. The fuse measures 8-5/8" in length with a 2.5" diameter barrel construction, weighing 3 lb, and meets stringent UL and CSA safety standards. Its current-limiting design provides fast-acting protection for motor control centers, switchgear, and industrial power distribution equipment requiring high fault current interruption.

Key Features & Specifications

• Type: A4BQ Class L current-limiting fuse
• Voltage Rating: 600V AC
• Current Rating: 700A
• Dimensions: 8-5/8" length x 2.5" diameter
• Standards: UL, CSA certified
• Applications: Industrial power distribution, motor control centers, switchgear
• AIC rating: 200kA@600V
• Class Rating: L
• Barrels: 1
• Weight: 3 lb
• Country of Origin: Mexico

Product Identification

• UPC: 782001930028
• GTIN: 00782001930028
