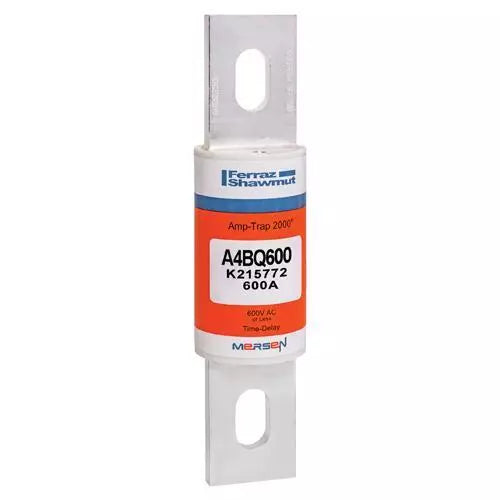

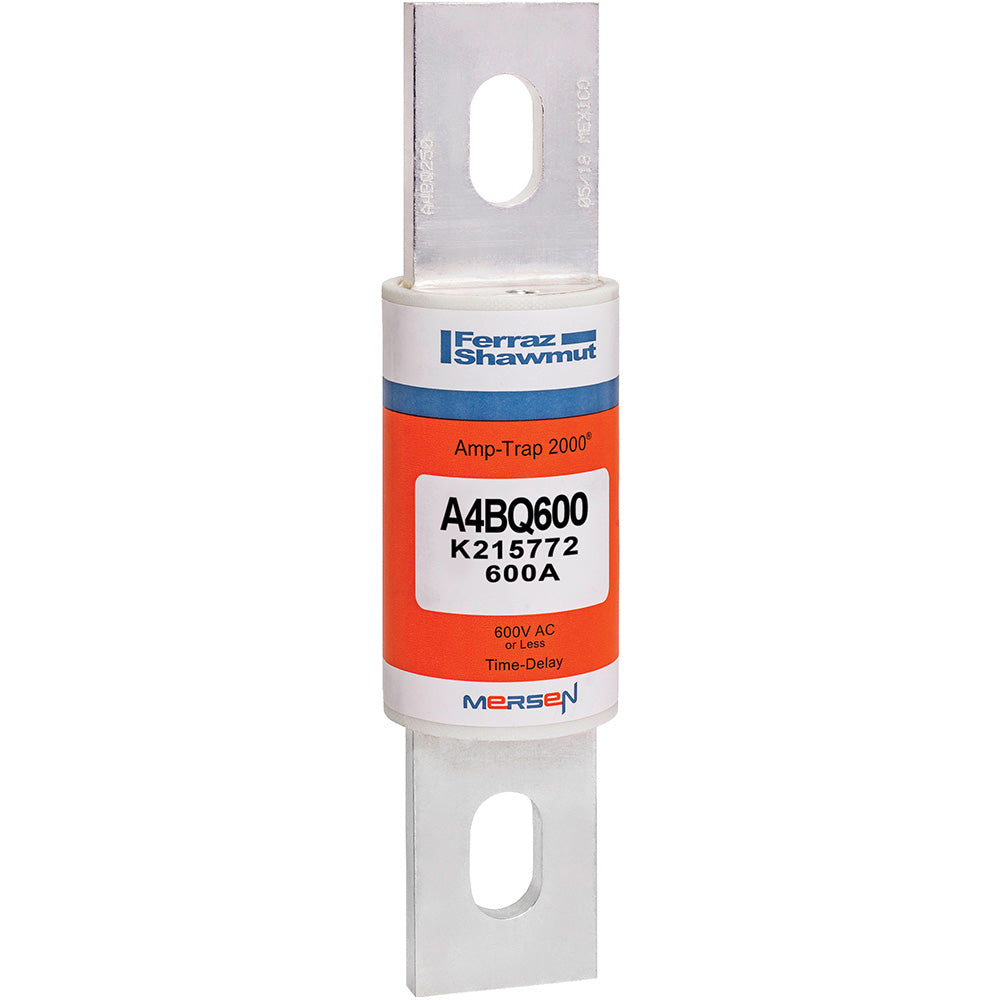

Ferraz Shawmut A4BQ600 - Class L Current-Limiting Fuse 600A (200kA AIC @600V)

Ferraz Shawmut A4BQ600 is a low-voltage current-limiting fuse from the Amp-Trap 2000 family, designed for high-interrupting capacity circuit protection in industrial applications. Rated for 600V AC systems with a 600A current rating, it features a 200kA interrupting capacity at 600V for reliable fault protection. The fuse measures 8-5/8 inches in length with a 2-inch diameter barrel construction, weighing 3 lb, and meets UL/CSA safety standards. Its Class L designation ensures robust performance in demanding environments like motor control centers, switchgear, and power distribution systems.

Key Features & Specifications

• Type: A4BQ Class L current-limiting fuse with single barrel design
• Voltage Rating: 600V AC
• Current Rating: 600A
• Dimensions: 8-5/8" length x 2" diameter
• Standards: UL, CSA certified
• Applications: Industrial power distribution, motor protection, switchgear
• AIC rating: 200kA@600V
• Class Rating: L
• Barrels: 1
• Weight: 3 lb

Product Identification

• UPC: 782001930714
• GTIN: 00782001930714
