Cutler Hammer A4BQ2500 - Class L Fuse 2500A 600V (200kA AIC)
Regular price
$1,834.59
$1,834.59
Regular price
$3,252.41
$3,252.41
Sale price
$1,834.59
$1,834.59
Save $1,417.82
/
- Low stock - 6 items left
- Backordered, shipping soon

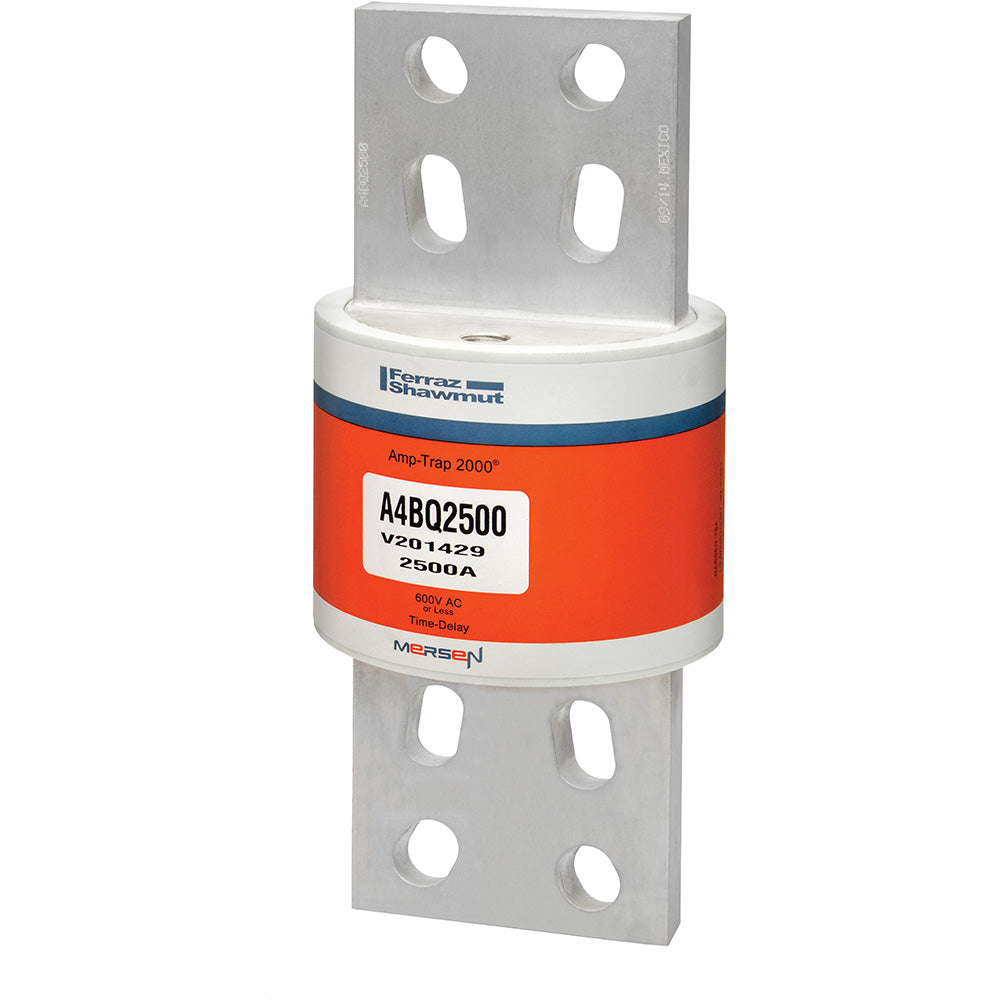

Cutler Hammer A4BQ2500 is a Class L low-voltage current-limiting fuse designed for high-amperage circuit protection in industrial power distribution systems. This 2500A rated fuse operates at 600V AC with an impressive 200kA interrupting capacity, providing reliable short-circuit protection. The single-barrel construction features a 4.5-inch diameter and measures 10-3/4 inches in length, built with robust materials to withstand 18 lb of operational stress. Certified to UL and CSA standards, this Amp-Trap 2000 series fuse meets rigorous industry requirements for safety and performance. Typical applications include main service entrances, feeder circuits, and industrial machinery protection where high fault current interruption is critical.
Key Features & Specifications
Product Identification
Key Features & Specifications
- Type: Class L low-voltage current-limiting fuse, single barrel construction
- Voltage Rating: 600V AC
- Current Rating: 2500A
- Dimensions: 10-3/4 inches length, 4.5 inches diameter
- Standards: UL, CSA certified
- Applications: Industrial power distribution, main service entrances, feeder circuits
- AIC rating: 200kA @ 600V
- Class Rating: L
- Barrels: 1
- Weight: 18 lb
- Family: Amp-Trap 2000
- Country of Origin: Mexico
Product Identification
- UPC: 782001930134
- GTIN: 00782001930134
