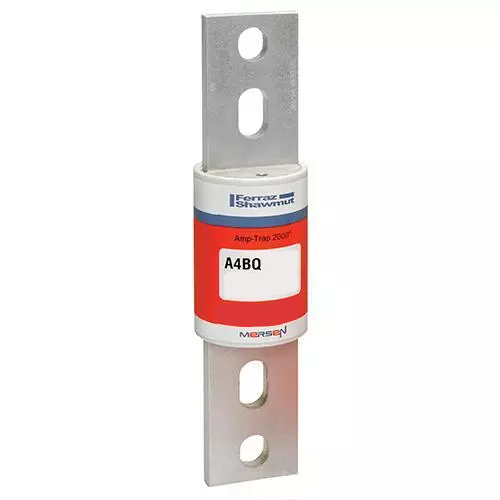

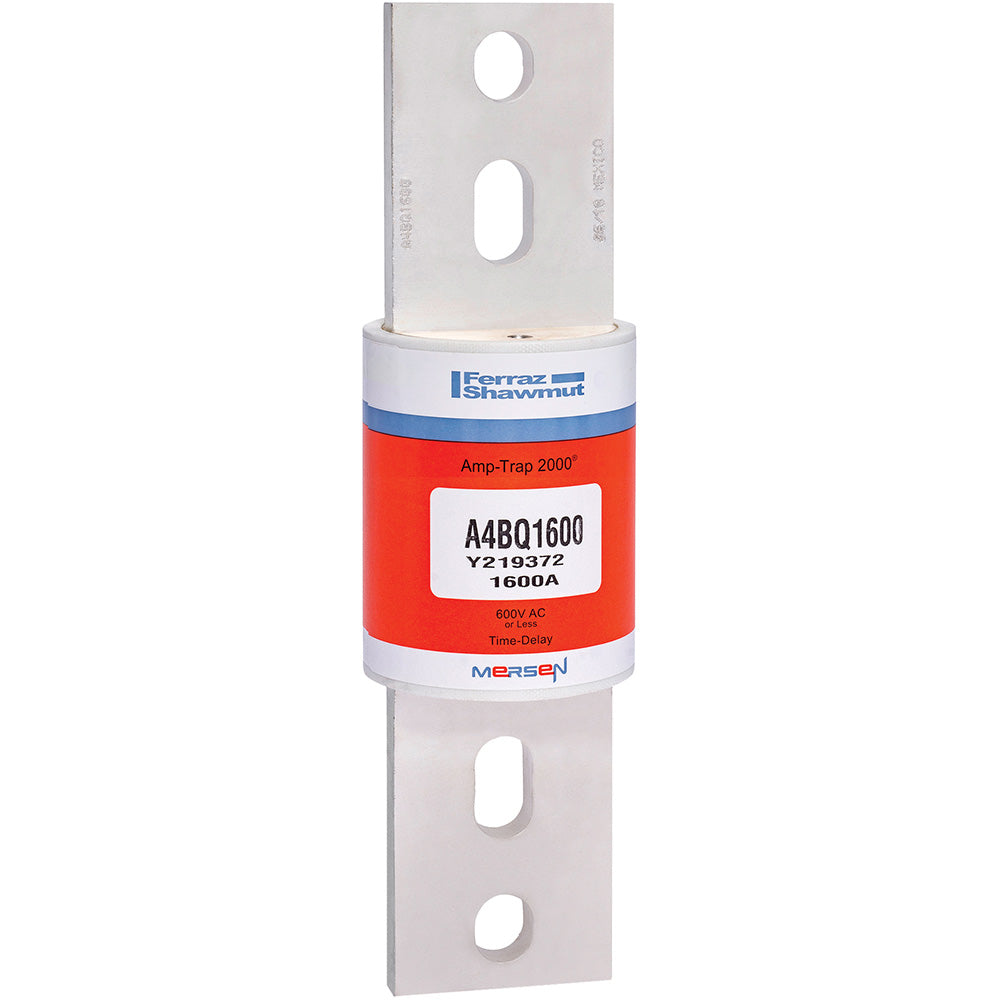

Mersen A4BQ1600 - Class L Fuse 1600A 600V (200kA AIC)

Mersen A4BQ1600 is a Class L low-voltage fuse designed for high-current circuit protection in industrial power distribution systems. This 600VAC-rated fuse features a 1600A current rating with a 200kA interrupting capacity at rated voltage, housed in a durable 10-3/4" cylindrical body with 3.5" diameter and 6 lb weight. Constructed with a single-barrel design, it meets CSA and UL safety standards for reliable operation in demanding environments. Typical applications include motor control centers, switchgear, and other heavy-duty electrical equipment requiring robust short-circuit protection.

Key Features & Specifications

• Type: Class L Amp-Trap 2000 series current-limiting fuse
• Voltage Rating: 600VAC
• Current Rating: 1600A
• Dimensions: 10-3/4" length x 3.5" diameter
• Weight: 6 lb
• Standards: CSA, UL listed
• Applications: Industrial power distribution, motor protection, switchgear
• AIC rating: 200kA@600V
• Class Rating: L
• Barrels: 1
• Country of Origin: Mexico

Product Identification

• UPC: 782001939403
• GTIN: 00782001939403
