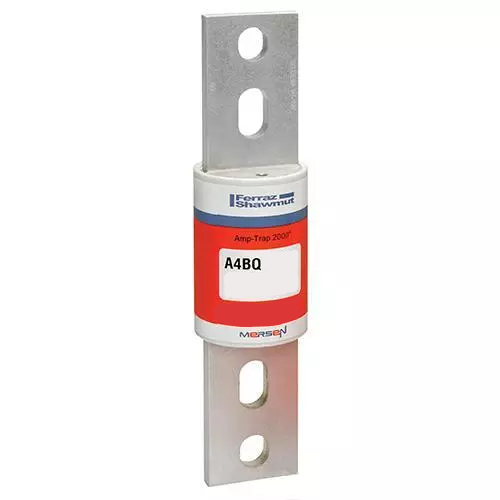

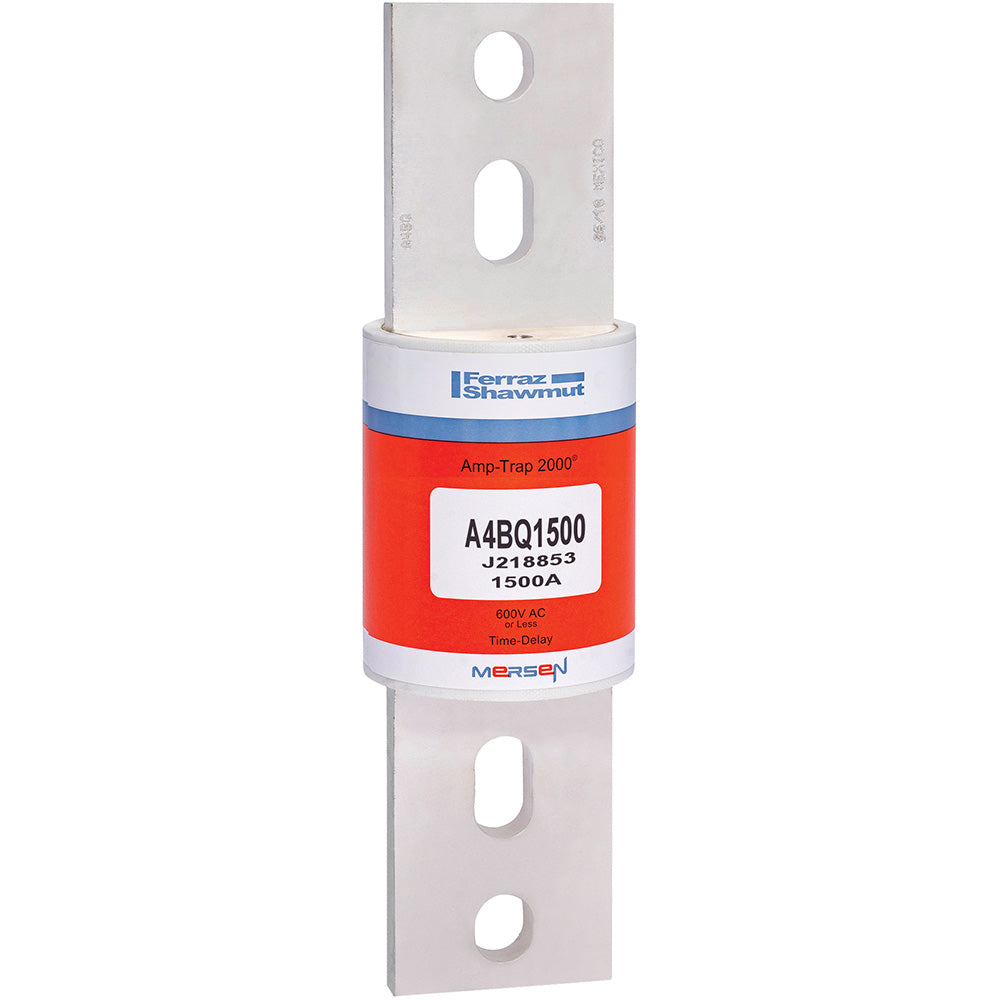

Ferraz Shawmut A4BQ1500 - Class L Fuse 600V 1500A (200kA AIC)

Ferraz Shawmut A4BQ1500 is a low-voltage current-limiting fuse from the Amp-Trap 2000 family, designed for high-interrupting capacity circuit protection in industrial power distribution systems. Rated for 600V AC with a 1500A current capacity, this Class L fuse features a single-barrel construction with a 200kA interrupting rating at 600V for reliable fault current protection. The fuse measures 10-3/4 inches in length with a 3-inch diameter and 6 lb weight, constructed to meet CSA and UL safety standards. Its robust design makes it suitable for switchgear, motor control centers, and other heavy-duty applications requiring high short-circuit protection.

Key Features & Specifications

• Type: A4BQ Class L current-limiting fuse
• Voltage Rating: 600V AC
• Current Rating: 1500A
• Dimensions: 10-3/4 in length x 3 in diameter
• Weight: 6 lb
• Standards: CSA, UL listed
• Applications: Industrial power distribution, switchgear, MCCs
• AIC rating: 200kA@600V
• Barrels: 1
• Class Rating: L
• Country of Origin: Mexico

Product Identification

• UPC: 782001930110
• GTIN: 00782001930110
