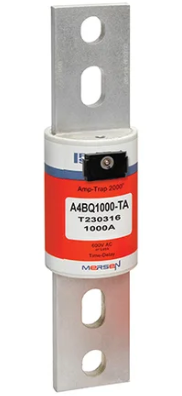

Ferraz Shawmut A4BQ1000-TA - Class L Fuse 1000A (200kA@600V Interrupt Rating)

Ferraz Shawmut A4BQ1000-TA is a low-voltage current-limiting fuse designed for high-interrupting capacity circuit protection in industrial applications. This UL/CSA-certified Class L fuse features a 600V AC rating with a 1000A current capacity and exceptional 200kA interrupting rating at 600V for reliable fault protection. The compact 2.5-inch diameter blade-style fuse with single-barrel construction weighs 5 lb for robust performance in demanding environments. Compliant with North American safety standards, this Amp-Trap 2000 series fuse is engineered for switchgear, motor control centers, and industrial power distribution systems requiring high fault current protection.

Key Features & Specifications

• Type: Current-limiting Class L fuse with blade connection
• Voltage Rating: 600V AC
• Current Rating: 1000A
• Dimensions: 2.5" diameter
• Standards: UL, CSA
• Applications: Industrial switchgear, MCCs, power distribution
• AIC rating: 200kA@600V
• Connection: Blade
• Barrels: 1
• Class Rating: L
• Weight: 5 lb

Product Identification

• UPC: 078200129404
• GTIN: 00782001294045
