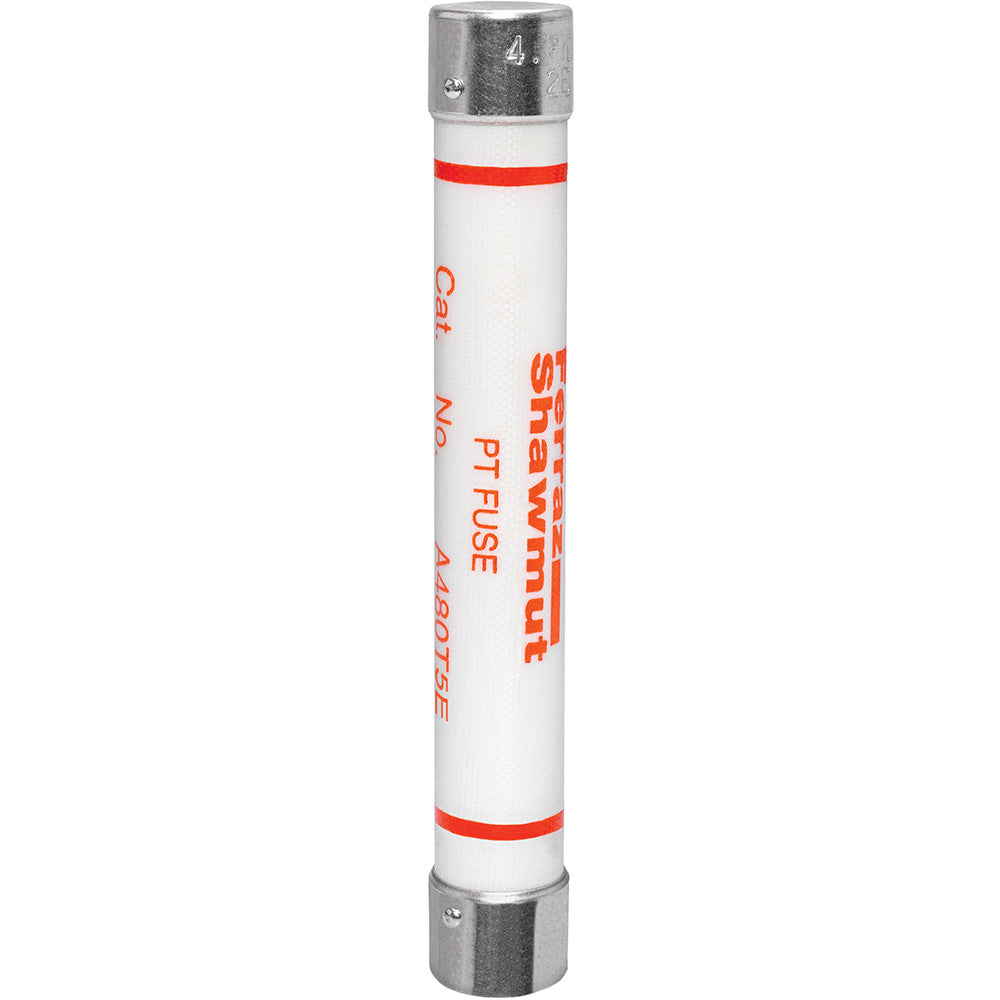

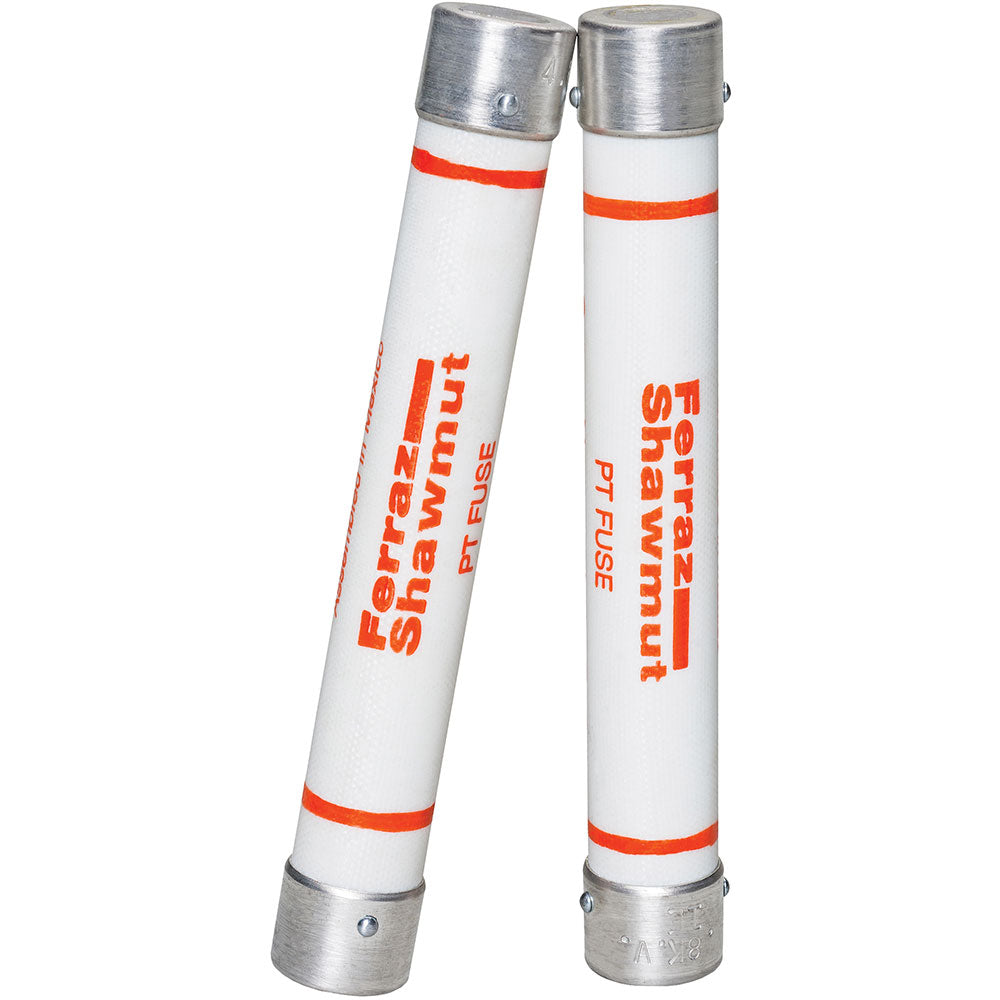

Mersen A480T5E - Medium Voltage Fuse 4800V/5A (50kA AIC @4.8kV)

Mersen A480T5E is a medium voltage current-limiting fuse from the Amp-Trap Series designed for high-voltage circuit protection in industrial power systems. This UL-certified Class E fuse features a 4800V voltage rating and 5A current rating with a 50kA interrupting capacity at 4.8kV for reliable fault protection. The single-barrel construction measures 5.63" in length with a 0.81" diameter, weighing 5 lb, featuring standardized 5" clip center spacing for compatible fuse holders. Compliant with UL standards, this Mexico-manufactured fuse provides precise overcurrent protection for medium voltage switchgear, transformers, and motor circuits in utility and industrial applications.

Key Features & Specifications

• Type: Current-limiting medium voltage fuse (Amp-Trap Series)
• Voltage Rating: 4800V AC
• Current Rating: 5A
• Dimensions: 5.63" length x 0.81" diameter
• Standards: UL certified
• Applications: Medium voltage switchgear, transformers, motor circuits
• Class Rating: E
• Barrels: 1
• AIC rating: [email protected]
• Clip Center: 5"
• Weight: 5 lb

Product Identification

• UPC: 068938800574
• GTIN: 00068938800574
