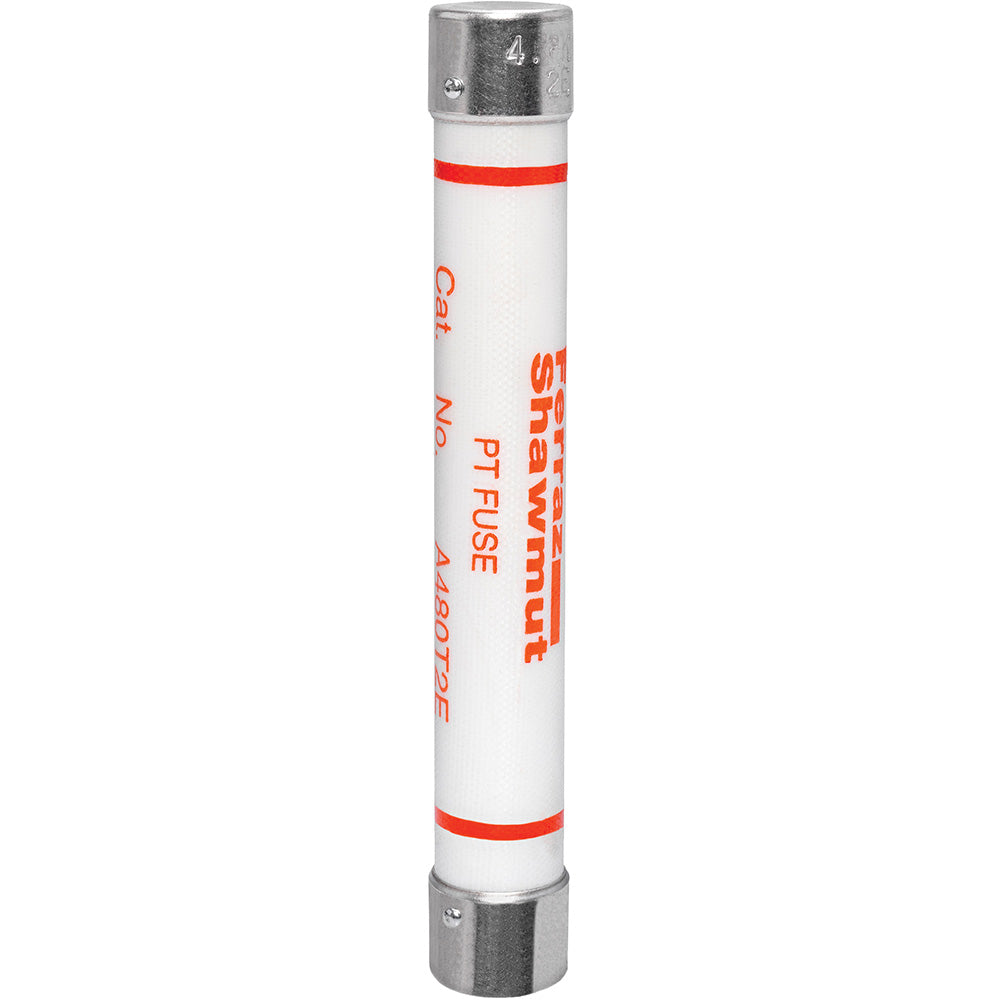

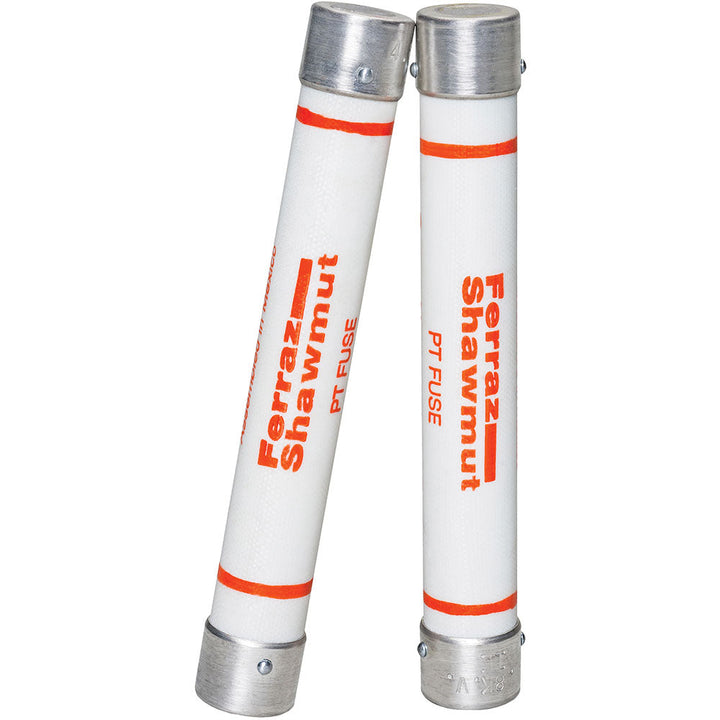

Mersen A480T2E - Medium Voltage Fuse 4800V 2A (50kA AIC @4.8kV)

Mersen A480T2E is a medium voltage current-limiting fuse from the Amp-Trap Series, designed for industrial circuit protection up to 4800V AC systems. It features a 2A current rating with a 50kA interrupting capacity at 4.8kV, housed in a compact 5-5/8" cylindrical body with 0.81" diameter and 5" clip center spacing. Constructed with Class E-rated components, this single-barrel fuse meets stringent medium voltage protection requirements for transformer and feeder applications. Its 0.4 lb design provides reliable overcurrent protection in utility, industrial, and commercial power distribution systems.

Key Features & Specifications

• Type: Current-limiting medium voltage fuse (A480T)
• Voltage Rating: 4800V AC
• Current Rating: 2A
• Dimensions: 5-5/8" length x 0.81" diameter
• Standards: Class E-rated
• Applications: Transformer/feeder protection, industrial power distribution
• AIC rating: [email protected]
• Barrels: 1
• Clip Center: 5"
• Weight: 0.4 lb

Product Identification

• UPC: 782001800512
• GTIN: 00782001800512
