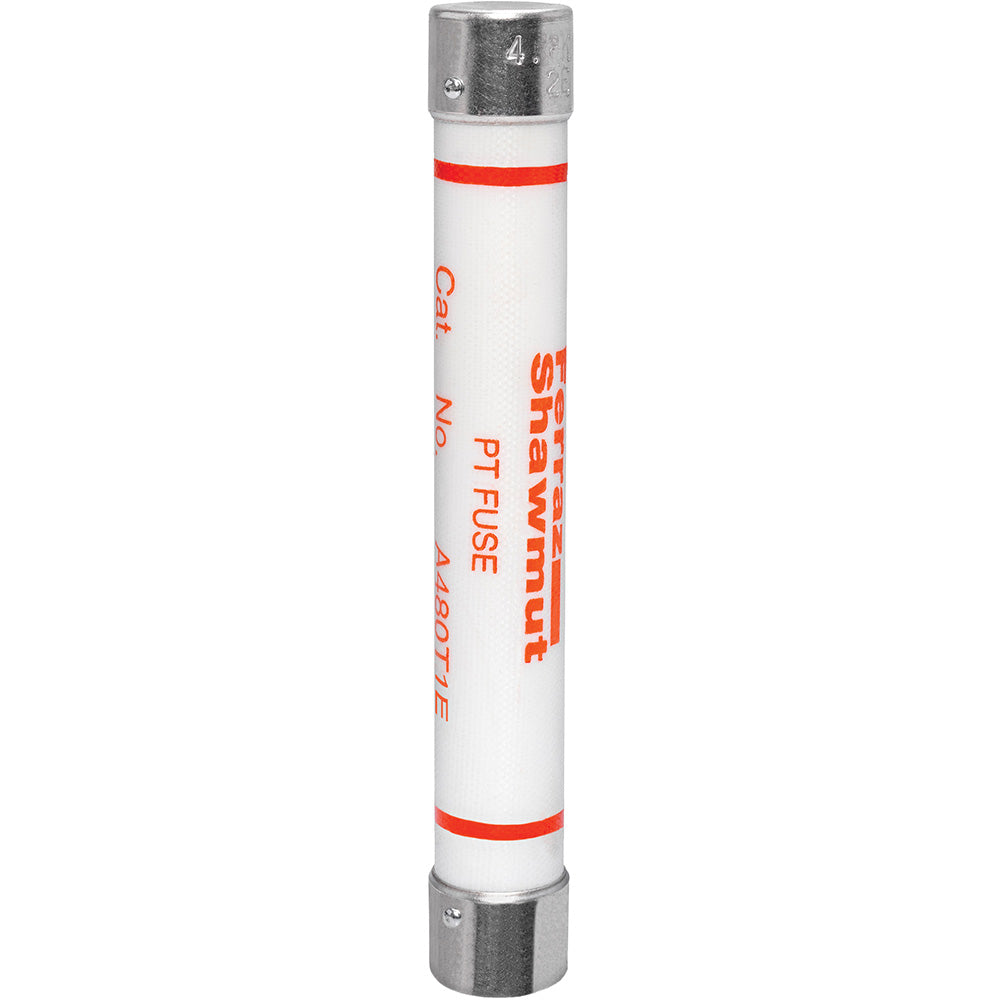

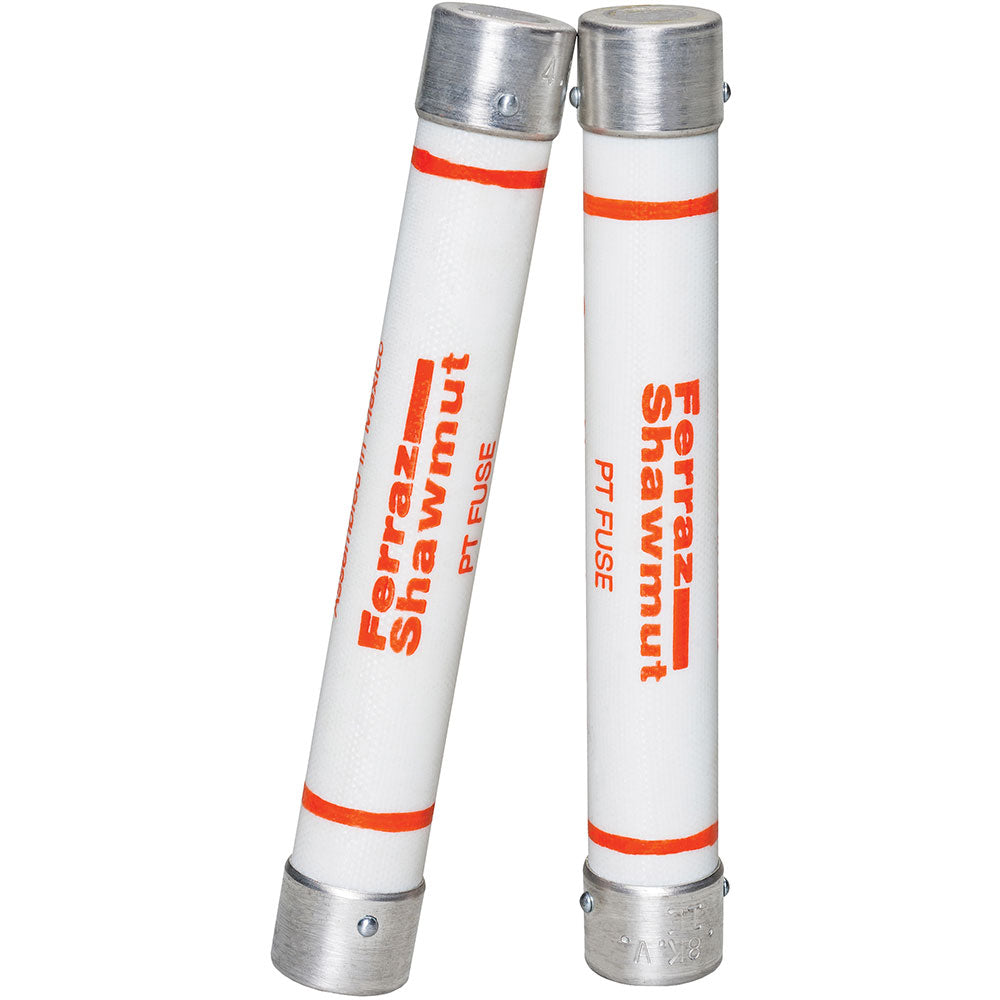

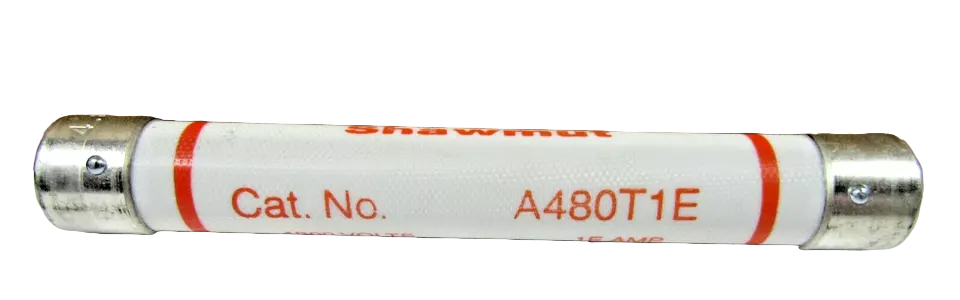

Mersen A480T1E - Medium Voltage Fuse 4800V AC (50kA AIC @ 4.8kV)

Mersen A480T1E is a medium voltage fuse from the Amp-Trap Series designed for high-voltage circuit protection in industrial applications. This Class E-rated fuse operates at 4800V AC with a 1A current rating and delivers 50kA interrupting capacity at 4.8kV for reliable fault protection. The compact design features a single-barrel construction with 5" clip center spacing, measuring 5-5/8" in length and 0.81" in diameter while weighing just 0.4 lb. Compliant with industry standards for medium voltage protection, this Mexican-manufactured fuse is engineered for switchgear, motor controls, and transformer protection in demanding environments.

Key Features & Specifications

• Type: Medium voltage current-limiting fuse, single-barrel design
• Voltage Rating: 4800V AC
• Current Rating: 1A
• Dimensions: 5-5/8" length x 0.81" diameter
• Standards: Class E rated
• Applications: Industrial switchgear, motor protection, transformer circuits
• AIC rating: [email protected]
• Clip Center: 5"
• Weight: 0.4 lb
• Barrels: 1

Product Identification

• UPC: 782001800505
• GTIN: 00782001800505
