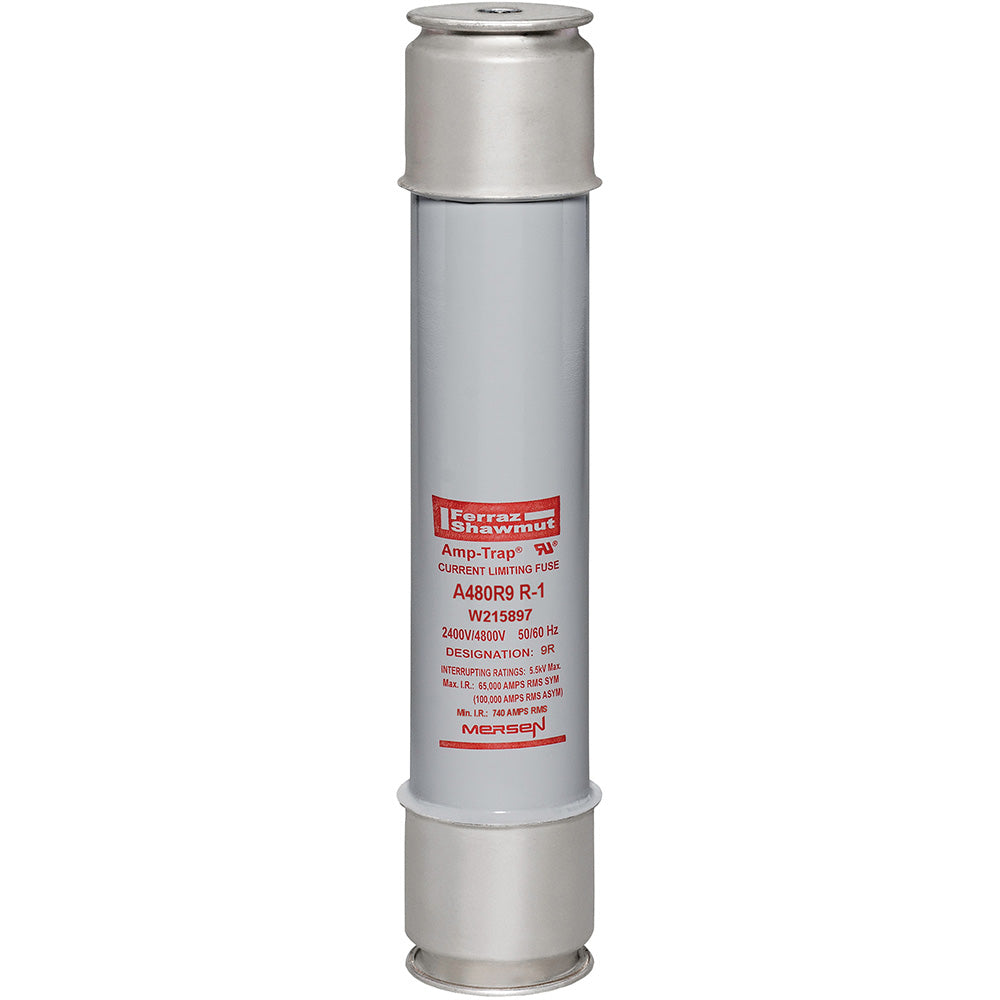

Mersen A480R9R-1 - Medium Voltage Fuse 4800V/200A (65kA AIC)

Mersen A480R9R-1 is a medium voltage current-limiting fuse designed for high-voltage circuit protection in industrial power systems. This Amp-Trap series fuse features a 4800V AC voltage rating and 200A current rating with a 65kA interrupting capacity at 4.8kV, housed in a durable 3-inch diameter barrel construction measuring 15-7/8 inches in length. Certified to ANSI C37.46-2000 and UL/UR standards, this Class R fuse provides reliable protection for transformers, motors, and feeder circuits in utility and industrial applications.

Key Features & Specifications

• Type: Current-limiting medium voltage fuse, single barrel design
• Voltage Rating: 4800V AC
• Current Rating: 200A
• Dimensions: 15-7/8" length x 3" diameter
• Weight: 11 lb
• Standards: ANSI C37.46-2000, UL Recognized (UR)
• Applications: Transformer protection, motor circuits, industrial feeders
• Class Rating: R
• AIC rating: [email protected]
• Clip Center: 12.5"
• Barrels: 1
• Country of Origin: Mexico

Product Identification

• UPC: 782001800673
• GTIN: 00782001800673
