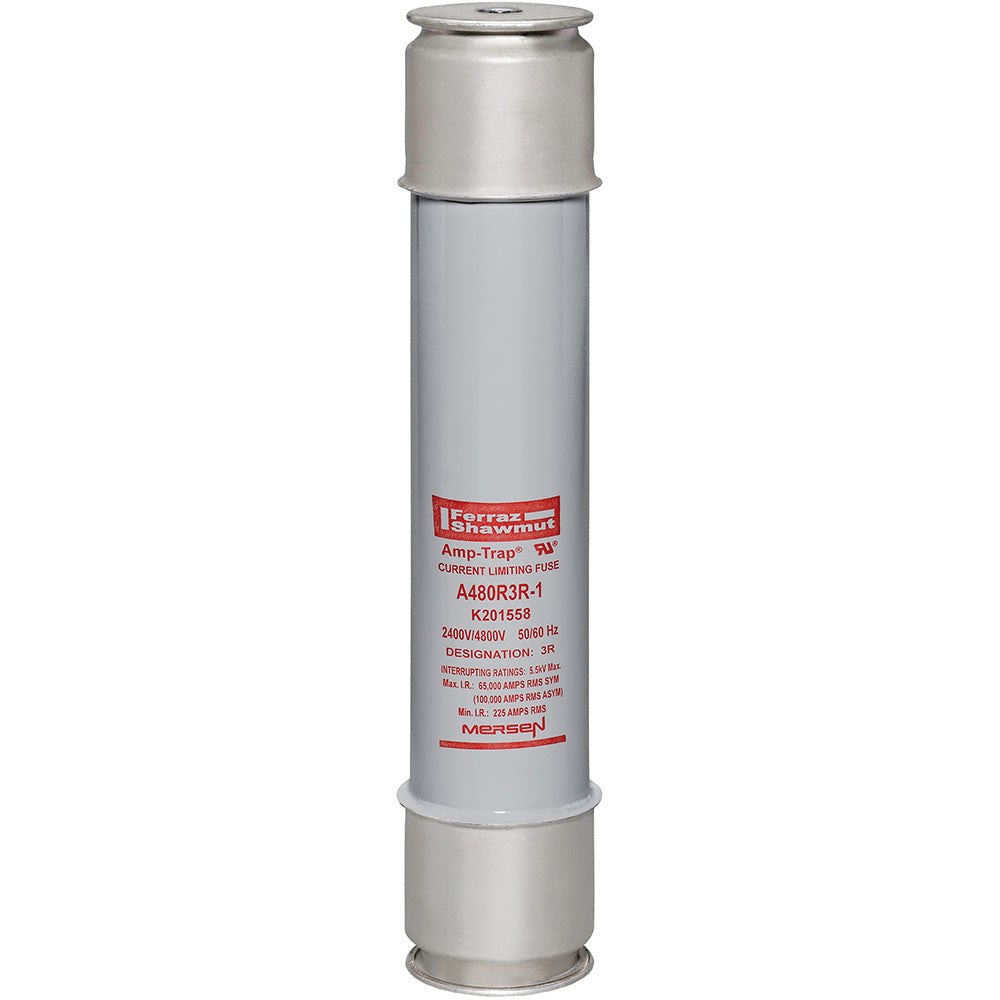

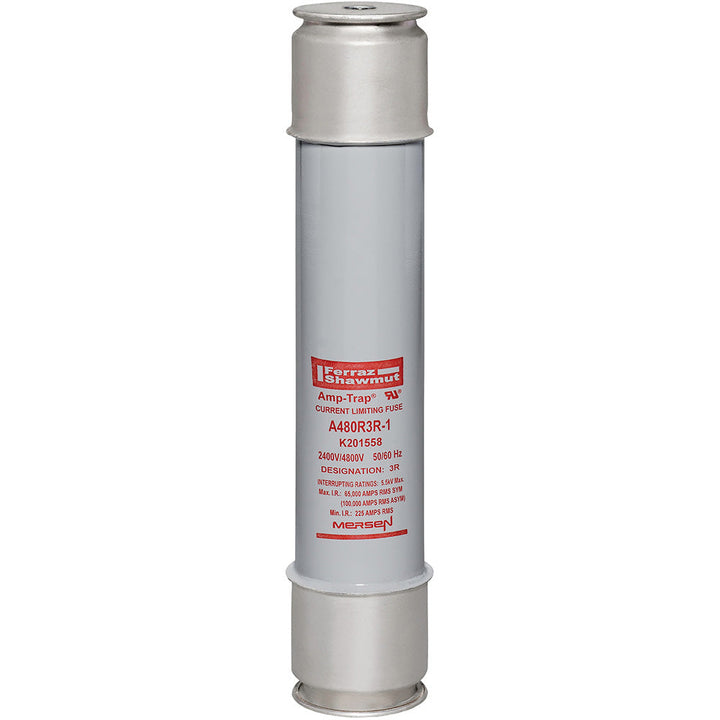

Mersen A480R3R-1 - Medium Voltage Fuse 4800V 100A (65kA AIC)

Mersen A480R3R-1 is a medium voltage fuse from the Amp-Trap family designed for high-current protection in industrial power systems. Rated for 4800V AC operation with a 100A current rating, this Class R fuse features a robust single-barrel construction measuring 15-7/8" in length and 3" in diameter with 12.5" clip center spacing. Compliant with ANSI C37.46-2000 and UL standards, it offers 65kA interrupting capacity at 4.8kV for reliable circuit protection in utility and industrial applications.

Key Features & Specifications

• Type: Medium voltage current-limiting fuse, Class R, single barrel design
• Voltage Rating: 4800V AC
• Current Rating: 100A
• Dimensions: 15-7/8" length x 3" diameter
• Standards: ANSI C37.46-2000, UL Recognized (UR)
• Applications: Industrial power distribution, utility protection
• Weight: 11 lb
• AIC rating: [email protected]
• Clip Center: 12.5"
• Certification: UL Recognized, UR

Product Identification

• UPC: 782001800697
• GTIN: 00782001800697
