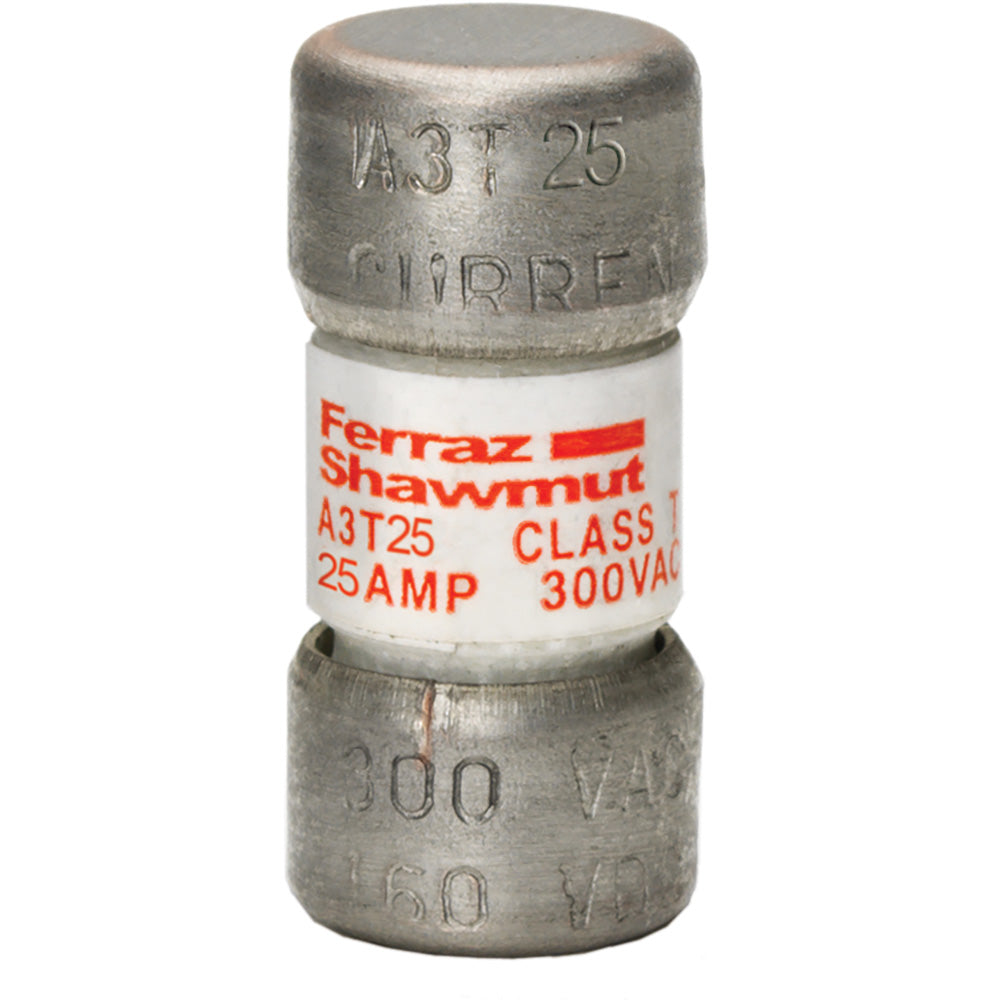

Mersen A3T25 - Class T Fuse 25A 300V (200kA AIC)

Mersen A3T25 is a Class T low-voltage fuse designed for high-performance circuit protection in industrial applications. It features a 300V AC/DC voltage rating and 25A current rating with a compact 0.41-inch diameter cylindrical design constructed for reliable operation. This UL-recognized fuse meets industry standards with a 200kA interrupting capacity at 300V, providing robust short-circuit protection. Its single-barrel construction and 5 lb weight make it suitable for panelboards, switchgear, and motor control centers requiring Type T fuse protection.

Key Features & Specifications

• Type: Class T fast-acting low-voltage fuse with cylindrical design
• Voltage Rating: 300V AC/DC
• Current Rating: 25A
• Dimensions: 0.41" diameter
• Standards: UL recognized
• Applications: Industrial panelboards, switchgear, motor control
• AIC rating: 200kA@300V
• Class Rating: T
• Barrels: 1
• Weight: 5 lb

Product Identification

• UPC: 782001890087
• GTIN: 00782001890087
