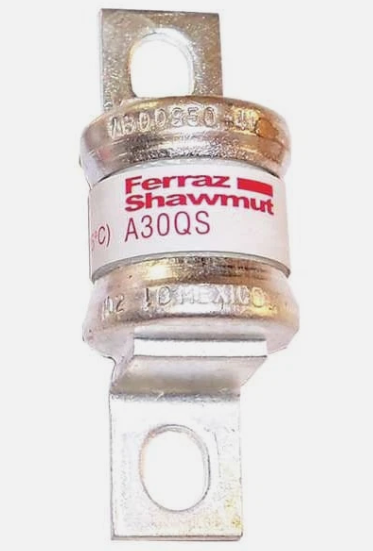

Cutler Hammer A30QS9-1 - Low Voltage Fuse 9A 300V (200kA AIC Rating)

The Cutler Hammer A30QS9-1 is a low voltage current-limiting fuse from the Amp-Trap family, engineered to provide superior short-circuit protection for electrical circuits. It features a 9A current rating and 300V AC voltage rating, with an impressive 200kA interrupting capacity at rated voltage. The fuse utilizes a single-barrel ferrule connection design with a compact 0.56-inch diameter and standard 2-inch length, constructed for reliable performance in demanding environments. This unit meets multiple international standards including UL recognition, CSA approval, and CE certification, complying with Guide JFHR2 requirements. Typical applications include industrial control circuits, motor branch circuits, and panelboard protection where high fault current interruption is critical.

Key Features & Specifications

• Type: Low Voltage Current-Limiting Fuse, Amp-Trap Family, Single Barrel
• Voltage Rating: 300V AC
• Current Rating: 9A
• Dimensions: 2" Length x 0.56" Diameter
• Standards: UL Recognized, CSA Approved, CE Certified, Guide JFHR2
• Applications: Industrial Control Circuits, Motor Protection, Panelboards
• AIC Rating: 200kA@300V
• Connection: Ferrule
• Barrels: 1
• Weight: 5.19 lb
• Certification: CE, UL Recognized, Guide JFHR2, CSA Approved
• Family: Amp-Trap
• Country of Origin: Tunisia

Product Identification

• UPC: 782001311872
