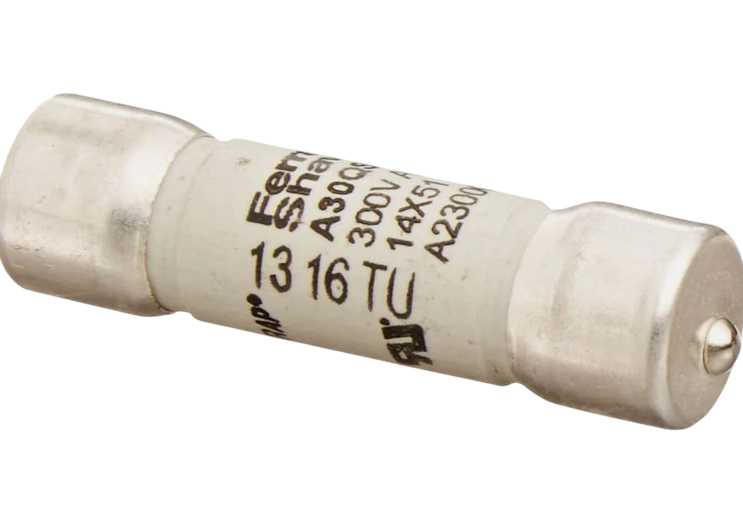

Cutler Hammer A30QS8-1 - Low Voltage Current-Limiting Fuse 8A 300V (200kA AIC)

Cutler Hammer A30QS8-1 is a low voltage current-limiting fuse from the Amp-Trap family designed to provide superior short-circuit protection in industrial electrical systems. It features a 300V AC voltage rating and an 8A current rating, with an impressive 200kA interrupting capacity at 300V to safely clear high-level faults. The fuse construction utilizes a single-barrel design with ferrule connections, measuring 2 inches in length with a 0.56-inch diameter and weighing 5.19 lb for robust physical characteristics. This component meets multiple industry standards including UL recognition, CSA approval, CE marking, and complies with Guide JFHR2 for reliable performance. Typical applications include protection of motor circuits, transformers, and power distribution equipment where high interrupting capacity and current limitation are critical requirements.

Key Features & Specifications

• Type: Low Voltage Current-Limiting Fuse, Amp-Trap Family, Single Barrel
• Voltage Rating: 300V AC
• Current Rating: 8A
• Dimensions: 2" Length x 0.56" Diameter
• Weight: 5.19 lb
• Standards: UL Recognized, CSA Approved, CE Marked, Guide JFHR2
• Applications: Motor Circuit Protection, Transformer Protection, Power Distribution Systems
• AIC Rating: 200kA@300V
• Connection: Ferrule
• Barrels: 1
• Manufacturer: Eaton
• Country of Origin: Tunisia

Product Identification

• UPC: 782001311865
