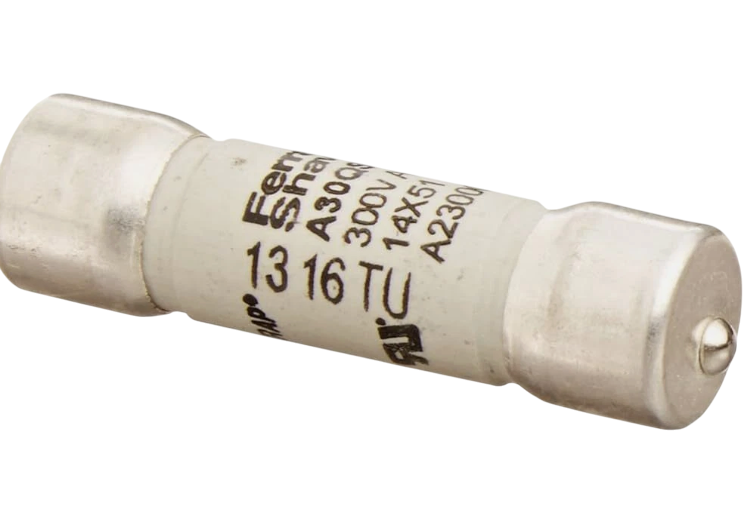

Ferraz Shawmut A30QS12-1 - Low Voltage Fuse 12A 300V (200kA AIC)
Regular price
$45.44
$45.44
Regular price
Sale price
$45.44
$45.44
Save $-45.44
/
- Low stock - 10 items left
- Backordered, shipping soon
Ferraz Shawmut A30QS12-1 is a low-voltage current-limiting fuse designed for circuit protection in industrial electrical systems. It features a 300V AC rating with a 12A current capacity and 200kA interrupting capacity at 300V, housed in a compact ferrule-connected design with a 0.56-inch diameter and 2-inch length. The fuse meets CE, UL Recognized (Guide JFHR2), and CSA standards for safety compliance, making it suitable for motor control centers, power distribution panels, and industrial machinery protection.
Key Features & Specifications
Key Features & Specifications
- Type: Current-limiting low-voltage fuse with ferrule connection
- Voltage Rating: 300V AC
- Current Rating: 12A
- Dimensions: 2" length x 0.56" diameter
- Standards: CE, UL Recognized (JFHR2), CSA Approved
- Applications: Industrial power distribution, motor protection, panelboards
- AIC rating: 200kA@300V
- Connection: Ferrule
- Barrels: 1
- Certification: UL Recognized, CSA, CE
- UPC: 782001311896
