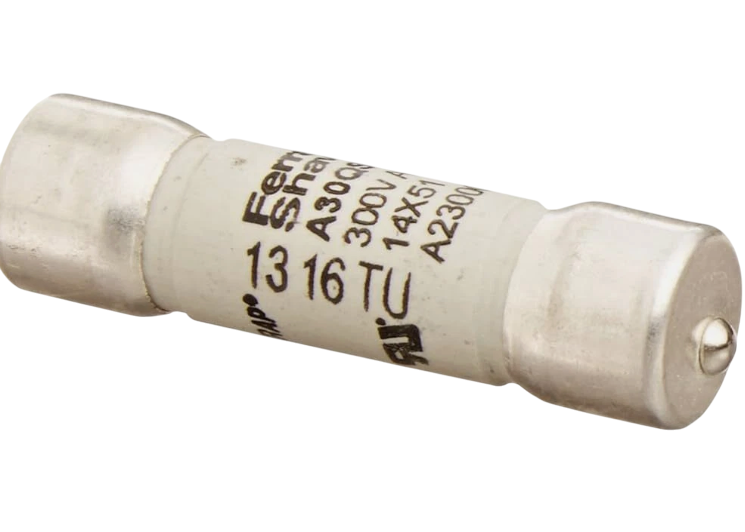

Cutler Hammer A30QS1-1 - Low Voltage Current-Limiting Fuse 1A 300V (200kA AIC)

Cutler Hammer A30QS1-1 is a low voltage current-limiting fuse from the Amp-Trap family designed to provide reliable overcurrent and short-circuit protection in industrial electrical systems. It features a 1A current rating and 300V AC voltage rating with a high 200kA interrupting capacity at 300V for superior fault protection. The fuse construction utilizes a single-barrel design with ferrule connections, measuring 2 inches in length and 0.56 inches in diameter with a weight of 5.19 lb. It complies with multiple industry standards including UL Recognition, CSA Approval, and CE certification under Guide JFHR2. This fuse is typically applied in motor branch circuits, transformers, and power distribution equipment requiring precise current protection.

Key Features & Specifications

• Type: Low voltage current-limiting fuse, Amp-Trap family, single barrel design with ferrule connections
• Voltage Rating: 300V AC
• Current Rating: 1A
• Dimensions: 2" length x 0.56" diameter
• Weight: 5.19 lb
• Standards: UL Recognized, CSA Approved, CE certified, Guide JFHR2
• Applications: Motor branch circuits, transformer protection, power distribution systems
• AIC rating: 200kA@300V
• Connection: Ferrule
• Barrels: 1
• Certification: CE, UL Recognized, Guide JFHR2, CSA Approved
• Family: Amp-Trap
• Country of Origin: Tunisia

Product Identification

• UPC: 782001311797
