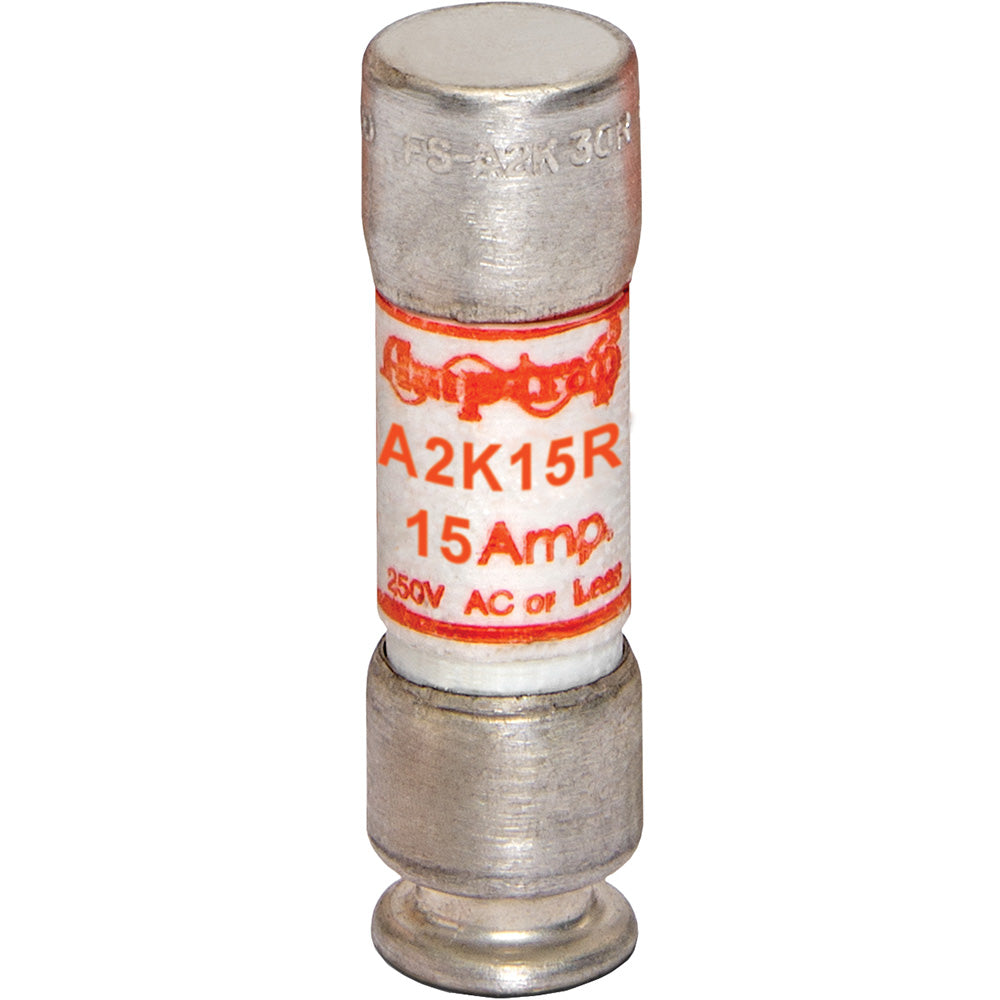

Mersen A2K15R - RK1 Class Fuse 15A 250V (200kA AIC)

Mersen A2K15R is a low-voltage current-limiting fuse from the A2K-R series, designed for circuit protection in industrial electrical systems. This RK1-class fuse features a 250V AC rating with a 15A current capacity and 200kA interrupting capacity at rated voltage, housed in a compact 0.56-inch diameter x 2-inch body with single-barrel construction. Compliant with industry standards for current-limiting protection, it utilizes time-delay characteristics to prevent nuisance tripping while safeguarding against short circuits. Typical applications include motor control centers, transformers, and power distribution equipment requiring reliable overcurrent protection.

Key Features & Specifications

• Type: Current-limiting time-delay fuse (RK1 class)
• Voltage Rating: 250V AC
• Current Rating: 15A
• Dimensions: 0.56" diameter x 2" length
• Weight: 0.05 lb
• Standards: UL/CSA recognized
• Applications: Industrial power distribution, motor protection
• AIC rating: 200kA@250V
• Class Rating: RK1
• Barrels: 1
• Country of Origin: Mexico

Product Identification

• UPC: 782001915063
• GTIN: 00782001915063
