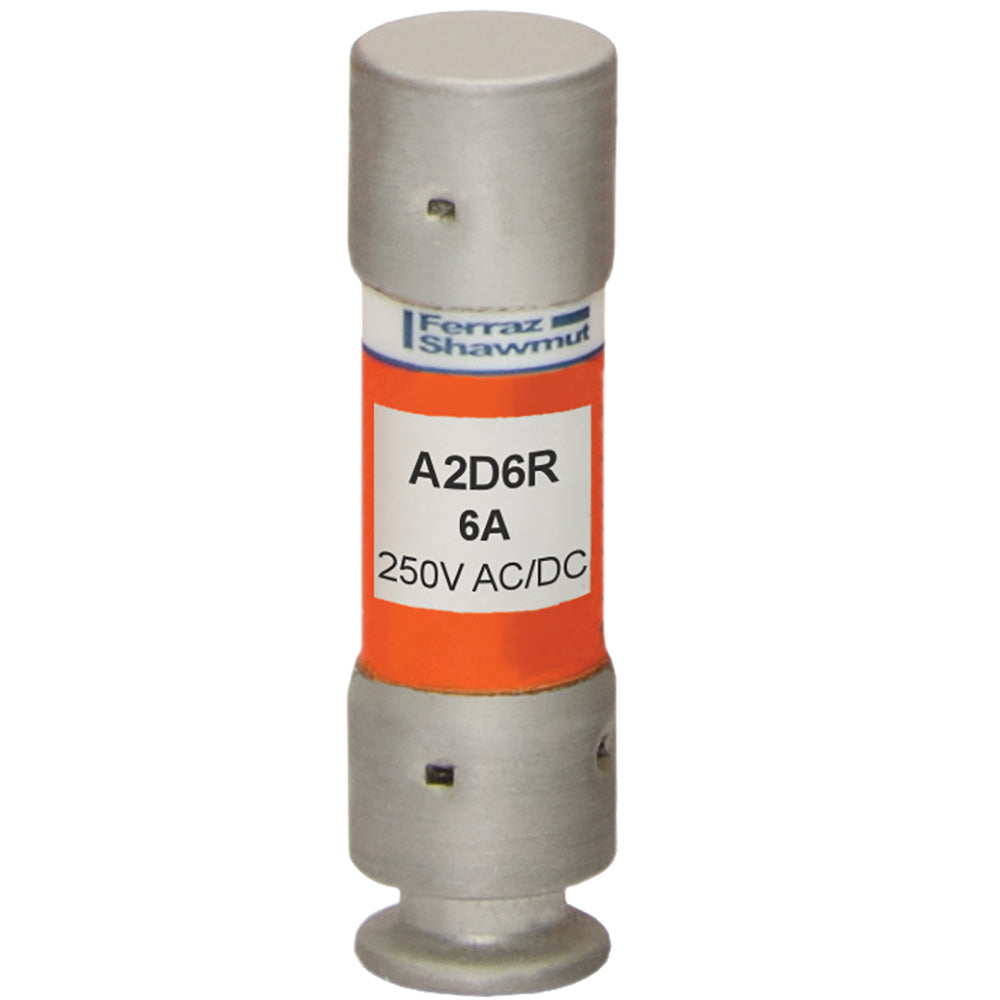

Mersen A2D6R - RK1 Fuse 6A 250V (200kA AIC)

Mersen A2D6R is a low-voltage current-limiting fuse from the Amp-Trap 2000 family, designed for circuit protection in industrial electrical systems. This RK1-class fuse features a 250V AC/DC voltage rating and 6A current rating with a 200kA interrupting capacity at 250V, housed in a compact 0.56" diameter x 2" cylindrical body weighing 0.04 lb. The single-barrel construction meets CSA C22.2 No. 248.12 and UL 248-12 standards (File E2137) for reliable overcurrent protection in motor control centers, transformers, and power distribution equipment.

Key Features & Specifications

• Type: A2D-R current-limiting fuse with time-delay characteristics
• Voltage Rating: 250V AC/DC
• Current Rating: 6A
• Dimensions: 0.56" diameter x 2" length
• Standards: CSA C22.2 No. 248.12, UL 248-12 (File E2137)
• Applications: Motor circuits, transformers, industrial power distribution
• Class Rating: RK1
• Barrels: 1
• AIC rating: 200kA@250V
• Weight: 0.04 lb
• Country of Origin: Mexico

Product Identification

• UPC: 782001990756
• GTIN: 00782001990756
