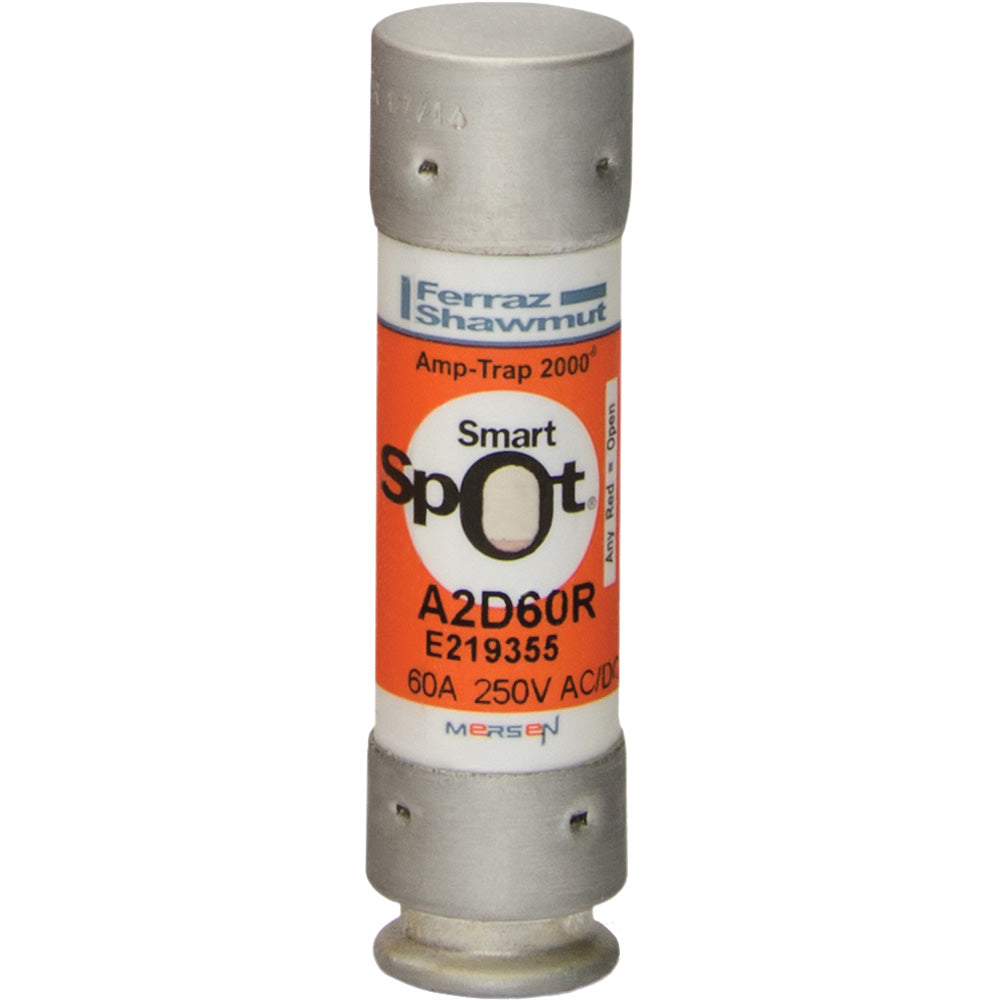

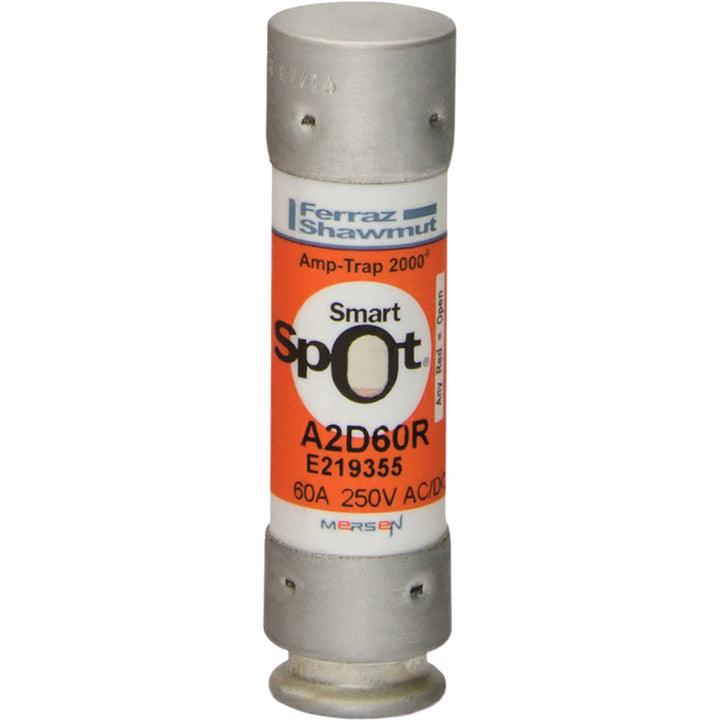

Mersen A2D60R - RK1 Class Fuse 60A@250V (200kA AIC)

Mersen A2D60R is a low-voltage current-limiting fuse from the Amp-Trap 2000 family, designed for circuit protection in industrial electrical systems. Rated for 250V AC/DC operation with a 60A current capacity, it features an RK1 class rating and delivers 200kA interrupting capacity at rated voltage. The compact cylindrical design measures 1.06" in diameter with a 3" body length, constructed with time-delay characteristics for motor circuit protection. Certified to CSA C22.2 No. 248.12 and UL 248-12 standards (File E2137), this Mexico-manufactured fuse is commonly deployed in panelboards, switchgear, and industrial control equipment requiring reliable short-circuit protection.

Key Features & Specifications

• Type: A2D-R time-delay current-limiting fuse
• Voltage Rating: 250V AC/DC
• Current Rating: 60A
• Dimensions: 1.06" diameter x 3" length
• Weight: 5 lb
• Standards: CSA C22.2 No. 248.12, UL 248-12 (File E2137)
• Applications: Industrial control circuits, motor protection
• Class Rating: RK1
• Barrels: 1
• AIC rating: 200kA@250V
• Country of Origin: Mexico

Product Identification

• UPC: 782001990947
• GTIN: 00782001990947
