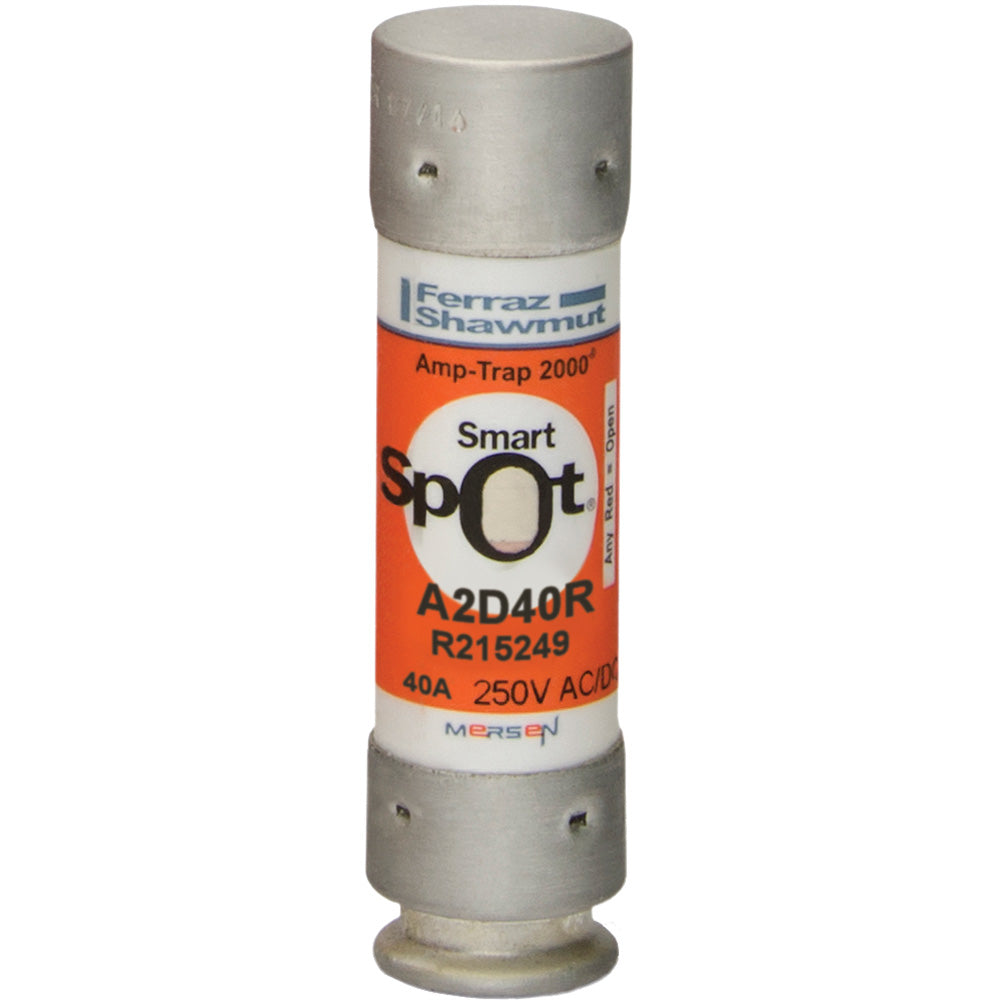

Mersen A2D40R - Low Voltage Fuse 40A 250V (200kA AIC Rk1 Class)
Regular price
$21.48
$21.48
Regular price
$62.21
$62.21
Sale price
$21.48
$21.48
Save $40.73
/
- In stock, ready to ship
- Backordered, shipping soon
Mersen A2D40R is a low-voltage current-limiting fuse from the Amp-Trap 2000 family, designed for circuit protection in industrial electrical systems. Rated for 250V AC/DC operation with a 40A current capacity, it features a compact cylindrical design measuring 0.81" in diameter and 3" in length with a single-barrel Rk1 class construction. The fuse meets CSA C22.2 No. 248.12 and UL 248-12 standards (File E2137), offering 200kA interrupting capacity at 250V for reliable short-circuit protection. Typical applications include motor control centers, switchgear, and power distribution panels requiring high-performance fault current interruption.
Key Features & Specifications
Key Features & Specifications
- Type: A2D-R current-limiting fuse with single-barrel Rk1 class design
- Voltage Rating: 250V AC/DC
- Current Rating: 40A
- Dimensions: 0.81" diameter x 3" length
- Weight: 0.14 lb
- Standards: CSA C22.2 No. 248.12, DC UL 248, UL 248-12 File E2137
- AIC rating: 200kA@250V
- Applications: Motor control centers, switchgear, power distribution
- Class Rating: Rk1
- Barrels: 1
- Country of Origin: Mexico
- UPC: 782001990916
- GTIN: 00782001990916
