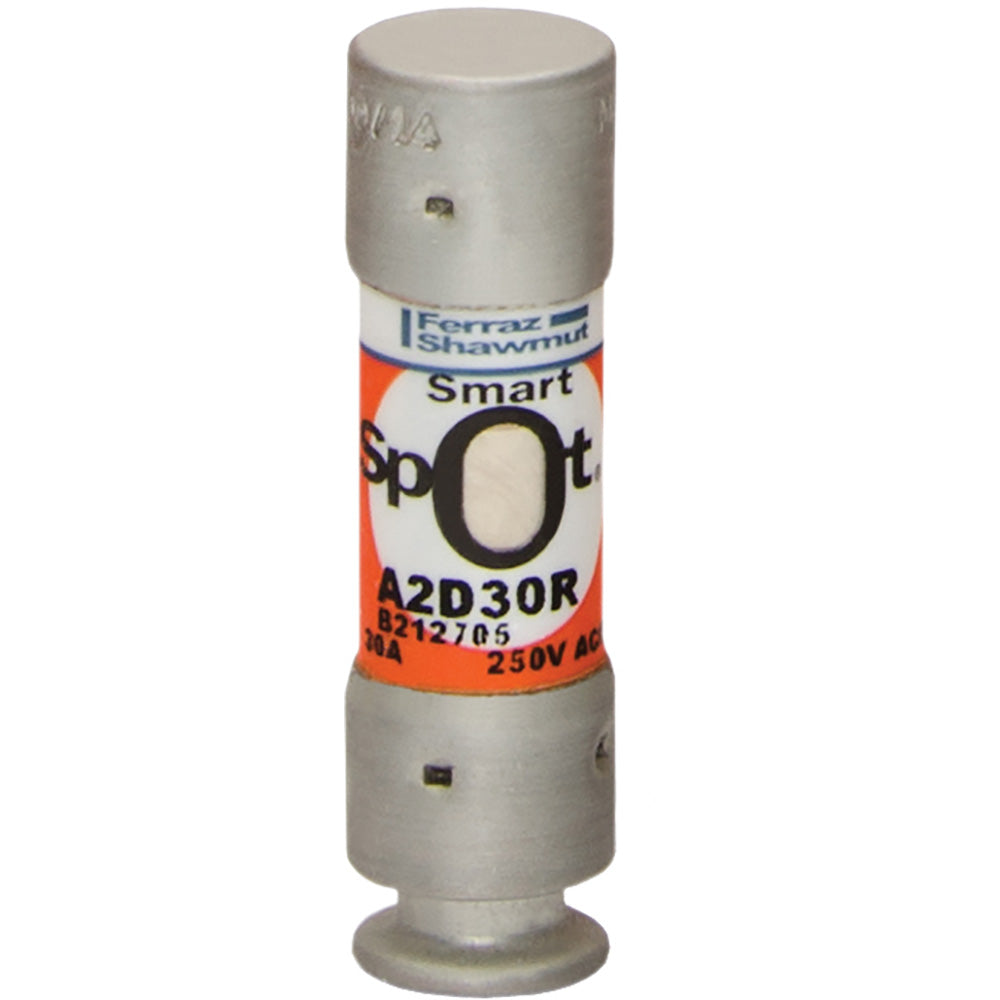

Mersen A2D30R - Class RK1 Fuse 30A 250V (200kA AIC)

Mersen A2D30R is a Class RK1 low-voltage fuse designed for circuit protection in industrial electrical systems. It features a 250V AC/DC voltage rating and 30A current capacity with a 200kA interrupting rating at 250V for reliable short-circuit protection. The fuse has a compact cylindrical design with 0.56" diameter and 2" length, constructed with durable materials meeting CSA C22.2 No. 248.12 and UL 248-12 standards. Certified for both AC and DC applications (UL File E2137), it's commonly used in panelboards, switchgear, and motor control centers requiring RK1 time-delay protection.

Key Features & Specifications

• Type: Amp-Trap 2000 series time-delay fuse (A2D-R type)
• Voltage Rating: 250V AC/DC
• Current Rating: 30A
• Dimensions: 2" length x 0.56" diameter
• Weight: 5 lb
• Standards: CSA C22.2 No. 248.12, UL 248-12 (File E2137)
• Applications: Industrial panelboards, motor circuits, switchgear
• Class Rating: RK1
• Barrels: 1
• AIC rating: 200kA@250V
• Country of Origin: Mexico

Product Identification

• UPC: 782001990862
• GTIN: 00782001990862
