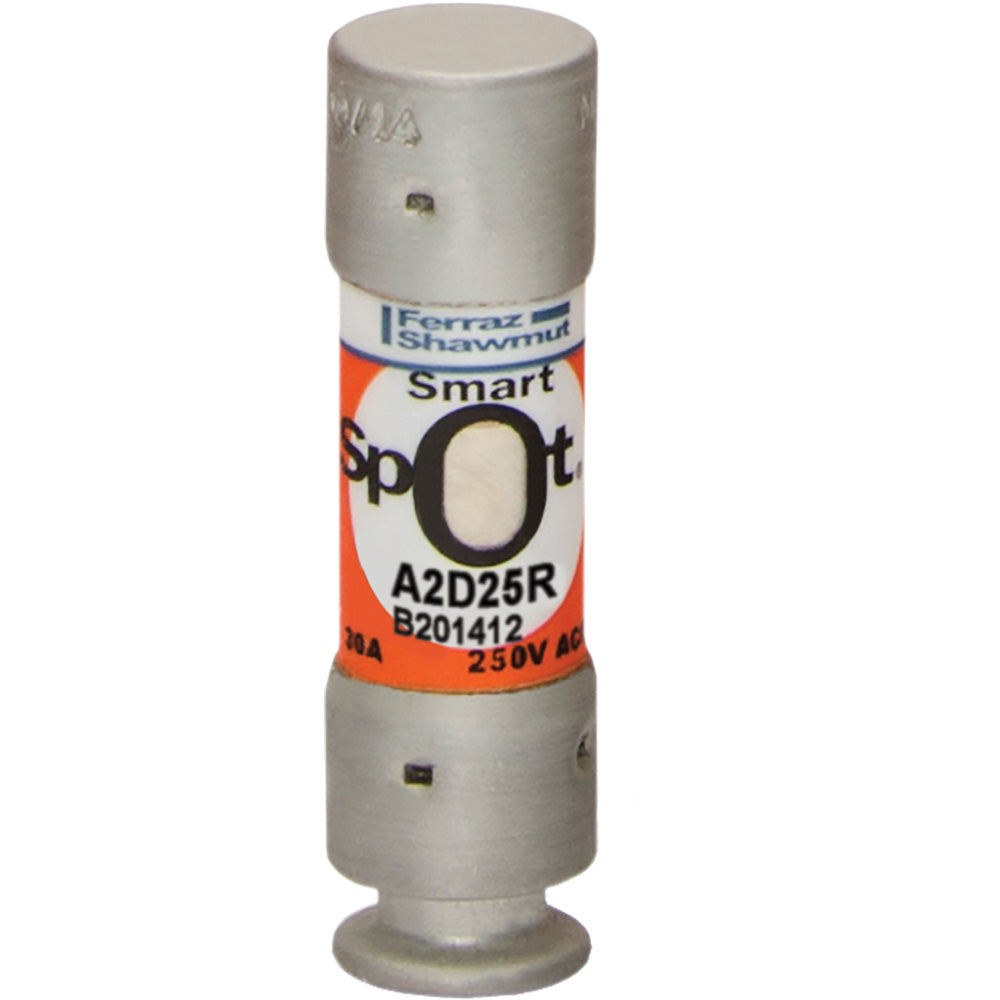

Cutler Hammer A2D25R - Class RK1 Fuse 25A 250V (200kA AIC Rating)

The Cutler Hammer A2D25R is a Class RK1 low-voltage current-limiting fuse designed to provide superior short-circuit protection for industrial electrical systems. It features a 25A current rating and 250V voltage rating with an impressive 200kA interrupting capacity at rated voltage, ensuring reliable circuit protection under fault conditions. The fuse measures 2 inches in length with a 0.56-inch diameter and weighs 0.04 lb, constructed as a single-barrel design for straightforward installation. It complies with CSA C22.2 No. 248.12 and UL 248-12 standards (File E2137), meeting rigorous safety requirements for industrial applications. This Amp-Trap 2000 series fuse is commonly deployed in motor control centers, panelboards, and industrial control circuits where high-interrupting capacity protection is essential.

Key Features & Specifications

• Type: Class RK1 current-limiting fuse, single barrel design
• Voltage Rating: 250V AC
• Current Rating: 25A
• Dimensions: 2 inches length, 0.56 inches diameter
• Standards: CSA C22.2 No. 248.12, UL 248-12 File E2137
• Applications: Industrial control circuits, motor protection, panelboards
• AIC rating: 200kA@250V
• Class Rating: RK1
• Barrels: 1
• Weight: 0.04 lb
• Family: Amp-Trap 2000
• Country of Origin: Mexico

Product Identification

• UPC: 782001990855
• GTIN: 00782001990855
