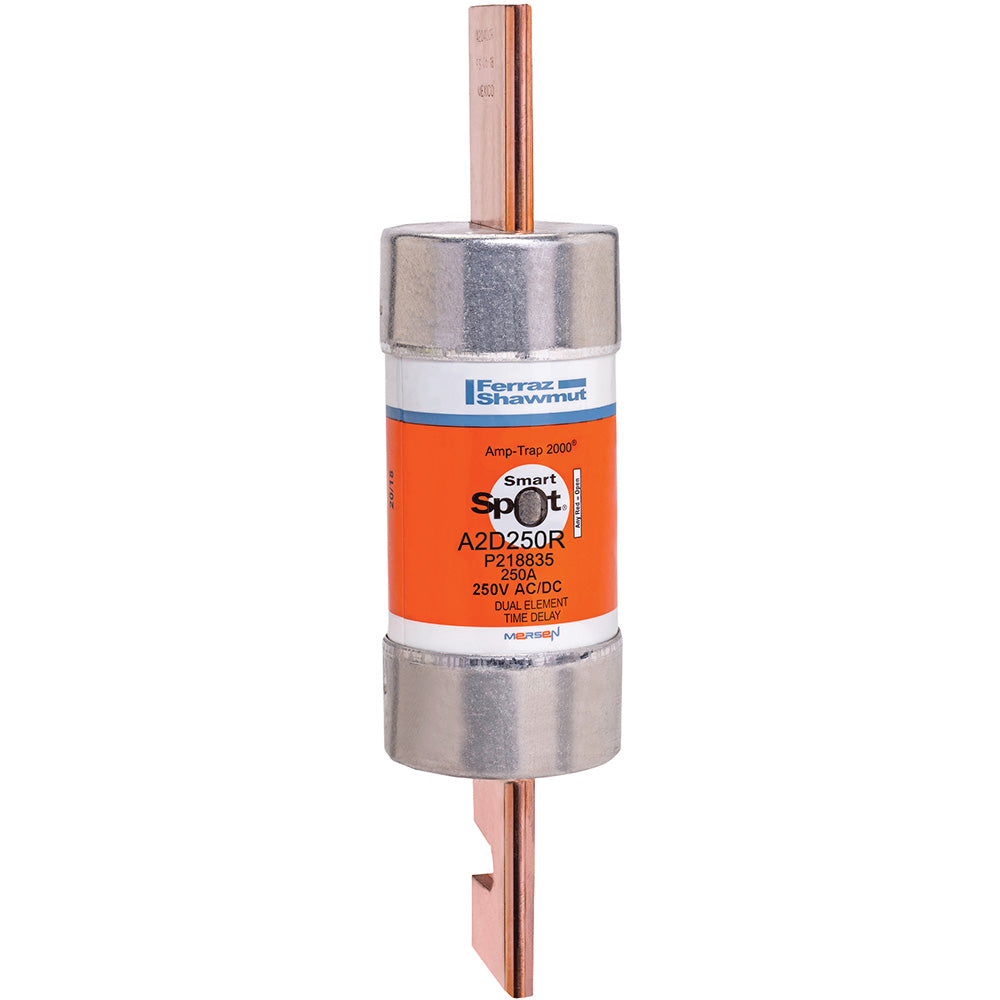

Cutler Hammer A2D250R - RK1 Class Fuse 250A 250V (200kA AIC Rating)

Cutler Hammer A2D250R is a low voltage current-limiting fuse designed for industrial circuit protection applications. This RK1 class fuse features a 250A current rating and 250V voltage rating with an impressive 200kA interrupting capacity at rated voltage. Constructed as a single-barrel design with a 2.06-inch diameter, the fuse utilizes current-limiting technology to protect electrical systems from short-circuit faults. It complies with industry standards for RK1 fuses, ensuring reliable performance in demanding environments. Typical applications include motor control centers, industrial panels, and electrical distribution systems where high fault current protection is required.

Key Features & Specifications

• Type: Current-limiting fuse, RK1 class, single barrel design
• Voltage Rating: 250V AC
• Current Rating: 250A
• Dimensions: 2.06-inch diameter
• Standards: RK1 class rating
• Applications: Industrial circuit protection, motor control centers, electrical distribution systems
• AIC rating: 200kA@250V
• Family: Amp-Trap 2000
• Barrels: 1
• Class Rating: RK1
• Weight: 1 lb

Product Identification

• UPC: 782001991128
• GTIN: 00782001991128
