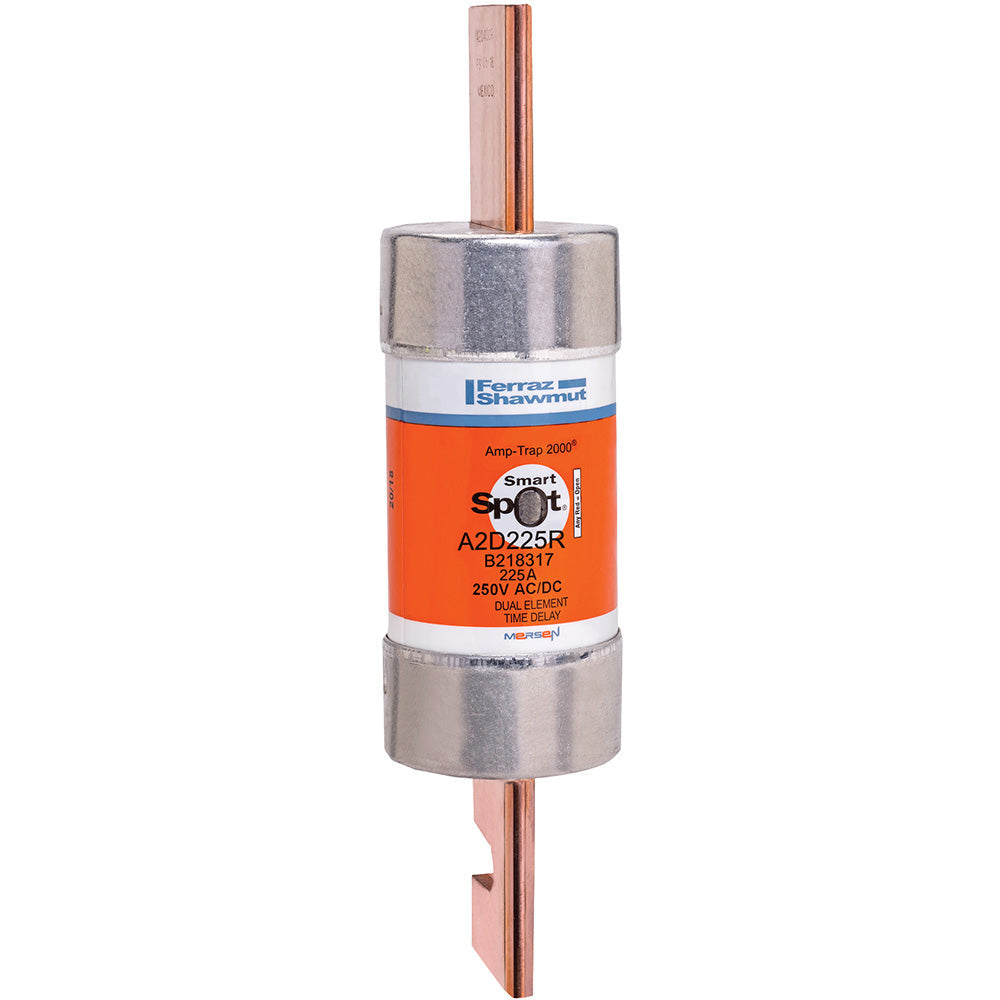

Mersen A2D225R - Low Voltage Fuse 225A (200kA AIC @250V RK1 Class)

Mersen A2D225R is a low-voltage current-limiting fuse designed for circuit protection in industrial power distribution systems. This RK1-class fuse features a 250V AC/DC voltage rating and 225A current rating with a 200kA interrupting capacity, housed in a durable 2.06-inch diameter barrel construction measuring 8-5/8 inches in length. Certified to CSA C22.2 No. 248.12 and UL 248-12 standards, the Amp-Trap 2000 series fuse provides reliable protection for motor control centers, switchgear, and industrial control panels.

Key Features & Specifications

• Type: A2D-R current-limiting low-voltage fuse
• Voltage Rating: 250V AC/DC
• Current Rating: 225A
• Dimensions: 8-5/8" length x 2.06" diameter
• Weight: 1 lb
• Standards: CSA C22.2 No. 248.12, UL 248-12 (File E2137)
• Applications: Motor control centers, industrial switchgear
• Class Rating: RK1
• AIC rating: 200kA@250V
• Barrels: 1
• Country of Origin: Mexico

Product Identification

• UPC: 782001991111
• GTIN: 00782001991111
