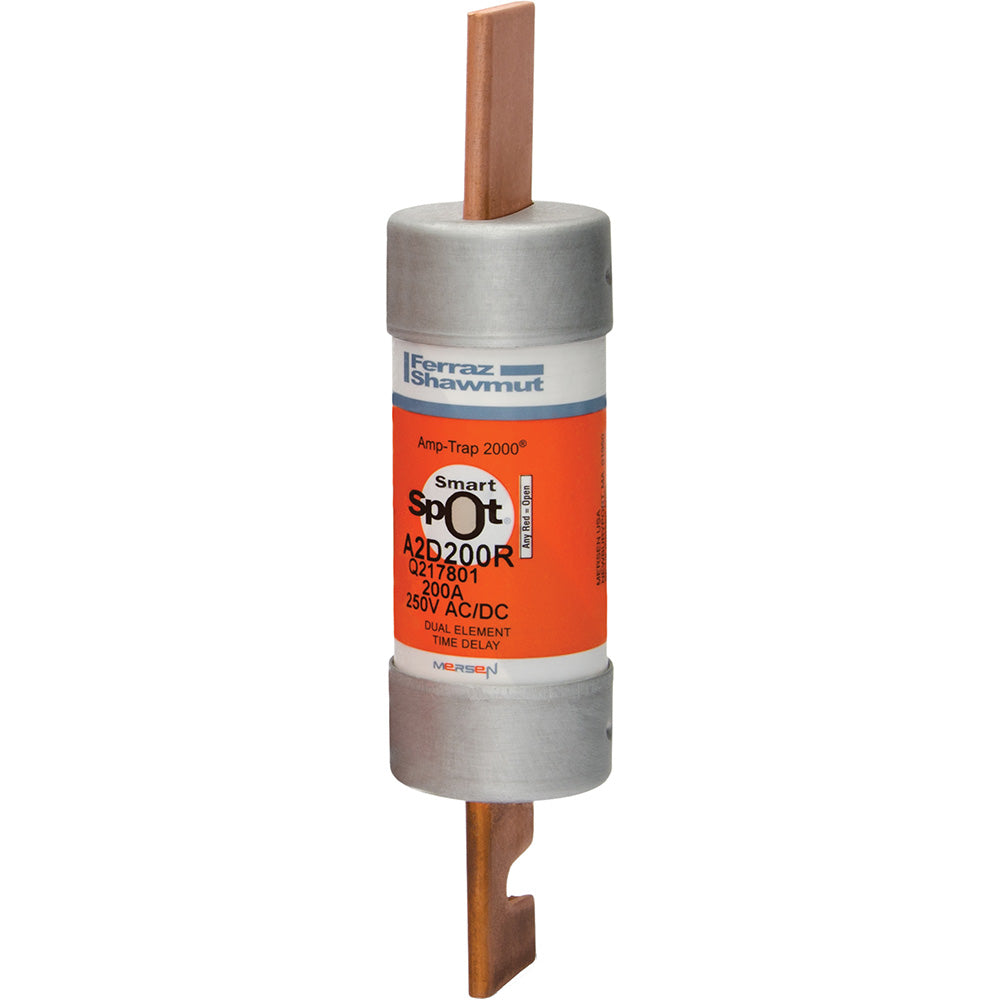

Mersen A2D200R - RK1 Class Fuse 200A@250V (200kA AIC)

Mersen A2D200R is a low-voltage current-limiting fuse from the Amp-Trap 2000 family, designed for circuit protection in industrial power distribution systems. It features a 250V AC voltage rating and 200A current rating with a 200kA interrupting capacity at rated voltage, housed in a single-barrel RK1-class construction with a 2.06" diameter. The fuse meets industry standards for time-delay protection, constructed with durable materials for reliable operation in demanding environments. Typical applications include motor branch circuits, transformers, and feeder protection where high fault current interruption is required.

Key Features & Specifications

• Type: A2D-R time-delay current-limiting fuse (RK1 class)
• Voltage Rating: 250V AC
• Current Rating: 200A
• Dimensions: 2.06" diameter
• Standards: UL/CSA listed
• Applications: Industrial power distribution, motor protection
• Class Rating: RK1
• Barrels: 1
• AIC rating: 200kA@250V
• Weight: 5 lb

Product Identification

• UPC: 782001991081
• GTIN: 00782001991081
