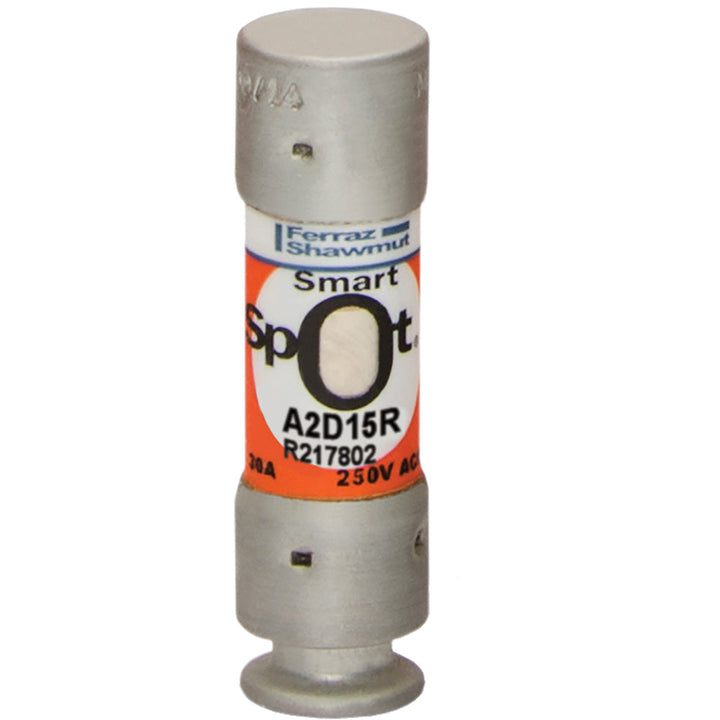

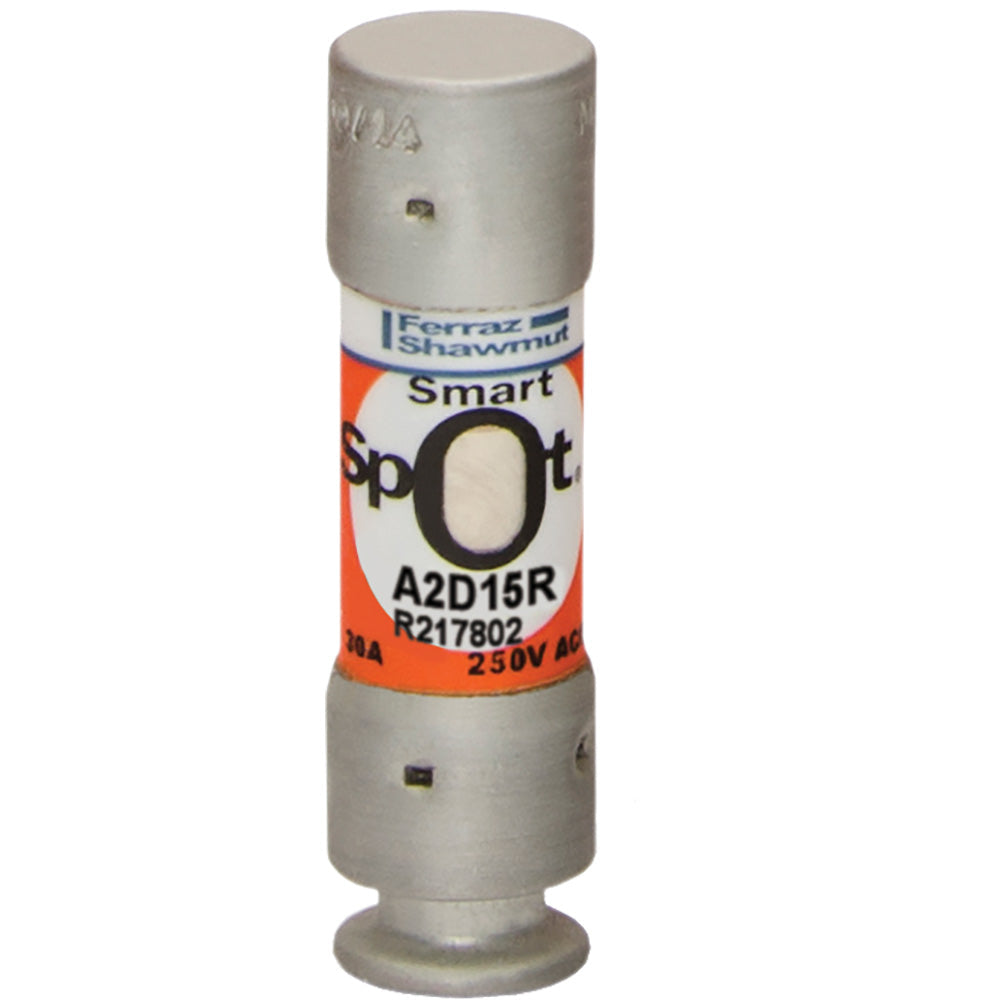

Mersen A2D15R - RK1 Class Fuse 15A/250V (200kA AIC)

Mersen A2D15R is a low-voltage fuse designed for circuit protection in industrial electrical systems. This RK1-class Amp-Trap 2000 series fuse features a 250V AC rating with 15A current capacity and 200kA interrupting rating at 250V for high-fault protection. The compact single-barrel design measures 0.56" in diameter and weighs 0.04 lb, constructed to UL/CSA standards for reliable performance. Its time-delay characteristics provide motor circuit protection while resisting nuisance tripping from inrush currents. Typical applications include industrial control panels, motor branch circuits, and transformer protection where selective coordination is required.

Key Features & Specifications

• Type: A2D-R time-delay fuse, RK1 class
• Voltage Rating: 250V AC
• Current Rating: 15A
• Dimensions: 0.56" diameter
• Standards: UL/CSA listed
• Applications: Motor circuits, control panels, transformers
• Class Rating: RK1
• Barrels: 1
• AIC rating: 200kA@250V
• Weight: 0.04 lb

Product Identification

• UPC: 782001990824
• GTIN: 00782001990824
