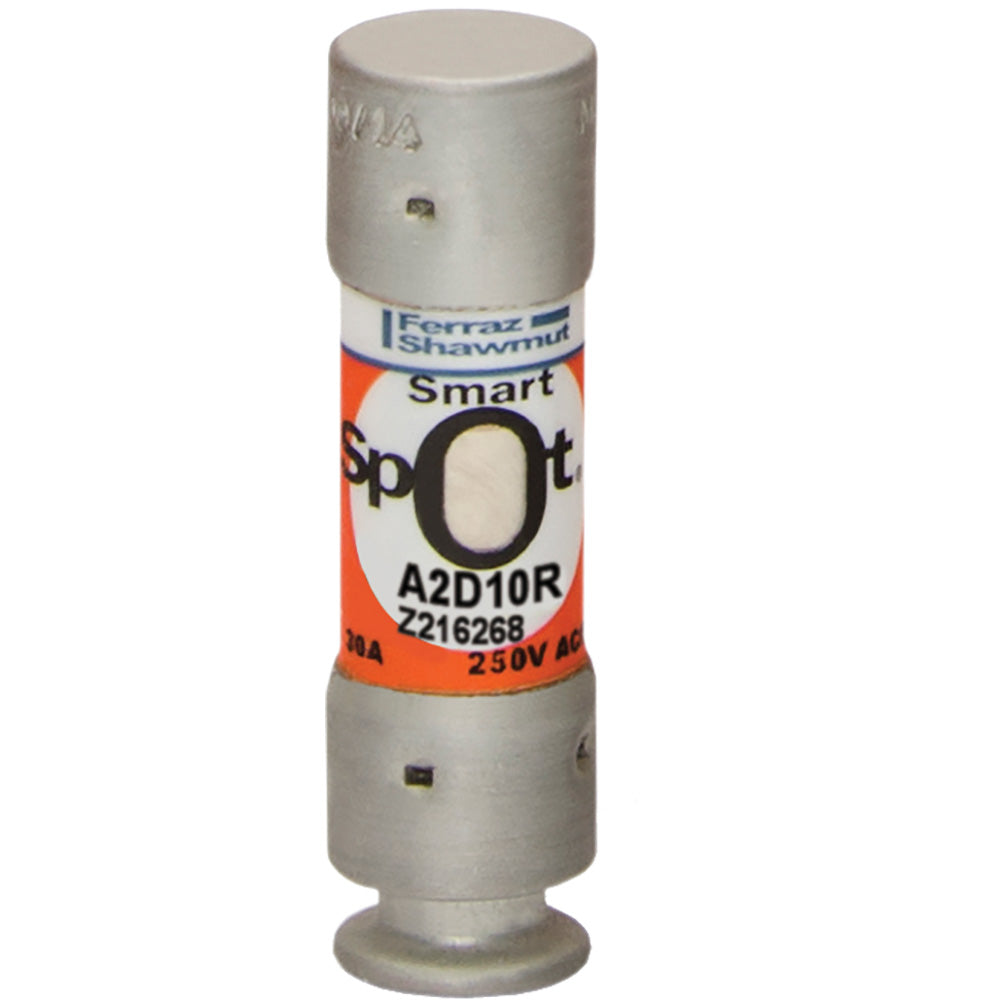

Mersen A2D10R - RK1 Class Fuse 10A 250V (200kA AIC)

Mersen A2D10R is a low-voltage current-limiting fuse from the Amp-Trap 2000 family, designed for circuit protection in industrial electrical systems. This RK1-class fuse features a 250V AC/DC voltage rating and 10A current rating with a 200kA interrupting capacity at rated voltage, housed in a compact 0.56" diameter x 2" body with single-barrel construction. Certified to CSA C22.2 No. 248.12 and UL 248-12 standards (File E2137), it provides reliable protection for motor control centers, panelboards, and other equipment requiring high fault current interruption.

Key Features & Specifications

• Type: A2D-R current-limiting fuse with time-delay characteristics
• Voltage Rating: 250V AC/DC
• Current Rating: 10A
• Dimensions: 0.56" diameter x 2" length
• Weight: 0.04 lb
• Class Rating: RK1
• AIC Rating: 200kA@250V
• Certification: CSA C22.2 No. 248.12, UL 248-12 (File E2137)
• Barrels: 1
• Country of Origin: Mexico

Product Identification

• UPC: 782001990800
• GTIN: 00782001990800
