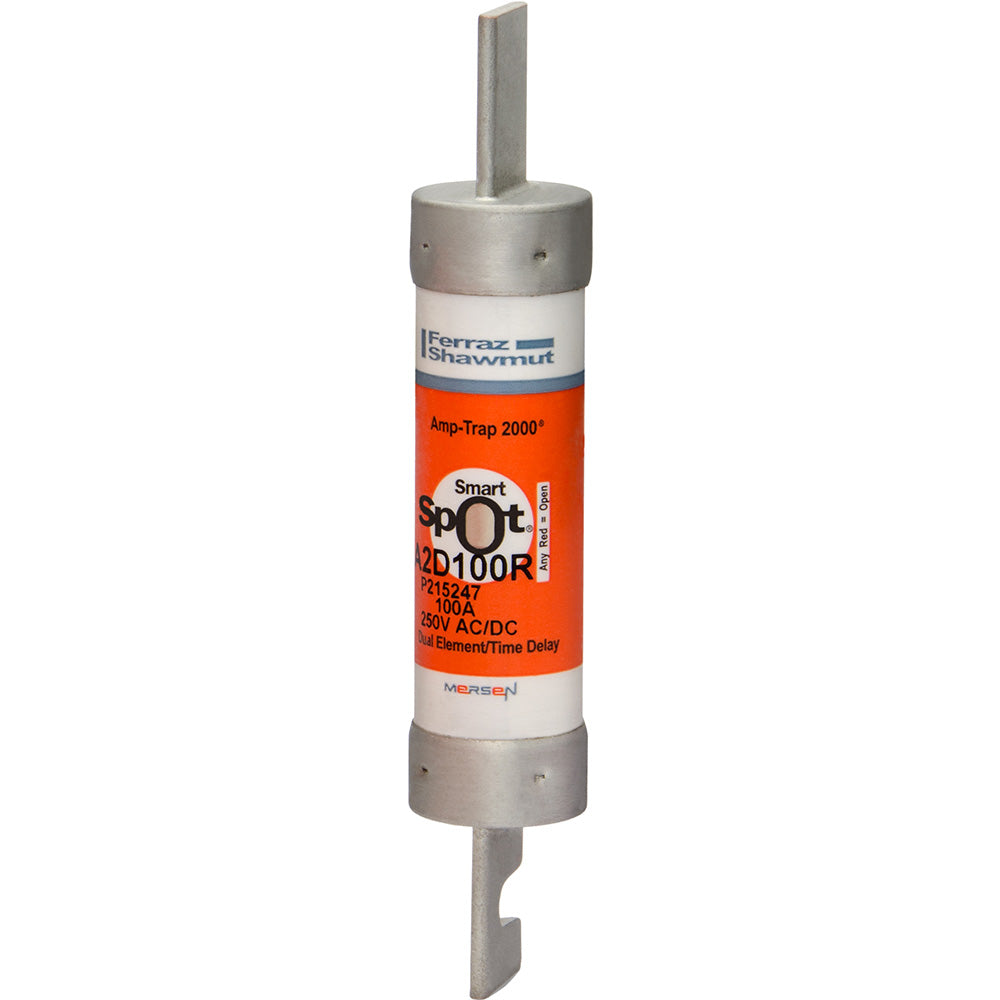

Mersen A2D100R - RK1 Class Fuse 100A@250V (200kA AIC)
Regular price
$30.37
$30.37
Regular price
$982.88
$982.88
Sale price
$30.37
$30.37
Save $952.51
/
- In stock, ready to ship
- Backordered, shipping soon
Mersen A2D100R is a low-voltage current-limiting fuse designed for circuit protection in industrial power distribution systems. This RK1-class fuse features a 250V AC/DC voltage rating and 100A current capacity, with a 200kA interrupting rating at 250V for high-fault protection. The fuse measures 5-7/8" in length with a 1.56" diameter, constructed with a single-barrel design and weighing 5 lb for robust performance. It complies with CSA C22.2 No. 248.12 and UL 248-12 standards (File E2137), ensuring reliable operation in motor control centers, switchgear, and panelboards requiring Type A2D-R protection.
Key Features & Specifications
Key Features & Specifications
- Type: Amp-Trap 2000 series current-limiting fuse (RK1 class)
- Voltage Rating: 250V AC/DC
- Current Rating: 100A
- Dimensions: 5-7/8" length x 1.56" diameter
- Weight: 5 lb
- Standards: CSA C22.2 No. 248.12, UL 248-12 (File E2137)
- AIC Rating: 200kA@250V
- Class Rating: RK1
- Barrels: 1
- Country of Origin: Mexico
- UPC: 782001991012
- GTIN: 00782001991012
