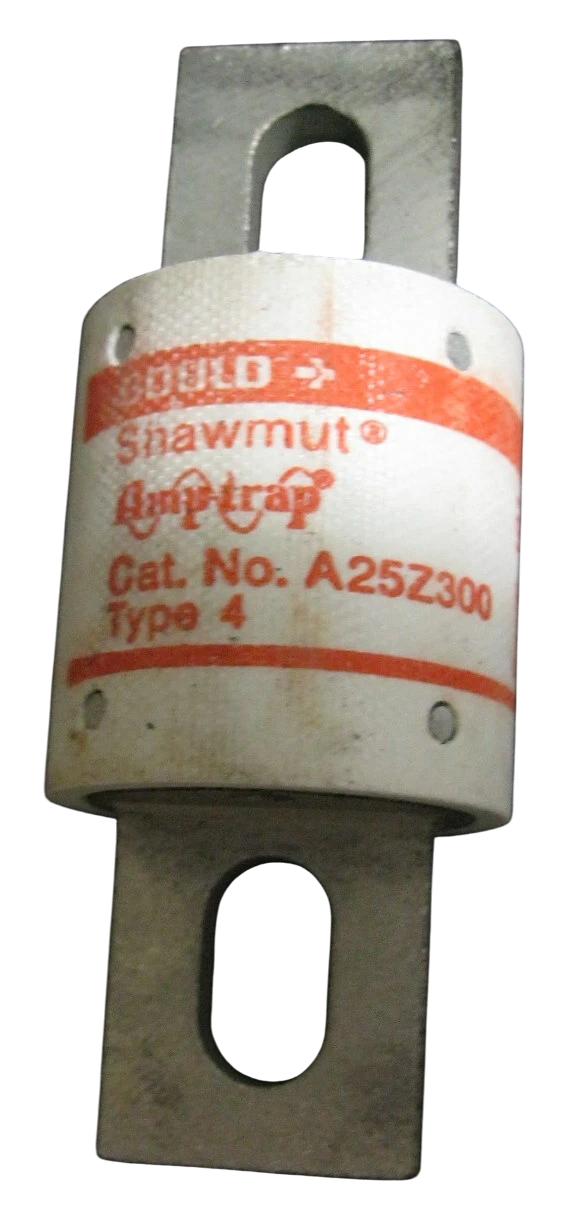

Ferraz Shawmut A25Z300-4 - Low Voltage Fuse 300A (100kA AIC @ 300V)

Ferraz Shawmut A25Z300-4 is a low-voltage current-limiting fuse designed for high-interrupting-capacity circuit protection in industrial applications. It features a 300V AC rating and 300A current capacity with a 100kA interrupting rating at 300V for reliable fault protection. The fuse employs a single-barrel bolt-in blade design with an EFA (Extremely Fast Acting) velocity characteristic for rapid response to overcurrent conditions. Compliant with industry standards for low-voltage fuses, it is part of the Amp-Trap family, engineered for demanding environments such as motor control centers, switchgear, and power distribution systems.

Key Features & Specifications

• Type: Low-voltage current-limiting fuse, bolt-in blade connection
• Voltage Rating: 300V AC
• Current Rating: 300A
• AIC Rating: 100kA @ 300V
• Diameter: 13.32 mm
• Velocity: EFA (Extremely Fast Acting)
• Barrels: 1
• Standards: UL/CSA compliant
• Applications: Motor control centers, switchgear, power distribution

Product Identification

• UPC: 78200194237
• GTIN: 00782001942373
