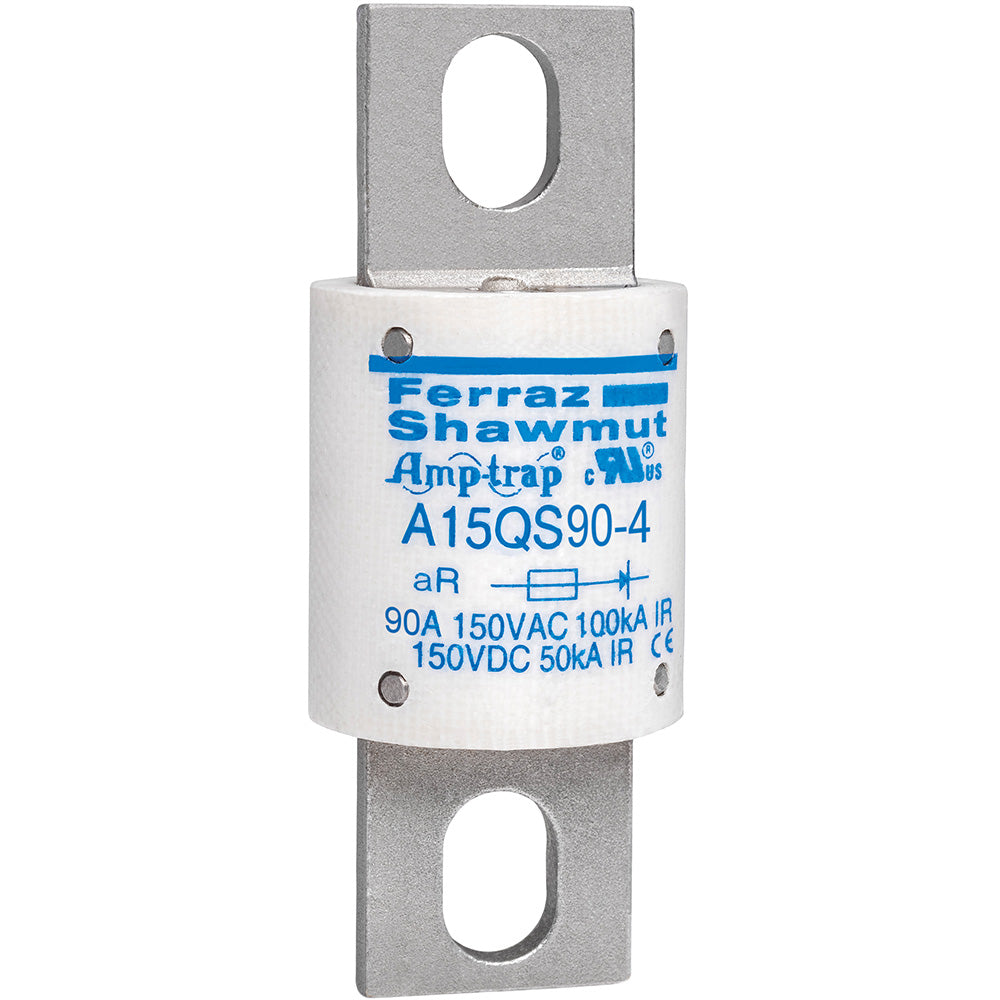

Cutler Hammer A15QS90-4 - Class L Fuse 90A (100kA AIC @150V)

Cutler Hammer A15QS90-4 is a low voltage current-limiting fuse from the Amp-Trap family designed to provide reliable overcurrent protection in industrial electrical systems. It features a 90A current rating and a 150V AC voltage rating, engineered to safely interrupt fault currents up to 100kA at its rated voltage. The fuse is constructed as a single-barrel unit with a diameter of 1.13 inches and a weight of 5.19 lb, utilizing a current-limiting design to protect sensitive equipment. It complies with industry standards for current-limiting fuses, ensuring safe operation in demanding environments. Typical applications include the protection of motor circuits, feeders, and branch circuits in industrial control panels and power distribution equipment.

Key Features & Specifications

• Type: Amp-Trap 2000 Class L, Current-Limiting, Low Voltage Fuse
• Voltage Rating: 150V AC
• Current Rating: 90A
• Dimensions: 1.13" Diameter
• Standards: UL Listed, CSA Certified
• Applications: Industrial Motor Protection, Feeder and Branch Circuit Protection
• AIC rating: 100,000A @ 150V AC
• Barrels: 1
• Weight: 5.19 lb

Product Identification

• UPC: 78200128827
• GTIN: 00782001288273
