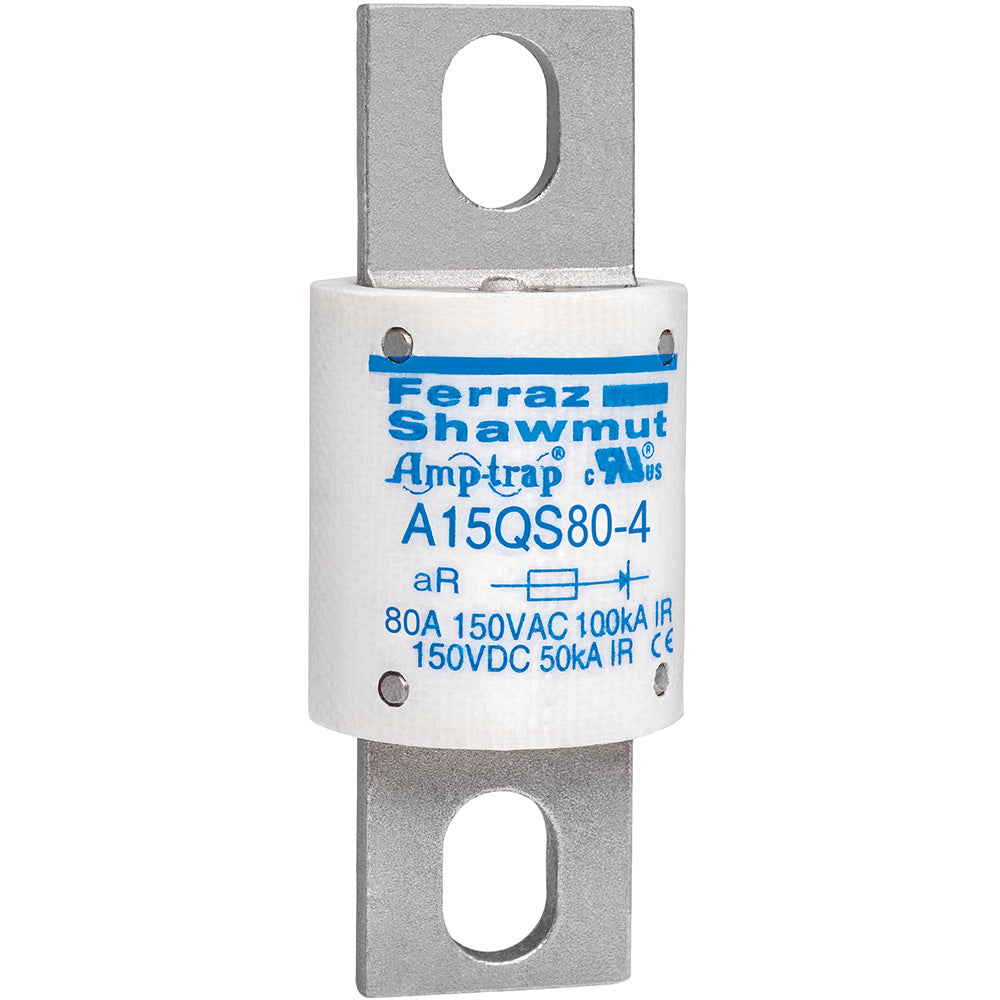

Ferraz Shawmut A15QS80-4 - Low Voltage Fuse 80A (100kA AIC @150V)

Ferraz Shawmut A15QS80-4 is a low-voltage current-limiting fuse from the Amp-Trap family, designed for circuit protection in industrial electrical systems. It features a 150V AC voltage rating and 80A current rating with a 100kA interrupting capacity at 150V for reliable short-circuit protection. The fuse has a compact cylindrical design with a 1.13-inch diameter and single-barrel construction using current-limiting technology for rapid fault interruption. It meets industry standards for low-voltage fuse protection in demanding environments. Typical applications include motor control centers, switchgear, and industrial power distribution systems where high fault current protection is required.

Key Features & Specifications

• Type: A15QS current-limiting fuse with single-barrel construction
• Voltage Rating: 150V AC
• Current Rating: 80A
• Dimensions: 1.13" diameter
• Standards: UL/CSA recognized
• Applications: Industrial power distribution, motor protection, switchgear
• AIC rating: 100kA@150V
• Family: Amp-Trap
• Barrels: 1

Product Identification

• UPC: 78200128824
• GTIN: 00782001288242
