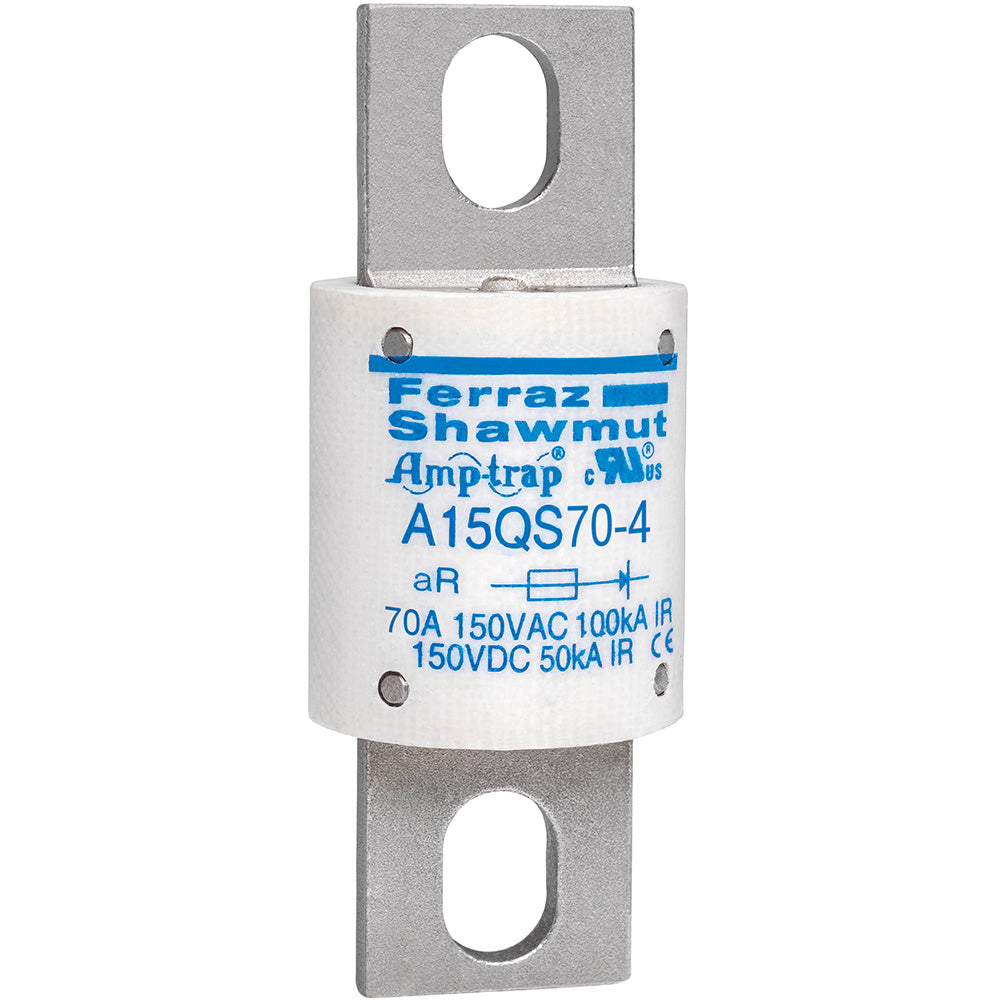

Ferraz Shawmut A15QS70-4 - Low Voltage Fuse 70A (100kA@150V Interrupting Capacity)

Ferraz Shawmut A15QS70-4 is a low-voltage current-limiting fuse designed for circuit protection in industrial electrical systems. It features a 150V AC voltage rating and 70A current rating, housed in a compact 1.13-inch diameter single-barrel design with a 0.17 lb weight. The fuse meets stringent industry standards with a 100kA interrupting capacity at 150V, providing reliable short-circuit protection. Its robust construction ensures performance in demanding environments like motor control centers, switchgear, and power distribution panels.

Key Features & Specifications

• Type: Current-limiting low-voltage fuse with quartz sand filler and silver element
• Voltage Rating: 150V AC
• Current Rating: 70A
• Dimensions: 1.13" diameter
• Standards: UL/CSA certified
• Applications: Industrial switchgear, motor protection, power distribution
• AIC rating: 100kA@150V
• Barrels: 1
• Weight: 0.17 lb

Product Identification

• UPC: 78200128821
• GTIN: 00782001288211
