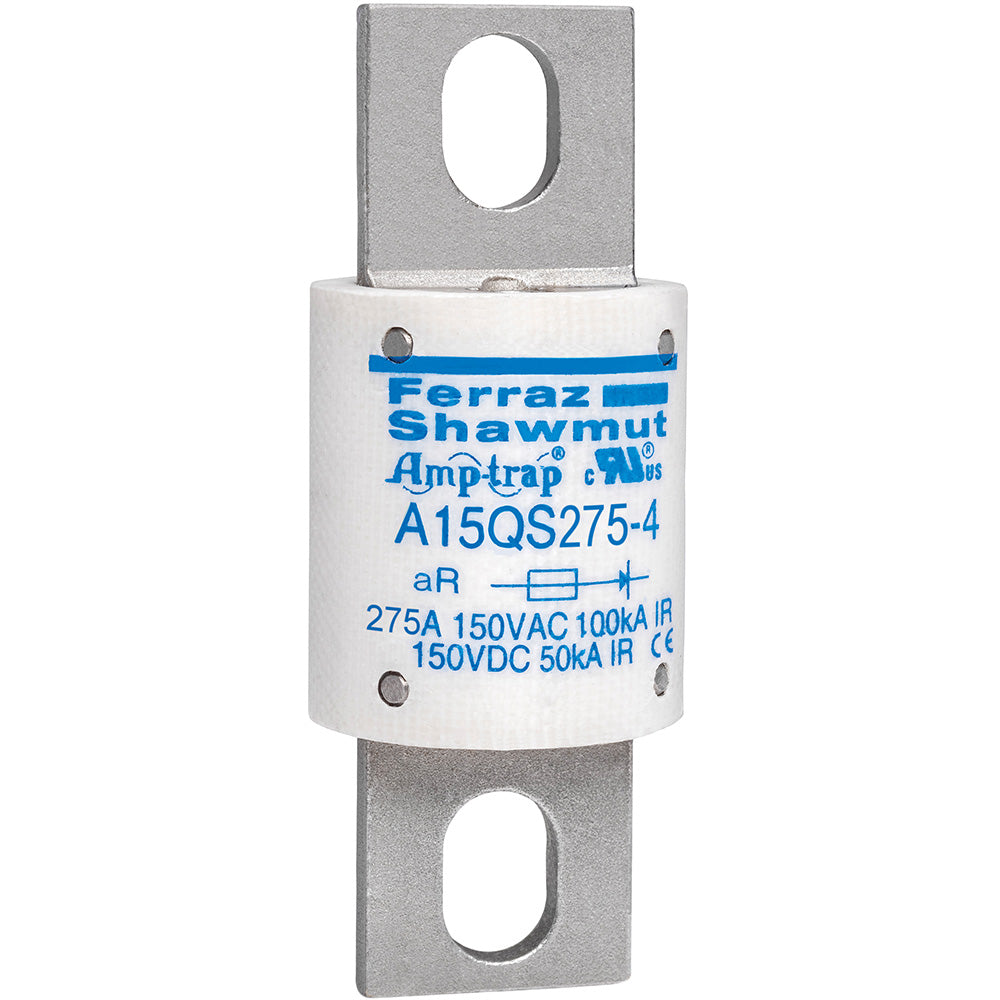

Ferraz Shawmut A15QS275-4 - Type A Fuse 275A (100kA@150V Bolt-In Protection)

Ferraz Shawmut A15QS275-4 is a low-voltage current-limiting fuse from the Amp-Trap family, designed for circuit protection in industrial power distribution systems. This Type A fuse features a 275A current rating and 150V voltage rating with a 100kA interrupting capacity at 150V, providing reliable short-circuit protection. The bolt-in connection fuse has a 1.13" diameter single-barrel construction for secure installation in compatible fuse holders. It meets industry standards for low-voltage protection devices and is commonly used in motor control centers, switchgear, and industrial control panels.

Key Features & Specifications

• Type: Current-limiting low-voltage fuse (Amp-Trap family, Type A)
• Voltage Rating: 150V AC
• Current Rating: 275A
• Diameter: 1.13 inches (28.7 mm)
• Connection: Bolt-in terminal
• AIC Rating: 100kA at 150V
• Construction: Single barrel design
• Standards: UL/CSA recognized
• Applications: Industrial power distribution, motor protection, switchgear

Product Identification

• UPC: 78200130580
• GTIN: 00782001305802
