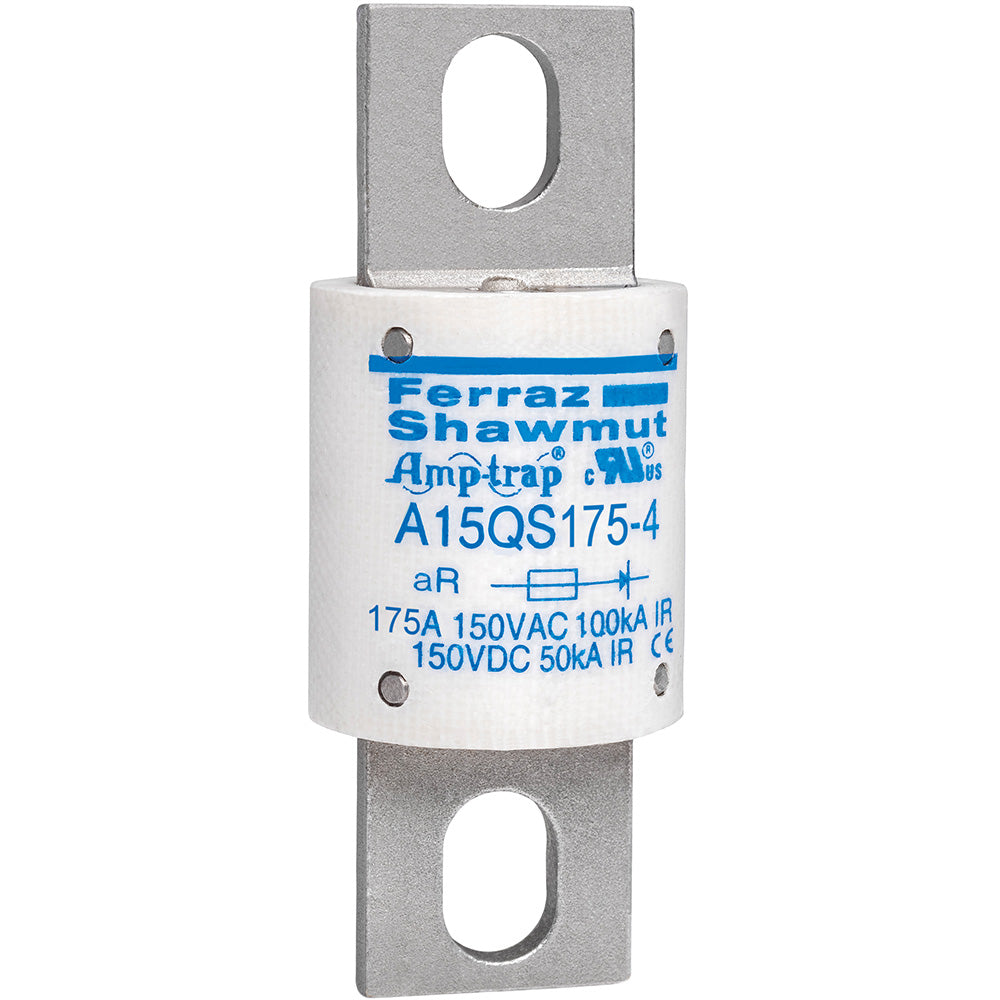

Ferraz Shawmut A15QS175-4 - Type A Fuse 175A (100kA@150V Interrupting Capacity)

Ferraz Shawmut A15QS175-4 is a low-voltage current-limiting fuse from the Amp-Trap family, designed for circuit protection in industrial electrical systems. This Type A fuse features a 175A current rating and 150V voltage rating with a bolt-in connection, providing 100kA interrupting capacity at 150V for reliable short-circuit protection. The single-barrel design measures 1.13" in diameter and utilizes current-limiting technology to protect equipment from damaging overloads. Compliant with industry standards for low-voltage fuses, it's commonly used in motor control centers, switchgear, and power distribution panels requiring high interrupting capacity.

Key Features & Specifications

• Type: Current-limiting low-voltage fuse (Amp-Trap family, Type A)
• Voltage Rating: 150V AC
• Current Rating: 175A
• Dimensions: 1.13" diameter
• Standards: Industry-standard low-voltage fuse compliance
• Applications: Motor control centers, switchgear, power distribution
• Connection: Bolt-in
• Barrels: 1
• AIC rating: 100kA@150V

Product Identification

• UPC: 78200130608
• GTIN: 00782001306083
