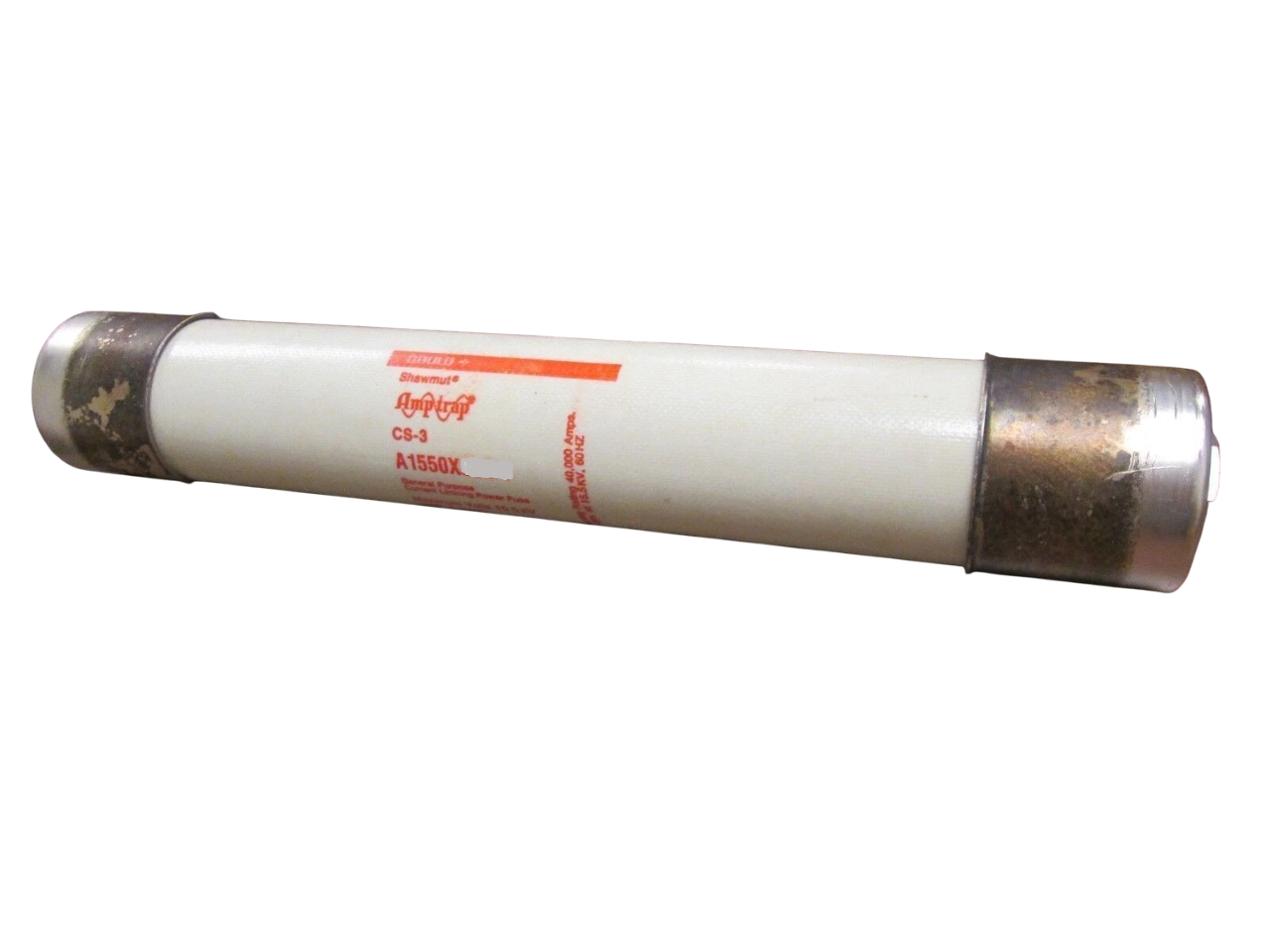

Ferraz Shawmut A1550X25E-1 - Medium Voltage Fuse 15.5kV/25A (50kA AIC, Class E)

Ferraz Shawmut A1550X25E-1 is a medium voltage current-limiting fuse designed for high-voltage circuit protection in industrial power systems. This CS-3 series fuse features a 15.5kV voltage rating and 25A current rating with a 50kA interrupting capacity at rated voltage, housed in a durable ferrule-connected single-barrel design. The Class E-rated fuse measures 3" in diameter with 15" clip centers and weighs 13 lb, constructed to meet stringent medium-voltage protection requirements. It complies with industry standards for high-voltage applications, including switchgear and transformer protection. Typical applications include motor starters, capacitor banks, and feeder circuits in utility and industrial power distribution systems.

Key Features & Specifications

• Type: Medium voltage current-limiting fuse, ferrule connection
• Voltage Rating: 15,500V AC
• Current Rating: 25A
• Dimensions: 3" diameter, 15" clip centers
• Standards: Class E rated
• Applications: Switchgear, transformers, motor starters
• AIC rating: [email protected]
• Connection: Ferrule
• Barrels: 1
• Weight: 13 lb
• Family: CS-3 Series
