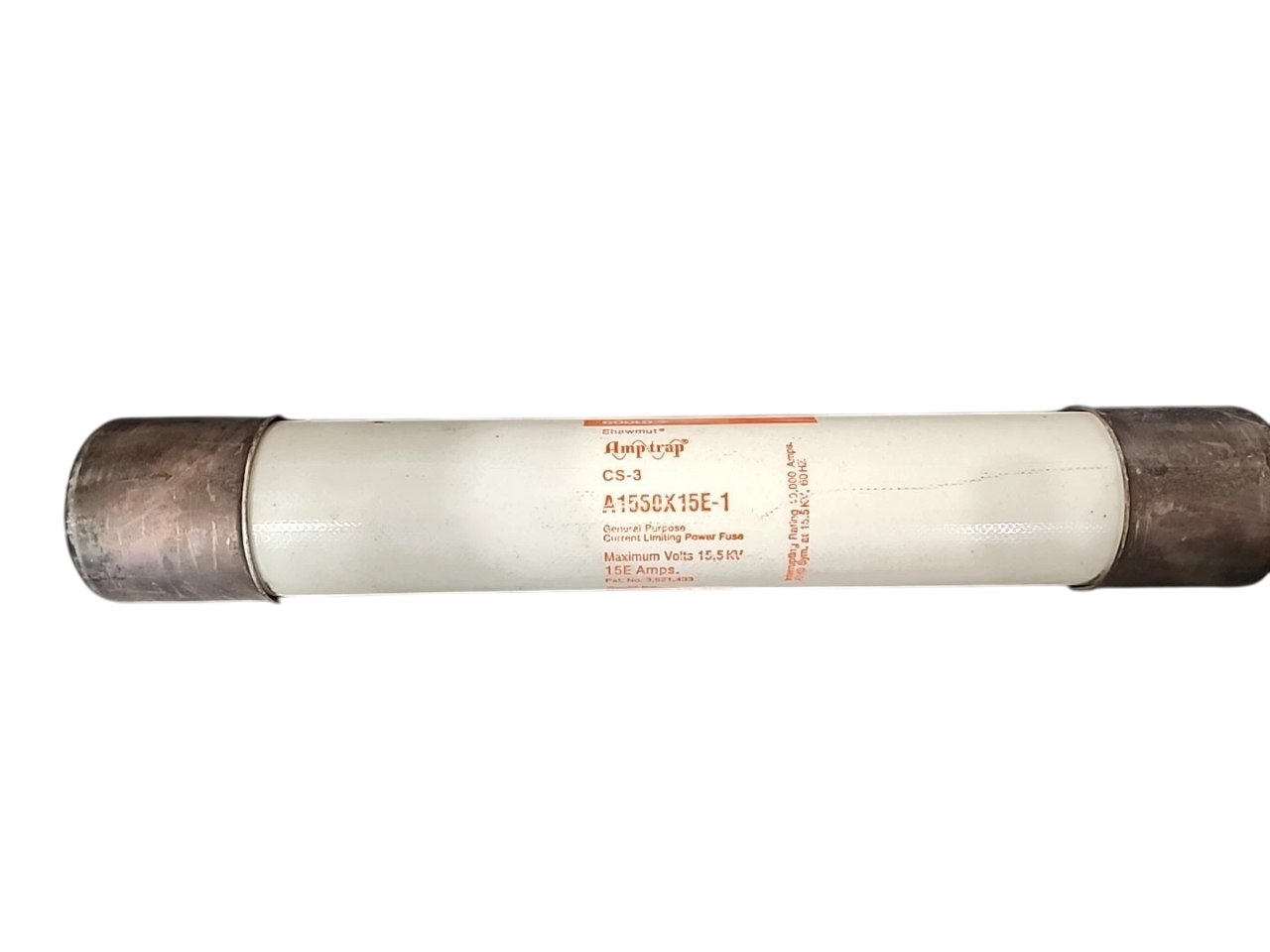

Ferraz Shawmut A1550X15E-1 - Medium Voltage Fuse 15.5kV/15A (50kA AIC)

Ferraz Shawmut A1550X15E-1 is a medium voltage current-limiting fuse designed for high-voltage circuit protection in industrial power systems. This CS-3 series fuse features a 15.5kV voltage rating and 15A current rating with a 50kA interrupting capacity at full voltage. The ferrule-connected single-barrel design has a 3" diameter and 15" clip center spacing, constructed to Class E standards with a robust 13 lb weight for durable performance. It complies with industry standards for medium voltage protection in demanding environments. Typical applications include transformer protection, motor circuits, and feeder protection in utility and industrial power distribution systems.

Key Features & Specifications

• Type: Medium voltage current-limiting fuse, ferrule connection
• Voltage Rating: 15,500V AC
• Current Rating: 15A
• Dimensions: 3" diameter, 15" clip center
• Standards: Class E rated
• Applications: Industrial power systems, transformer protection
• AIC rating: [email protected]
• Connection: Ferrule
• Barrels: 1
• Weight: 13 lb
• Family: CS-3 Series
