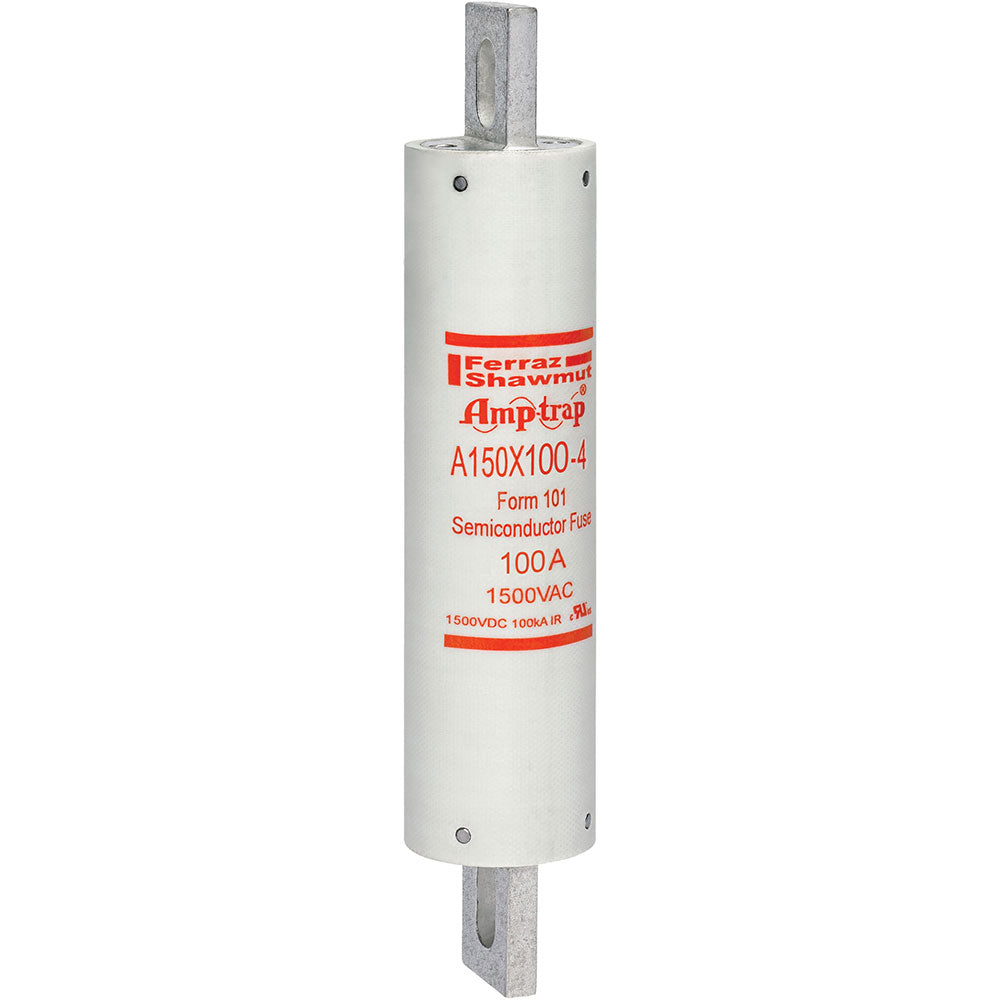

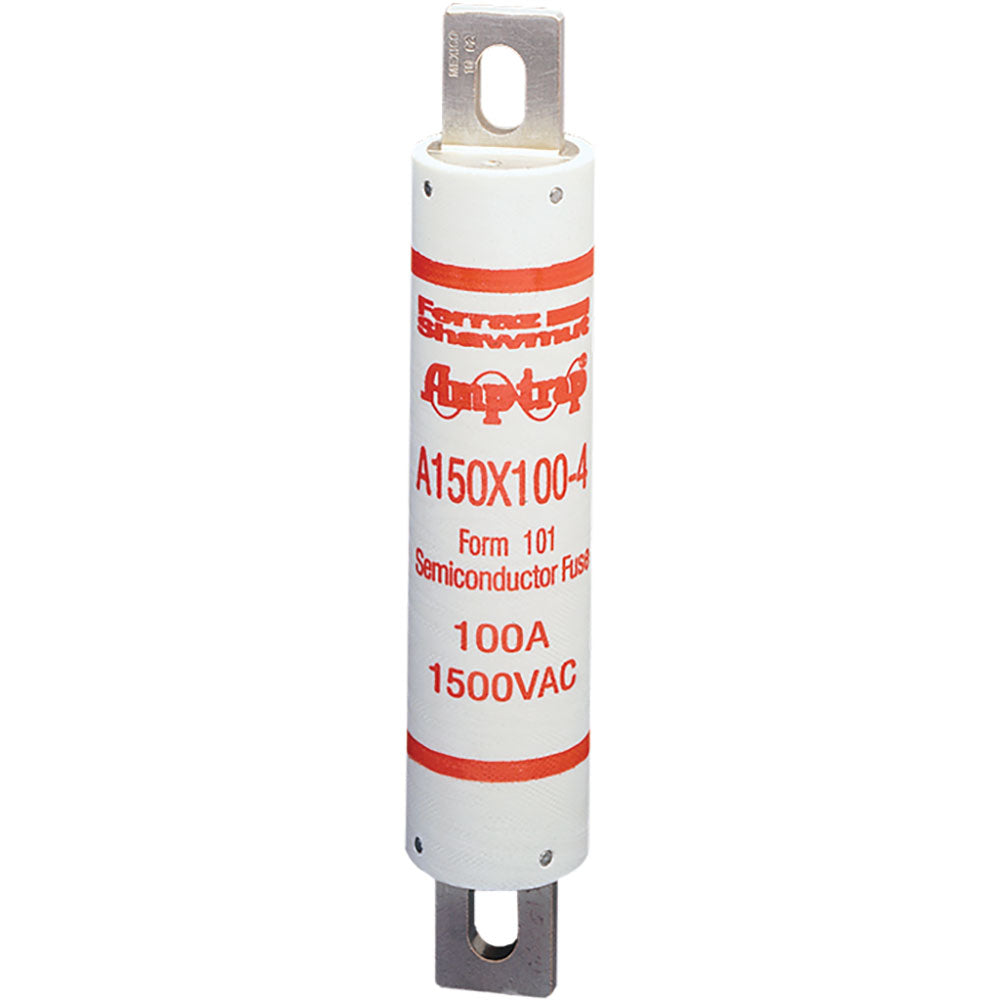

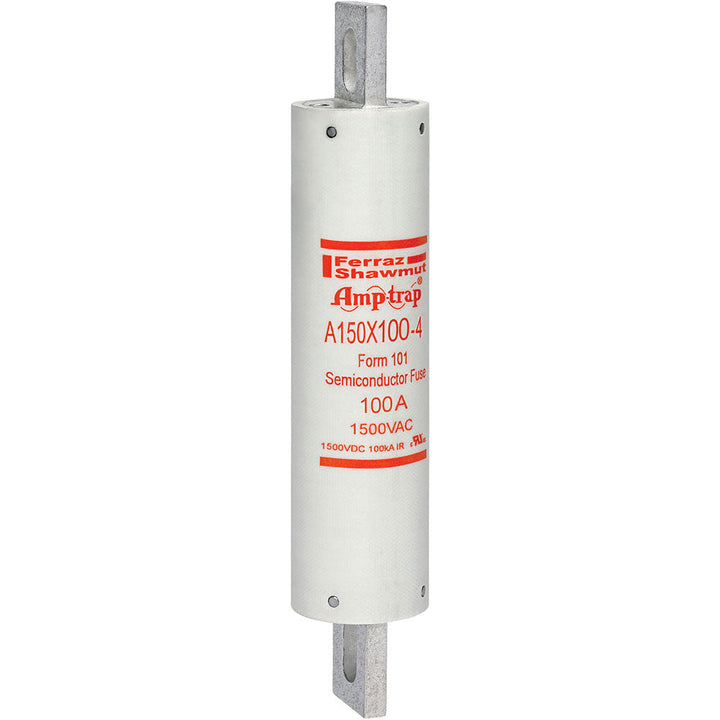

Cutler Hammer A150X100-4 - Amp-Trap Fuse 100A (1500V, 100kA AIC)

The Cutler Hammer A150X100-4 is a low voltage current-limiting fuse from the Amp-Trap family, engineered to provide reliable overcurrent and short-circuit protection for industrial electrical systems. It features a 100A current rating and a 1500V AC voltage rating, ensuring robust performance in demanding high-voltage applications. The fuse is constructed with a single-barrel design, measures 1.5 inches in diameter, and utilizes a bolt-in blade connection for secure installation. This component is UL certified and offers an impressive 100,000A interrupting rating at 1500V, complying with stringent industry safety standards. It is typically deployed in motor control centers, industrial control panels, and power distribution equipment where high fault current protection is critical.

Key Features & Specifications

• Type: Amp-Trap A150X, Low Voltage Current-Limiting Fuse, Single Barrel
• Voltage Rating: 1500V AC
• Current Rating: 100A
• Dimensions: 1.5 inch Diameter
• Standards: UL Certified
• Applications: Motor Control Centers, Industrial Control Panels, Power Distribution
• Connection: Bolt-In Blade
• AIC rating: 100kA @ 1500V
• Weight: 1 lb

Product Identification

• UPC: 782001949556
• GTIN: 00782001949556
