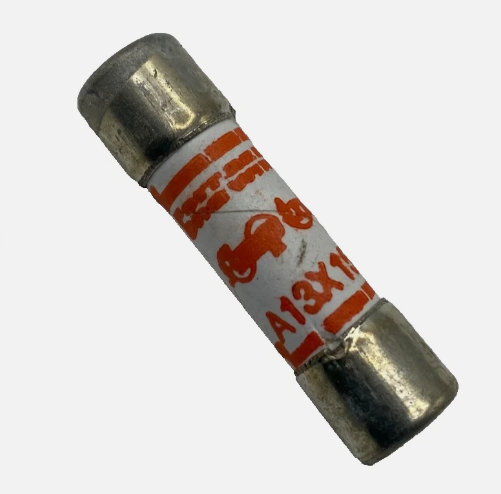

Cutler Hammer A13X15-2 - Amp-Trap® Class Fuse 15A (Very Fast-Acting, 8kA AIC)

The Cutler Hammer A13X15-2 is a low voltage, very fast-acting (VFA) fuse designed to provide superior circuit protection against short-circuits and overloads in sensitive electronic equipment. It features a 15A current rating and a 130V AC voltage rating, with a high 8kA interrupting capacity at its rated voltage to safely clear fault currents. The fuse is constructed with a single-barrel design and ferrule connections, housed in a compact cylindrical body with a 0.41-inch diameter and a weight of 5.19 lb. This Amp-Trap® class fuse complies with industry standards for reliable performance in demanding environments. It is typically applied in industrial control circuits, programmable logic controllers (PLCs), and other electronic loads where fast-acting, current-limiting protection is critical.

Key Features & Specifications

• Type: Amp-Trap® Class A13X, Very Fast-Acting (VFA), Single Barrel, Current-Limiting Fuse
• Voltage Rating: 130V AC
• Current Rating: 15A
• Dimensions: 0.41-inch Diameter
• Standards: Industry Standard for Current-Limiting Fuses
• Applications: Protection of Sensitive Electronic Equipment, Industrial Control Circuits, PLCs
• AIC rating: 8kA @ 130V AC
• Connection: Ferrule
• Barrels: 1
• Velocity: VFA - Very Fast Acting
• Weight: 5.19 lb
• Item Subcategory: Low Voltage
• Family: Amp-Trap
