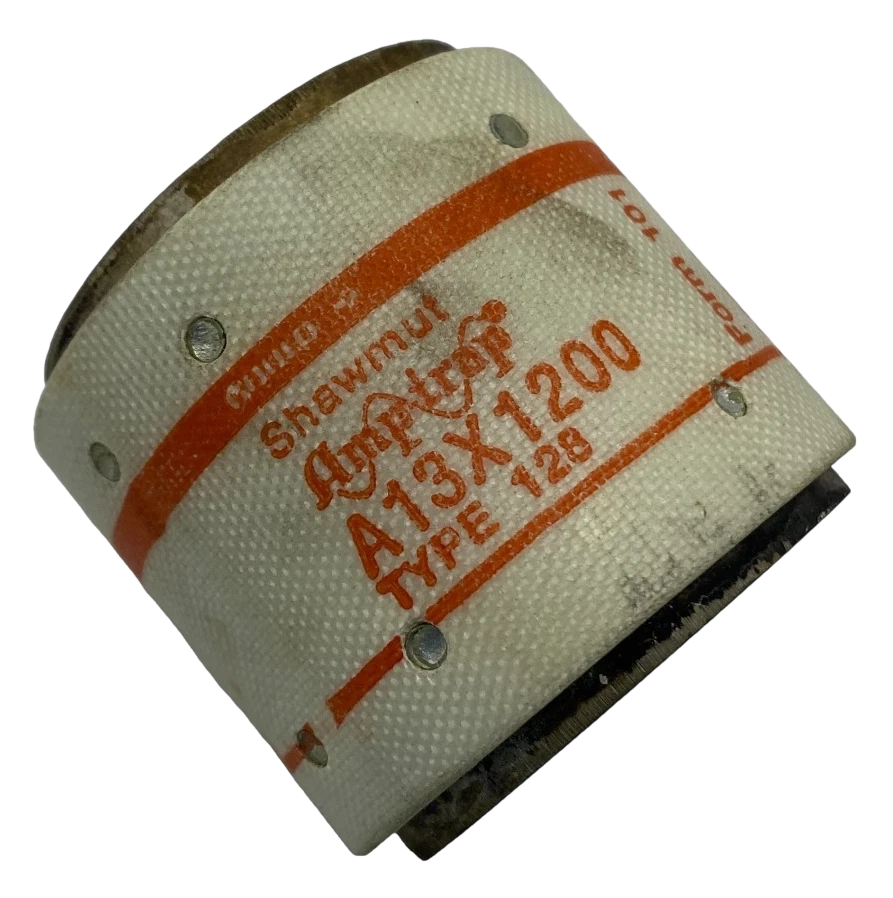

Ferraz Shawmut A13X1200-128 - Low Voltage Fuse 1200A@130V (8kA AIC)

Ferraz Shawmut A13X1200-128 is a low-voltage fuse designed for high-current circuit protection in industrial applications. This Amp-Trap series fuse features a 130V AC voltage rating and 1200A current rating, with a very fast-acting (VFA) response time for critical fault interruption. The compact 2-inch diameter bolt-in design utilizes a single-barrel construction with a hook-puck connection for secure mounting. It meets industry standards with an 8kA@130Vac AIC rating, providing reliable short-circuit protection. Typical applications include motor control centers, switchgear, and power distribution systems requiring robust overcurrent protection.

Key Features & Specifications

• Type: A13X low-voltage current-limiting fuse
• Voltage Rating: 130V AC
• Current Rating: 1200A
• Dimensions: 2" diameter
• Standards: UL/CSA recognized
• Applications: Industrial power distribution, MCCs, switchgear
• AIC rating: 8kA@130Vac
• Connection: Hook puck bolt-in
• Barrels: 1
• Velocity: VFA (Very Fast Acting)
• Weight: 2 lb

Product Identification

• UPC: 78200194160
• GTIN: 00782001941604
