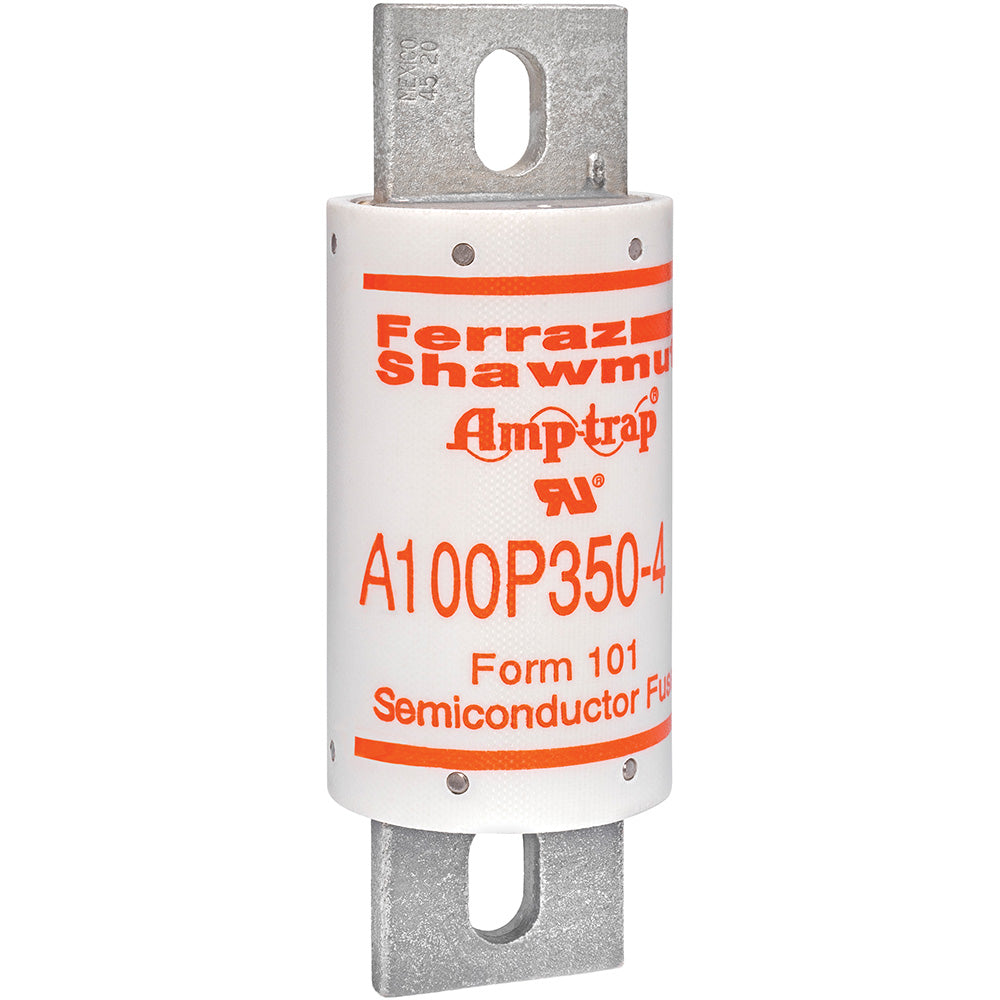

Cutler Hammer A100P350-4 - Low Voltage Fuse 350A (100kA@1000V AIC Rating)

Cutler Hammer A100P350-4 is a low voltage fuse designed for providing reliable overcurrent protection in industrial electrical systems. It features a 350A current rating and a 1000V voltage rating, capable of interrupting up to 100kA of fault current. The fuse is constructed with a single-barrel design, measures 2 inches in diameter, and weighs 1 lb, ensuring robust physical integrity. It complies with UL certification standards, guaranteeing adherence to rigorous safety and performance requirements. This fuse is typically applied in industrial power distribution, motor protection circuits, and panelboards where high interrupting capacity is critical.

Key Features & Specifications

• Type: Low Voltage Fuse, Single Barrel
• Voltage Rating: 1000V AC
• Current Rating: 350A
• Dimensions: 2 inch Diameter
• Standards: UL Certified
• Applications: Industrial Power Distribution, Motor Protection, Panelboards
• AIC rating: 100kA@1000V
• Certification: UL
• Barrels: 1
• Weight: 1 lb

Product Identification

• UPC: 78200194910
• GTIN: 00782001949105
