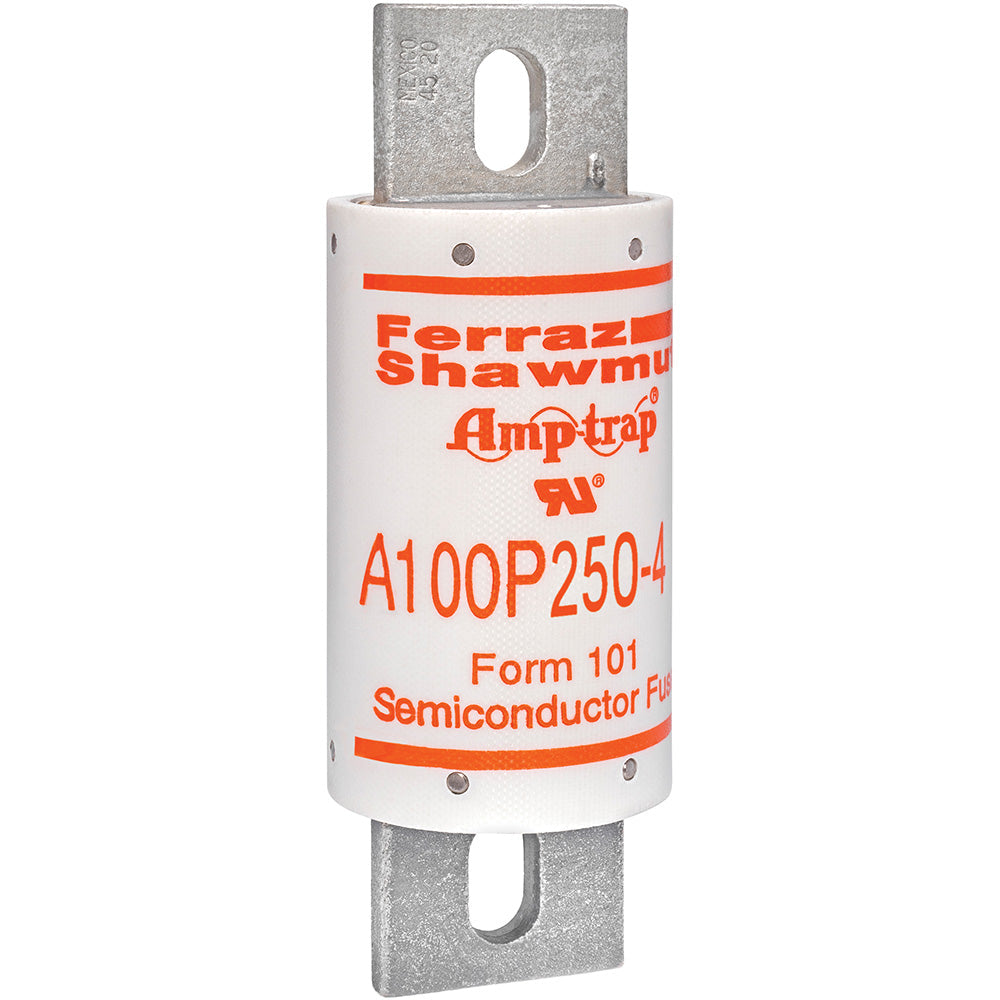

Cutler Hammer A100P250-4 - Amp-Trap Current-Limiting Fuse 250A (100kA AIC @ 1000V)

The Cutler Hammer A100P250-4 is a low voltage current-limiting fuse from the Amp-Trap family, engineered to provide superior short-circuit protection for electrical systems. It features a 250A current rating and a 1000V AC voltage rating, with an impressive 100kA interrupting capacity at its rated voltage. The fuse is constructed as a single-barrel unit with a 2-inch diameter and a robust design that ensures reliable operation under demanding conditions. This fuse complies with industry standards for high-performance circuit protection and is typically applied in industrial power distribution, motor branch circuits, and feeder protection applications where high fault current interruption is critical.

Key Features & Specifications

• Type: Amp-Trap A100P current-limiting fuse, single barrel construction
• Voltage Rating: 1000V AC
• Current Rating: 250A
• Dimensions: 2-inch diameter
• Standards: Industry standard for high-performance circuit protection
• Applications: Industrial power distribution, motor branch circuits, feeder protection
• AIC rating: 100kA@1000V
• Barrels: 1
• Weight: 1 lb
• Family: Amp-Trap
• Item Subcategory: Low Voltage Fuse

Product Identification

• UPC: 78200194834
• GTIN: 00782001948344
