Cutler Hammer A100P225-4 - Amp-Trap Fuse 225A (100kA AIC @ 1000V)

The Cutler Hammer A100P225-4 is a low voltage fuse from the Amp-Trap family designed to provide reliable overcurrent protection in demanding electrical systems. It features a 225A current rating and a 1000V AC voltage rating, with an impressive 100kA interrupting capacity at its rated voltage to safely clear high-level faults. Constructed as a single-barrel fuse with a 2-inch diameter, this UL-certified component is engineered for industrial applications including motor control centers, distribution panels, and power distribution systems where robust circuit protection is required.

Key Features & Specifications

• Type: Amp-Trap A100P current-limiting fuse, single barrel construction
• Voltage Rating: 1000V AC
• Current Rating: 225A
• Dimensions: 2-inch diameter
• Standards: UL Certified
• Applications: Motor control centers, distribution panels, power distribution systems
• AIC rating: 100kA @ 1000V
• Barrels: 1
• Weight: 1 lb
• Certification: UL

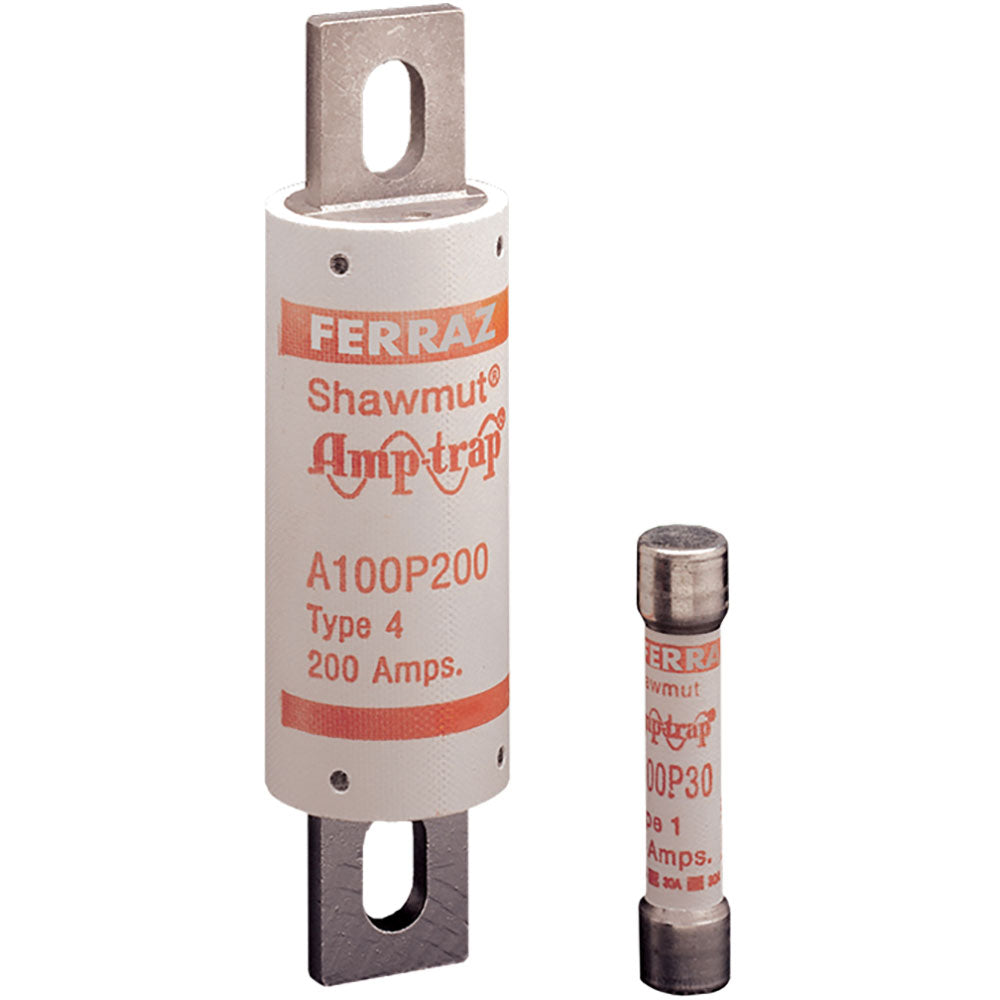

• Family: Amp-Trap

Product Identification

• UPC: 78200194844
• GTIN: 00782001948443
